Oldsmobile Cutlass Ciera Ignition Module Guide (1987-1996)
Having trouble with your 1987-1996 Oldsmobile Cutlass Ciera stalling or not starting? Your ignition module might be the culprit.
- A common failure symptom is the engine stalling when hot and not restarting until it has cooled down.
- A complete lack of spark, leading to a crank-no-start condition, is a primary indicator of a failed module.
- Always apply the included heat sink compound to the new module to prevent premature failure.
- Aftermarket brands like Standard Motor Products are a common and viable replacement for this vehicle.
Is Your Cutlass Ciera Stalling When Hot?
One of the most common and frustrating problems for 1987-1996 Oldsmobile Cutlass Ciera owners is an engine that cranks but won't start, or stalls, especially after it has warmed up. You might drive to the store without issue, but when you come back to the car 20 minutes later, it refuses to start. After it cools down for an hour or two, it might start up again. This classic sign of heat-related failure often points directly to a faulty ignition control module (ICM). The electronics inside the module break down when they get hot, failing to send the signal to create spark.
🎬 See this walkthrough on replacing a GM ignition moduleCritical Failure Symptoms
A failing ignition module can leave you stranded. Key symptoms include the engine dying and not restarting until it cools, intermittent stalling, a misfire that causes rough running, or a complete no-start condition where the engine cranks but never fires.
Choosing a New Aftermarket Ignition Module
For a vehicle of this age, going to a dealership for a genuine GM part is often not a practical or even possible option. Aftermarket parts are the most common solution. Brands like Standard Motor Products (SMP) and other store brands are widely available. Forum discussions among GM owners suggest that while original ACDelco parts were once the gold standard, the quality of modern ACDelco and various aftermarket brands can be comparable, with many parts potentially coming from the same factories. The key is to choose a quality replacement that offers a good warranty.
Don't Forget the Heat Sink Compound!
The ignition module generates a lot of heat. It must be mounted with a special thermal grease or heat sink compound between the module and its mounting surface (often the distributor or a dedicated bracket). This compound helps transfer heat away from the module. Skipping this step will cause the new module to overheat and fail very quickly. Most new modules come with a small packet of this grease—be sure to use it.
Installation Overview
On the Cutlass Ciera, depending on your engine (2.5L, 3.1L, 3.3L, etc.), the ignition module is located under the ignition coil pack assembly. The job is straightforward for a DIY mechanic with basic tools.
- Disconnect the negative battery terminal.
- Locate the coil pack and ignition module assembly.
- Unplug the electrical connectors from the module and coils.
- Unbolt and remove the coil packs from the top of the module.
- Unbolt the ignition module from its mounting bracket.
- Clean the mounting surface thoroughly.
- Apply the new heat sink compound evenly to the back of the new module.
- Install the new module, reattach the coils and connectors, and reconnect the battery.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Ignition Module | $76.81 |
| Shop Labor for Installation | $80 - $120 |
Frequently Asked Questions
Will a bad ignition module cause a Check Engine Light?
Not always, especially on the earlier models in this year range which have simpler OBD-I computer systems. While a severe misfire caused by the module could trigger a code, it's common for the module to fail without illuminating the Check Engine Light.
Can I test my old ignition module?
Yes, many auto parts stores can test ignition modules. However, the most common failure mode is heat-related. A module might test 'good' when it's cold but still be faulty when it heats up in the engine bay. Diagnosing it often involves checking for spark when the engine is in its no-start state.
🎬 Watch: How to diagnose a GM ignition system failureWhat's the difference between an ignition module and an ignition coil?
The ignition module is the 'brain' that tells the coil when to fire. The ignition coil is a transformer that takes 12-volt power and steps it up to the high voltage needed to create a spark at the spark plug. On your Cutlass Ciera, they are separate parts but are mounted together.

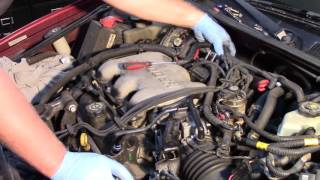

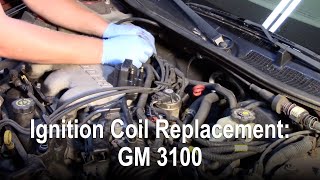

🎬 Watch: How to replace the ignition coils on a GM 3100Are there any recalls for the Cutlass Ciera ignition module?
No, there are no specific recalls issued by the NHTSA for the ignition control module on the 1987-1996 Oldsmobile Cutlass Ciera.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10469470 10475225 19179581 D1977A
The ignition module for the Cutlass Ciera is part of the Direct Ignition System (DIS), located under the coil packs. It uses signals from the crankshaft position sensor to control spark timing. Different modules exist for various engine sizes (e.g., 4-cylinder vs. V6), so ensure you have the correct part for your specific engine.
