Chevrolet Impala 1987-1997 Engine Water Pump Replacement Guide
Keep your classic Impala's engine cool and reliable by understanding its unique water pump needs.
- For 1994-1996 Impala SS models, a leaking water pump is a critical failure that can destroy the Optispark distributor below it.
- The most reliable sign of a failing pump is a coolant leak from the weep hole located on the pump housing.
- High-quality aftermarket brands like ACDelco and Gates are trusted choices for this vehicle.
- When replacing the pump, it is wise to also replace the thermostat, hoses, and use new gaskets and thread sealant to ensure a leak-free repair.
Is Your Impala's Water Pump Failing?
A failing water pump on the 1987-1997 Impala, especially the 1994-1996 SS models, gives clear warning signs. Recognizing them early can save you from engine damage and a much more expensive repair. The most common sign of failure is a coolant leak from the pump's 'weep hole'. This small hole is designed to leak when the internal seals go bad. On an LT1 engine, this is critical because the pump is located above the Optispark distributor, and a coolant leak can destroy this expensive ignition component.
Key Symptoms to Watch For:
🎬 Watch: 7 common symptoms of a bad water pump and how to diagnose them.- Coolant Leaks: Puddles of green or orange coolant under the front, center of your engine are a major red flag. For LT1 models, check for drips coming from the bottom of the water pump assembly.
- Engine Overheating: If your temperature gauge climbs into the red, the water pump may not be circulating coolant effectively.
- Grinding or Whining Noise: A rough, grinding sound from the front of the engine can indicate the pump's internal bearings are worn out.
- Wobbly Pulley (for non-LT1 models): If the water pump is belt-driven, the pulley on the front may feel loose or wobble when the engine is off. This points to a failed bearing.
LT1 Engine Warning
For 1994-1996 Impala SS owners, a leaking water pump is a critical issue. Coolant dripping from the weep hole can and will damage the Optispark distributor located directly below it, leading to a no-start condition and a significantly more complex and costly repair. Address any water pump leak immediately.
🎬 See this walkthrough on removing the LT1 water pump and Optispark.Choosing the Right Aftermarket Water Pump
When replacing the water pump, you have several aftermarket options. Quality can vary, so it's important to choose a brand known for reliability. For a classic vehicle like the Impala, sticking with reputable manufacturers is a smart investment.
Brand Quality Tiers:
- Premium Tier (ACDelco, Gates): ACDelco is the original equipment (OE) supplier for GM, and their parts are often considered the benchmark for fit and function. Gates is a highly respected name in cooling system components, and their pumps are known for quality and often come with a lifetime warranty. Many owners trust these brands for longevity.
- Standard Tier (GMB, US Motor Works): Brands like GMB and US Motor Works are popular aftermarket choices that offer a good balance of price and quality. They are designed to meet or exceed original specifications and are a reliable option for daily drivers.
- Performance Tier (Proform, PRW): Brands like Proform or Weiand may offer high-flow aluminum water pumps. These can provide improved cooling for modified or high-performance engines but are often not necessary for a stock vehicle.
Pro Tip: Replace More Than Just the Pump
While you have the cooling system drained and the water pump removed, it's a perfect time to replace other related parts. Consider installing a new thermostat, radiator hoses, and the water pump drive shaft coupling (for LT1 models). Using new gaskets and sealant on the bolt threads is also essential to prevent leaks.
What to Expect for Cost
The cost for a new aftermarket water pump can vary based on the brand and where you buy it. The replacement job itself is more complex on the LT1 engine due to its location and gear-driven design.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $131.60 - $202.58 |
| Shop Labor (varies by location) | $268 - $394 |
| Total Professional Replacement | $799 - $1,191 (including higher-priced OEM parts) |
Frequently Asked Questions
Is an aftermarket water pump as good as an OEM one for my Impala?
For the 1987-1997 Impala, high-quality aftermarket brands like ACDelco (Professional line) and Gates are widely considered to be as good as, or even exceed, the original factory part. Some owners prefer the peace of mind of an ACDelco part because it's the original GM brand, but forum discussions show that the quality of many aftermarket parts is a gamble, with even new parts sometimes failing early. Choosing a top-tier aftermarket brand is a safe and cost-effective choice.
How difficult is it to replace the water pump on a 1994-1996 Impala SS?

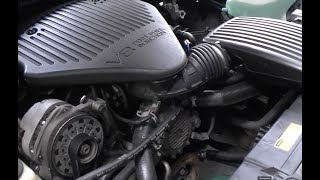

It is a moderately difficult job. 🎬 Watch a complete water pump installation on a stock 1996 Impala SS. Unlike most cars, the LT1 water pump is driven by a gear connected to the camshaft, not an external belt. The replacement requires draining the coolant, removing the air intake, serpentine belt, and several accessories like the air pump to gain access. It's crucial to use sealant on the bolt threads and to properly seal the gaskets to prevent leaks that could damage the Optispark distributor below.
Do I need a special tool to replace the water pump?
For the most part, you can do the job with standard mechanic's tools like a socket set, wrenches, and a drain pan. However, a tool to remove hose clamps is very helpful. For the LT1 engine, you will also need a special tool if you plan to replace the water pump shaft seal at the same time. It is also highly recommended to use a torque wrench to tighten the bolts to the correct specification to avoid leaks.
Should I use green or orange coolant in my Impala?
For this generation of Impala, especially the LT1 models, the recommended coolant is the orange-colored DEX-COOL. However, many owners have switched to traditional green coolant. The most important thing is to not mix the two types. If you are unsure what is in your system, it is best to completely flush the system before adding new coolant.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12523502 88926215 251-731 252-700

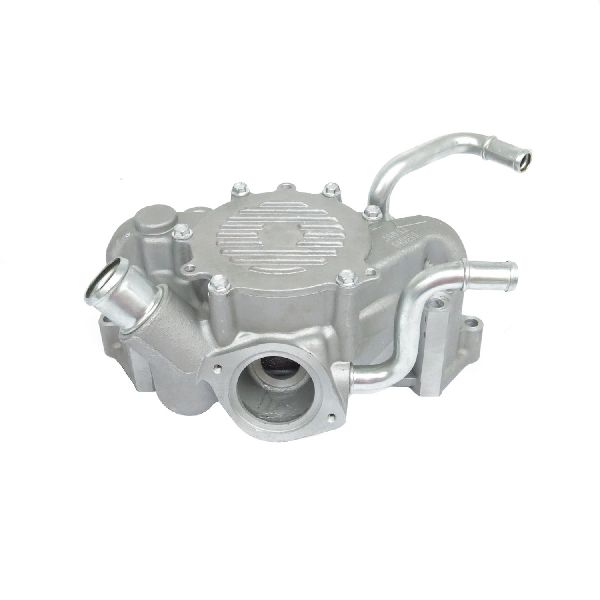

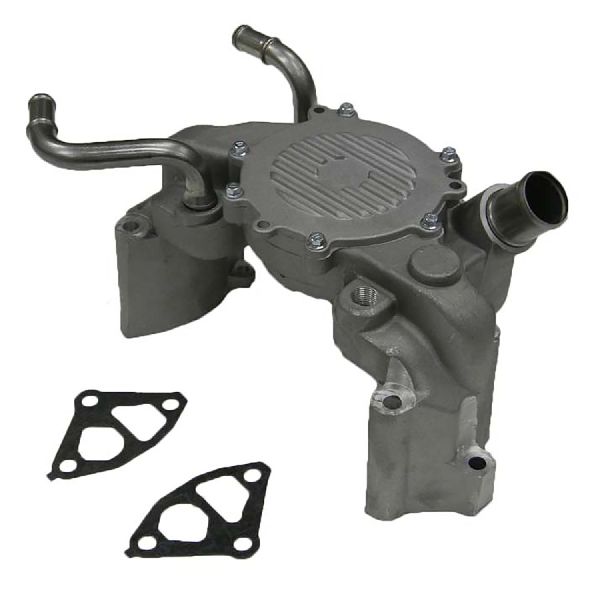

For the 1994-1996 Impala SS, the water pump is gear-driven by the camshaft and features a reverse rotation impeller. It mounts to the front of the engine block and has a unique drive coupling that connects it to the camshaft timing gear. The housing is typically aluminum with a steel impeller.
