Universal Joint Replacement Guide for the 1987-2000 Ford F-250
That clunking noise or vibration from under your truck could be a failing U-joint; here's how to choose the right replacement.
- Confirm your F-250's specific U-joint size (e.g., 1350, 1410) before ordering, as it varies by configuration.
- Dana Spicer is the most recommended brand for reliability and is often the original equipment part.
- Symptoms like clunking, vibrations, and squeaking should be addressed immediately to prevent a complete driveshaft failure.
- Replacing front axle U-joints on 4x4 models is much more labor-intensive and costly than replacing driveshaft U-joints.
Is Your F-250's U-Joint Failing? Common Symptoms
A bad U-joint gives you a few warning signs before it fails completely. Ignoring these can lead to the driveshaft separating from the truck, causing a loss of power and major damage. Listen and feel for these symptoms:
- Clunking Noise: A loud "clunk" or "clank" when you shift into Drive or Reverse is a classic sign. This happens because the worn joint allows for excess play in the driveshaft.
- Vibrations at Speed: You might feel a vibration throughout the truck, especially at highway speeds. This is caused by the driveshaft spinning out of balance due to a worn U-joint.
- Squeaking or Chirping: A rhythmic squeak that changes with your speed often points to a U-joint that has lost its grease and is running dry.
- Binding in 4x4 (Front Axle U-Joints): On 4x4 models, a seized front axle U-joint can make steering very difficult or cause a repeating clunk when 4WD is engaged.
Don't Ignore a Failing U-Joint
A complete U-joint failure is serious. The driveshaft can drop while you're driving, potentially digging into the pavement and causing you to lose control, or it can damage other parts under your truck like the fuel tank or transmission housing. If you suspect a bad U-joint, get it inspected immediately.
🎬 Watch: The most accurate way to check your driveshaft U-joints.Choosing the Right Aftermarket U-Joint
For the 1987-2000 F-250, several excellent aftermarket U-joint options are available that meet or exceed original quality. The most important factor is choosing the correct size for your specific truck configuration (2WD/4WD, engine, and axle). Always measure your old joints or confirm part numbers before ordering.
Brand Quality Tiers
Based on owner experiences and mechanic recommendations, aftermarket brands for these trucks generally fall into these tiers:
- Top Tier (OEM Quality or Better): Dana Spicer is widely considered the gold standard and original equipment manufacturer for many Ford trucks. They are known for durability and precise fitment. Many owners will use nothing else. Spicer offers both greasable and non-greasable (sealed) versions.
- Mid-Tier (Reliable Aftermarket): Brands like SKF and Moog offer good quality replacements. Historically, Moog was a top choice, but some users report a decline in consistency, so it's wise to inspect the part upon arrival. SKF is a well-respected bearing manufacturer with a solid reputation.
- Economy Tier: Brands like GMB offer a budget-friendly option. While functional, they may not have the same longevity as the premium brands, especially under heavy towing or off-road use.
Greasable vs. Non-Greasable U-Joints
Non-greasable (sealed) U-joints, like many from Spicer's SPL line, are often stronger because the cross isn't hollowed out for grease channels. They are considered maintenance-free. Greasable U-joints can have a long life if serviced regularly, as you can flush out old grease and contaminants. However, the grease fitting itself can be a weak point, and forgetting to grease them leads to premature failure.
How Many U-Joints Does My F-250 Have?
The number varies by configuration:
- 2WD Models: Typically have two or three U-joints on the rear driveshaft, especially if it's a two-piece shaft with a center support bearing.
- 4WD Models: Have U-joints on the rear driveshaft (two or three), the front driveshaft (two), and one in each front axle shaft at the steering knuckles (two). This could be a total of six or seven U-joints.
Cost to Replace Ford F-250 U-Joints
The cost depends on how many joints are being replaced and the labor involved. Front axle U-joints are significantly more labor-intensive 🎬 Watch: How to replace front axle U-joints and seals. than driveshaft U-joints.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Part Only) | $18.90 - $237.75 |
| Shop Labor (Per Driveshaft U-Joint) | $120 - $240 |
| Shop Labor (Per Front Axle U-Joint) | $200 - $500+ |
| Total Replacement (1-2 Driveshaft U-Joints) | $240 - $550+ |
Frequently Asked Questions
Were there any recalls for 1987-2000 F-250 U-joints?
No specific U-joint or driveshaft recalls were found for the 1987-2000 Ford F-250 model years in NHTSA searches. Recalls found were for much newer model years.
Can I replace just one bad U-joint?
Yes, but it's often recommended to replace them in pairs on a driveshaft. If one has failed due to age and mileage, the other is likely not far behind. This is especially true if you are paying for labor, as it saves you a second trip to the shop.
Is replacing a U-joint a DIY job?
It can be, but it requires specific tools. You'll need a good socket set, a heavy hammer, and either a bench vise, a C-clamp style ball joint press, or a dedicated U-joint press to remove the old joint and install the new one. It can be a difficult job without a press, as the caps are a tight fit. Cleaning the yoke bores thoroughly before installing the new joint is critical.
What is the most common mistake when ordering F-250 U-joints?
The most common mistake is ordering the wrong size. Ford used different U-joint series (like 1350 or 1410) depending on the year, engine, transmission, and axle combination. It is essential to measure your existing U-joint's cap diameter and width or find a reliable part number before purchasing.

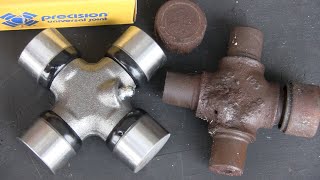

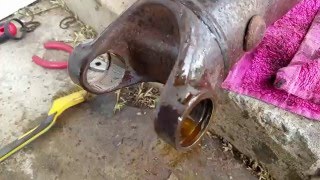

Helpful Videos
Technical Specifications
Common U-joint series for this generation F-250 include 1330, 1350, and 1410. Sizes vary based on 2WD vs 4WD, front vs rear driveshaft, axle shafts, and specific drivetrain options. Measurement of cap diameter and overall width is the most reliable way to identify the correct part.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
