Jeep Cherokee (1987-2001) Vehicle Speed Sensor: The Definitive Guide
Fix your XJ's erratic speedometer and poor shifting by understanding this critical sensor.
- A faulty VSS is a primary cause of erratic speedometers and poor automatic transmission shifting in the XJ.
- Replacement is a simple, DIY-friendly job requiring basic tools and less than an hour.
- You must transfer the plastic speedometer gear from the old sensor to the new one.
- A VSS failure will often trigger the P0500 Check Engine Light code.
Is Your Cherokee's Speedometer Acting Up?
If you own a 1987-2001 Jeep Cherokee XJ, a bouncing speedometer needle or strange shifting from your automatic transmission are common issues. Often, the culprit is a failing Vehicle Speed Sensor, also known as a VSS. This sensor is located on the tail housing of the transfer case (for 4WD models) or transmission (for 2WD models). It reads the rotation of the output shaft and translates it into an electronic signal for the rest of the vehicle. This guide will help you understand the symptoms of a bad VSS, choose the right aftermarket replacement, and know what to expect during the repair.
Early vs. Late Models
Cherokee models from 1987-1990 used a mechanical speedometer cable that can also cause needle bounce when it needs lubrication. Models from 1991-2001 use a fully electronic VSS. This guide focuses on the electronic VSS found on most XJs on the road today.
Symptoms of a Failing Vehicle Speed Sensor
A bad VSS can cause several noticeable problems. Because it provides data to multiple systems, a single failure can have a cascading effect. Here are the most common signs:
- Erratic or Dead Speedometer: The most obvious symptom is a speedometer that jumps around, reads incorrectly, or is stuck at zero.
- Poor Automatic Transmission Shifting: The transmission control module (TCM) uses VSS data to decide when to shift gears. A bad signal can cause harsh, delayed, or incorrect shifting.
- Cruise Control Not Working: The cruise control system relies on a steady speed signal. If the signal is lost or erratic, the cruise control will not engage or will disengage unexpectedly.
- Check Engine Light: A malfunctioning VSS can trigger a Check Engine Light. The most common trouble code associated with this is P0500 (Vehicle Speed Sensor Malfunction). 🎬 Watch this video to understand the P0500 code and fix. In some cases, you may also see a P0720 for the output speed sensor.
Choosing the Right Aftermarket VSS
When replacing the VSS on an older vehicle like the XJ, you have several aftermarket options. Genuine Mopar parts can be difficult to find and expensive. Aftermarket brands offer a wide range of quality and price.
Premium Aftermarket (Recommended):
- Standard Ignition (SMP): Often considered a top-tier aftermarket brand, Standard Ignition parts are known for their reliability and are a solid choice for this repair.
- NGK/NTK: While more known for ignition components, NGK (and its sensor brand NTK) produces high-quality sensors that are often equivalent to OEM standards.
Standard/Value Aftermarket:
- Dorman: Dorman offers a wide variety of replacement parts, including the VSS for the Cherokee. While generally a budget-friendly option, quality can sometimes be inconsistent according to owner forums.
- Crown Automotive & Omix-Ada: These brands specialize in Jeep replacement parts. They are a popular choice for budget-conscious repairs and are generally considered acceptable for most uses, though long-term durability may not match premium brands.

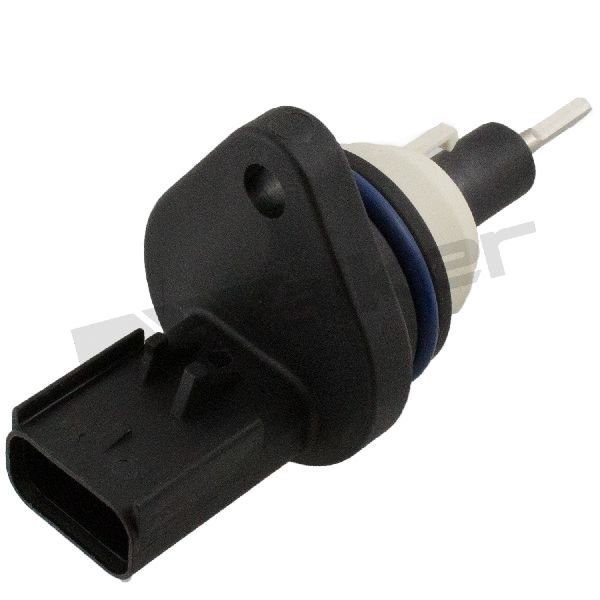

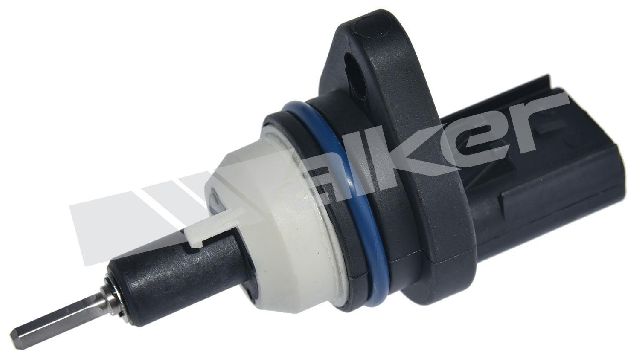

- Walker Products, Global Parts, True Tech: These brands fall into the value category. They can be a good option if the budget is the primary concern, but be aware that you may be sacrificing some longevity.
Don't Forget the Gear!

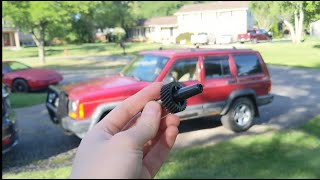

The VSS is often sold without the plastic speedometer gear. In most cases, you will need to carefully remove the gear from your old sensor and install it on the new one. If your gear is damaged, you must replace it with one that has the correct tooth count for your Jeep's axle ratio and tire size. 🎬 See how to swap the speedometer gear into your sensor. Using the wrong gear will result in an inaccurate speedometer reading.
Cost of Replacing a Jeep Cherokee VSS
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket VSS | $30 - $98 |
| New OEM Mopar VSS | $60 - $150+ (if available) |
| Shop Labor | $50 - $120 |
| Total Professional Replacement | $80 - $218 |
Frequently Asked Questions (FAQ)
Where is the VSS located on my Jeep Cherokee?
The Vehicle Speed Sensor is located on the driver's side of the transfer case tail housing on 4WD models. On 2WD models, it is in a similar position on the transmission's output shaft housing. It is held in place by a single bolt and a small clamp.
Is replacing the VSS a difficult job?
No, this is a very DIY-friendly job. It typically requires only basic hand tools like a ratchet and a 13mm socket. Access is straightforward, and the entire process usually takes less than 30 minutes. You simply unplug the electrical connector, remove one bolt, and pull the sensor out.
🎬 Watch a quick walkthrough of the VSS replacement process.Do I need to replace the speedometer gear too?
Not usually. Most new sensors do not come with the gear. You should plan to reuse your original gear unless it is visibly damaged (cracked, stripped teeth). If you have changed your tire size or axle gears, you will need a new speedometer gear with a different tooth count to correct your speedometer reading.
Can a bad VSS really cause my transmission to act weird?
Yes, absolutely. The transmission control module (TCM) needs to know how fast the vehicle is going to shift gears at the right time. Without a reliable signal from the VSS, the TCM gets confused, leading to hard shifts, delayed shifts, or getting stuck in one gear.
Are there any recalls for the Jeep Cherokee VSS?
No, there are no specific recalls for the Vehicle Speed Sensor on the 1987-2001 Jeep Cherokee XJ. Searches of the NHTSA database show recalls for speedometer issues on much newer Jeep models, but not for this generation.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56027905 4897734AA 83503722 56027791
Located on the transfer case (4WD) or transmission (2WD) output housing. Typically a three-wire sensor for 1991+ models. Held in by one 13mm bolt and a retaining clamp. Requires swapping the original speedometer drive gear.
