1987-2002 Jeep Wrangler (YJ/TJ) Disc Brake Hardware Kit Guide
Don't let old, rusty hardware ruin your Wrangler's brake job; here's what you need to know.
- Always replace your disc brake hardware kit when you replace your brake pads. It's a low-cost part that prevents noise and ensures proper brake function.
- If you own a 1987-1995 YJ, inspect the knuckle 'ears' where the pads slide for divots. This is a common wear point that must be repaired for brakes to work correctly.
- All listed aftermarket brands (Carlson, Centric, Dynamic Friction, Omix-Ada, Raybestos) are reliable choices. For extra corrosion resistance, consider a kit made from stainless steel.
- Properly lubricating the new hardware and caliper slide pins is just as important as replacing the parts themselves.
Symptoms of Bad or Missing Brake Hardware
Old brake hardware gets rusty and weak. Many shops throw it away and don't replace it during a brake job. This is a mistake. Worn or missing hardware can cause several problems on your YJ or TJ Wrangler.
- Brake Squeal or Chirping: A high-pitched squeal, especially during light braking or when you're not braking at all, is a common sign. The noise might even go away when you press the pedal. This happens because the pads are vibrating without the proper clips to hold them tight.
- Rattling or Clunking Noises: Loose or missing clips can allow the brake pads to rattle or clunk inside the caliper bracket, especially over bumps or during slow-speed stops.
- Uneven Brake Pad Wear: If the hardware is rusted or bent, the brake pads can't slide freely. One pad might wear out much faster than the other, forcing you to do another brake job sooner.
- Dragging Brakes and Overheating: Stuck pads can drag on the rotor, creating constant friction. This can lead to a pull to one side, a hot smell from your wheels, and blue or purple spots on the brake rotor from extreme heat.
A Known Issue on YJ Wranglers (1987-1995)
The front steering knuckles on YJ models are made of a relatively soft metal. The areas where the brake pad tabs slide (called 'ears') can develop grooves or 'divots' over time. When this happens, the pads get stuck in these divots, causing them to drag or not engage properly. New hardware won't fix this. A proper repair involves welding the divots and grinding the surface smooth so the pads can slide freely again. If you have a YJ, inspect these surfaces carefully during your brake job.
Choosing the Right Aftermarket Hardware Kit
For a part this inexpensive, there is no reason to reuse old hardware. Always install a new kit with new pads. The brands available offer good quality for your Wrangler, but there are slight differences.
Aftermarket Brand Tiers for Jeep Wrangler
| Brand | Tier | Notes |
|---|---|---|
| Raybestos, Centric, Carlson | Standard Replacement | These are trusted, well-known brands that provide quality similar to the original parts. They are a reliable choice for a daily driver or weekend off-roader. Some sources suggest these brands are owned by the same parent company and may share designs. |
| Omix-Ada | Jeep Specialist | Omix-Ada focuses specifically on Jeep parts. They are a go-to for many Jeep owners looking for parts that meet original specifications. Their hardware kits are a solid, dependable choice for any YJ or TJ. |
| Dynamic Friction (DFC) | Premium Replacement | Dynamic Friction is often noted for using higher-quality materials, such as stainless steel, in their hardware kits more frequently than other brands. Stainless steel offers better corrosion resistance, which is a big plus for a Jeep that sees mud, water, and road salt. |
Pro Tip: When installing your new hardware, apply a thin layer of high-temperature brake grease to the points where the clips touch the caliper bracket and where the brake pad tabs slide on the clips. This ensures quiet operation and smooth movement. Also, clean and lubricate the caliper slide pins.
Frequently Asked Questions
Do I really need to replace the hardware with every brake job?
Yes. The hardware is a single-use part. The clips lose their spring tension from the heat of braking. Reusing them can lead to noise and premature pad wear. Given the low cost of a new kit ($6-$26), it's cheap insurance for your brake job.
Are there any recalls on 1987-2002 Wrangler brakes?
Yes, but not for the disc brake hardware itself. There was a recall for the parking brake pedal on 1990-1995 models (YJ) that could release unexpectedly. There was also a recall for the brake master cylinder on 1997-2005 models (TJ). Right-hand drive models had a recall for a brake tube that could be damaged by the steering shaft. You can check with a dealer or on the NHTSA website to see if your specific Jeep is affected.
My Wrangler has rear drum brakes. Does this part apply?
No. This hardware is only for disc brakes. Many YJ and TJ Wranglers came with drum brakes in the rear. If you still have rear drums, you will need a drum brake hardware kit. If you have converted your rear axle to disc brakes, you will need a disc brake hardware kit for that specific conversion.
What's the difference between a cheap hardware kit and an expensive one?
The main difference is often the material. Cheaper kits might use zinc-plated steel, while more expensive kits may use stainless steel. Stainless steel is more resistant to rust and corrosion, which helps the brake pads slide freely for longer, especially if you live in a wet climate or an area that uses road salt.
Technical Specifications

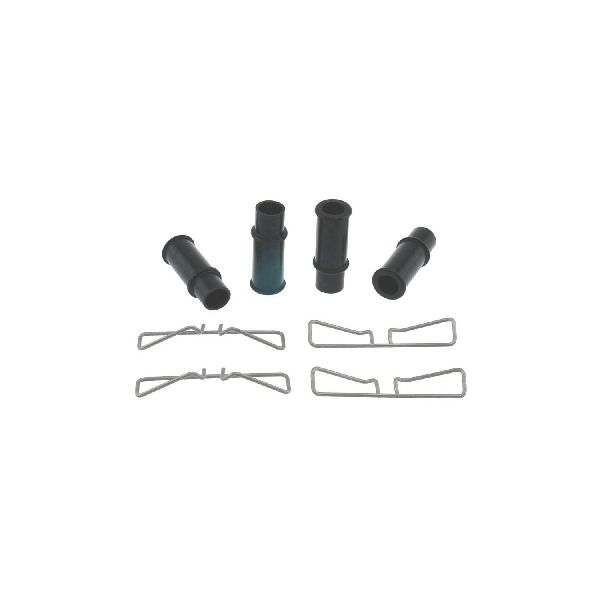

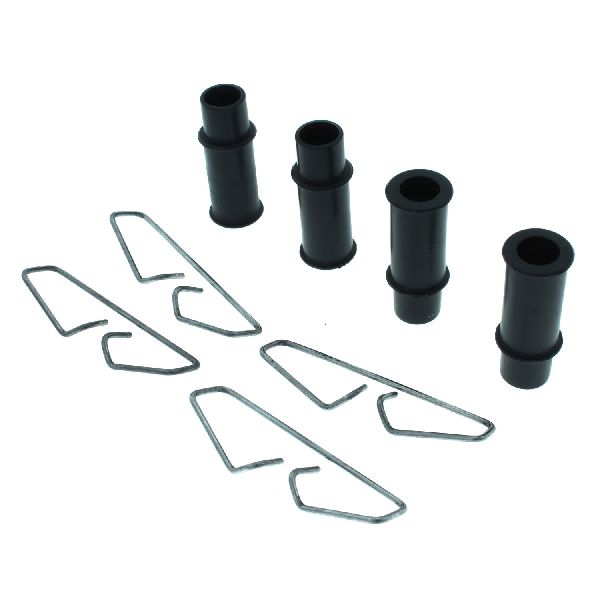

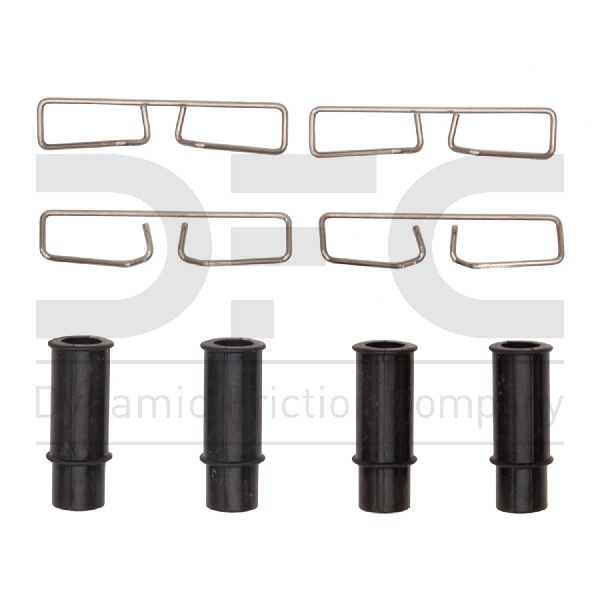

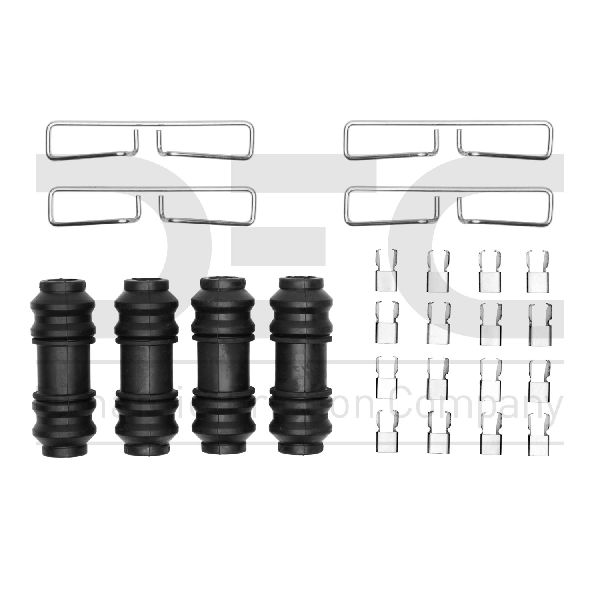

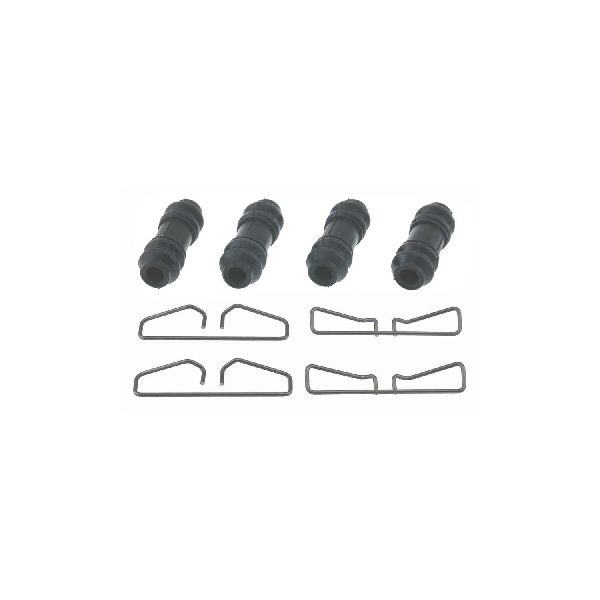

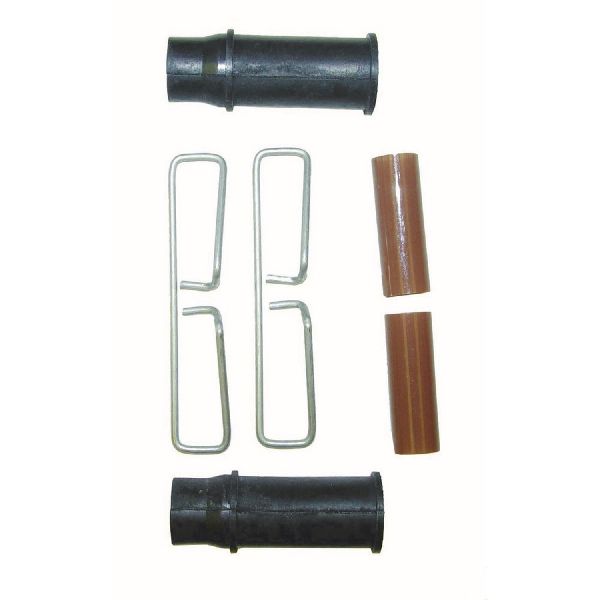

Kit typically includes anti-rattle clips and pad-retaining springs. Material may be zinc-plated steel or stainless steel.
