A Pathfinder Owner's Guide to Universal Joint Replacement (1987-2004)
That clunking sound or highway vibration could be a bad U-joint; here’s how to choose the right replacement for your Pathfinder.
- Key failure symptoms are clunking when shifting, vibrations at highway speeds, and rhythmic squeaking.
- For aftermarket parts, Dana Spicer is the top-rated brand, with Moog and SKF as reliable alternatives.
- Greasable aftermarket U-joints are a popular upgrade over sealed OEM parts for potentially longer service life.
- Confirm whether your Pathfinder uses internal or external snap rings before buying parts to ensure correct fitment.
Is Your Pathfinder's U-Joint Failing?
A worn-out U-joint will give you clear warning signs. Ignoring them can lead to a driveshaft failure, which can cause serious damage to your undercarriage and a loss of control. Be on the lookout for these common symptoms:
- Clunking or Banging Noise: A loud "clunk" when you shift from Park into Drive or Reverse is a classic sign of a bad U-joint. This is caused by excessive play in the worn-out joint.
- Vibration While Driving: You may feel a vibration throughout the vehicle, especially at highway speeds. This is often confused with unbalanced tires, but a U-joint vibration may change with acceleration or deceleration.
- Squeaking or Clicking: A rhythmic squeak or chirp that gets faster as you speed up points to a dry, failing U-joint that has lost its internal grease.
OEM vs. Aftermarket U-Joints
Original Nissan U-joints for this generation are typically high-quality but are also "non-serviceable," meaning they are sealed for life. Once the internal grease is gone, the joint wears out and must be replaced. High-quality aftermarket U-joints are considered by many Pathfinder owners to be equal to or even an upgrade over the original parts. This is because many aftermarket options are "serviceable" or "greasable," featuring a zerk fitting that allows you to add fresh grease, flushing out old grease and contaminants. With regular maintenance, a greasable U-joint can potentially last longer than a sealed one.
Pro Tip: Check Your Snap Rings!

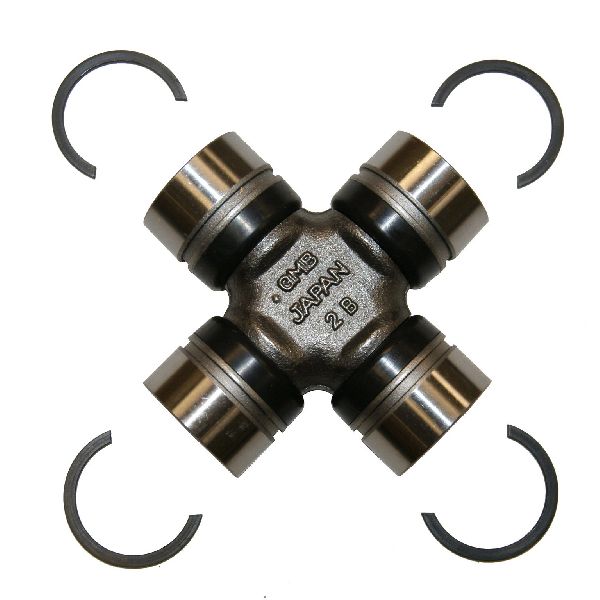

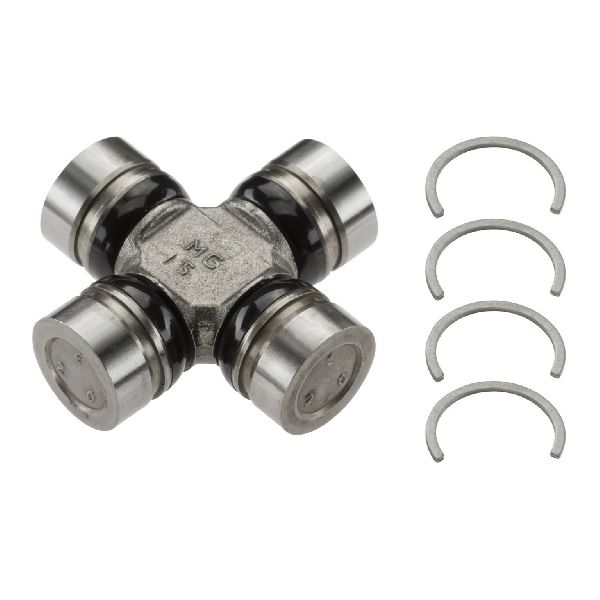

Before ordering, inspect your Pathfinder's current U-joints. Some use internal snap rings (inside the yoke ears) while others use external snap rings. Ordering the wrong type is a common mistake and the part will not fit.
🎬 See this walkthrough for replacing Nissan rear driveshaft U-jointsChoosing the Right Aftermarket Brand
Not all aftermarket parts are created equal. Based on owner experiences and mechanic recommendations, brands can be grouped into tiers.
- Top Tier (OEM Quality or Better): Dana Spicer is widely considered the best choice for U-joints. They are an original equipment manufacturer for many brands and have a reputation for durability and quality.
- Mid Tier (Reliable Aftermarket): Moog and SKF are well-known brands that offer reliable replacement options. Moog is particularly known for its "Problem Solver" line which often includes greasable fittings and design improvements. However, some users report inconsistent quality with Moog in recent years. SKF is a respected bearing manufacturer and a solid choice.
- Standard Tier (Budget-Friendly): GMB is a common brand that offers a more affordable option for replacement. These can be a good choice for a vehicle that sees light duty, but may not have the same longevity as premium brands.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $18 - $75 |
| New OEM U-Joint (Single) | $80 - $130 |
| Shop Labor (per driveshaft) | $200 - $450 |
A Note on Installation
Replacing U-joints can be a difficult job for a DIY mechanic. The old joints are often rusted in place and require a hydraulic press or a very large bench vise to remove without damaging the driveshaft yoke. If you don't have these tools, it's recommended to have a professional shop perform the replacement.
🎬 Watch: How to replace a U-joint without a hydraulic pressFrequently Asked Questions
How many U-joints does my Pathfinder have?
It depends on your drivetrain. A 2-wheel drive (RWD) model typically has two U-joints on the rear driveshaft. A 4-wheel drive (4WD) model has a front and rear driveshaft, for a total of four U-joints.
Should I get greasable or sealed U-joints?
Greasable U-joints have the potential to last longer if you perform regular maintenance (adding grease annually or as needed). Sealed joints are maintenance-free but must be replaced when they wear out. For many owners who don't mind the extra maintenance step, greasable joints are the preferred choice.
Can I replace just one bad U-joint?
Yes, but it's often recommended to replace them in pairs on the same driveshaft. If one has failed due to age and mileage, the other is likely not far behind. Replacing them at the same time saves you from doing the same job twice.
What happens if a U-joint fails completely?
Complete failure is dangerous. The U-joint can break apart, causing the driveshaft to detach from the vehicle. This will result in an immediate loss of power to the wheels. At highway speeds, the loose driveshaft can slam against the undercarriage, causing catastrophic damage to the transmission, exhaust, fuel lines, and more, and can lead to a loss of vehicle control.
Helpful Videos
Technical Specifications
OEM Part Numbers: 37126-01G25 37126-0W725 37126-C9425 37125-01GX5
Varies by model year and drivetrain (2WD/4WD). Critical specifications include bearing cap diameter and snap ring location (internal or external). 4WD models use four U-joints; 2WD models use two.
