Engine Timing Set Guide for the 1988-1993 Chevrolet S10
Understanding the critical differences in timing components for your S10's specific engine is key to a lasting repair.
- For 2.5L 'Iron Duke' engines, always upgrade the original fiber cam gear to a full metal aftermarket set to prevent inevitable failure.
- For 2.8L and 4.3L V6 engines, listen for a rattling sound at idle, which indicates a stretched timing chain that needs replacement.
- This is a good time to also replace the water pump and timing cover gaskets since they must be removed for the job.
- The 1988-1993 S10 engines are non-interference, so a timing failure is unlikely to cause catastrophic piston-to-valve damage.
Engine-Specific Timing Systems in the 1988-1993 S10
It is critical to know which engine your S10 has, as the timing systems are completely different. The two most common engines in this year range have unique needs.
- 2.5L 4-Cylinder (Iron Duke): This engine uses a gear-driven system. The original camshaft gear was made with a nylon or fiber material over a metal hub to reduce noise. This is a known weak point and a common failure item. When it fails, the teeth strip off the gear, and the engine will stop running.

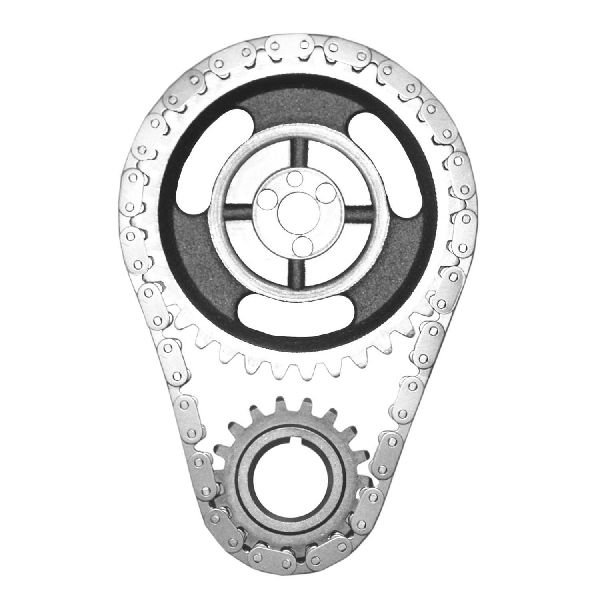

- 2.8L & 4.3L V6: These engines use a timing chain that connects a sprocket on the crankshaft to one on the camshaft. Over time, the chain can stretch or the tensioner/damper can wear out, causing slack. This can lead to rattling noises, poor performance, 🎬 Watch: Top 5 symptoms of a bad timing chain and eventually the chain can jump a tooth or break.
The 2.5L Iron Duke's Fatal Flaw
🎬 Watch: Fixing the Iron Duke's fatal timing gear flawThe original fiber/nylon camshaft gear on the 2.5L engine is not a question of if it will fail, but when. It is highly recommended to replace it with a full metal aftermarket gear set (steel or aluminum) for long-term reliability. This is a common and well-documented upgrade in the S10 community.
Choosing the Right Aftermarket Timing Set
When shopping for a new timing set, you have several good options that often improve on the original factory parts.
| Brand Tier | Brands | Best For |
|---|---|---|
| OE Replacement | Cloyes, Melling, INA | Daily driving and stock performance. These brands are trusted industry standards that meet or exceed original specifications and offer a reliable, quiet, and maintenance-free experience. |
| Performance Upgrade | Melling Select Performance, Edelbrock | Towing, hauling, or high-performance builds. These kits often feature double-roller chains or billet steel components for maximum durability and precise timing under heavy load. |
What Else Should I Replace?
Since replacing the timing set requires removing the timing cover, it's the perfect time to replace other parts in the area. Always install a new timing cover gasket and front crankshaft seal. It is also highly recommended to replace the water pump at the same time, as it must be removed to access the timing cover.
Frequently Asked Questions (FAQ)
🎬 See how to remove the balancer and timing cover tool being used to remove a pulley from an engine crankshaft." loading="lazy" style="max-width:100%;height:auto;border-radius:6px;display:block;box-shadow:0 2px 8px rgba(0,0,0,0.1);" />Is my S10 engine an interference or non-interference engine?
The 2.5L Iron Duke and the 4.3L V6 engines used in this generation are generally considered non-interference engines. This means if the timing gear or chain fails, the pistons will likely not strike and bend the valves. However, while catastrophic damage is less likely, the engine will not run and you will be stranded.
For my 4.3L V6, should I get a standard chain or a double-roller?
For a stock daily driver, a quality standard replacement set from a brand like Cloyes or Melling is perfectly adequate. If you use your truck for heavy towing, or if you are rebuilding the engine for higher performance, a double-roller chain from Edelbrock or Melling Select Performance provides extra strength and durability.
Do I need special tools for this job?
Yes. You will need a harmonic balancer puller to remove the crankshaft pulley. For the 2.5L engine, you will also need a press to install the new gear onto the camshaft. For the V6 engines, you may need a gear puller for the crank sprocket if it is tight.
Were there any recalls for the timing components on the 1988-1993 S10?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or technical service bulletins (TSBs) specifically for the timing gears or chains on the 1988-1993 Chevrolet S10. Failures are typically addressed as standard wear-and-tear repairs.
Helpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
System varies by engine. The 2.5L 4-cylinder uses a direct gear-to-gear set. The 2.8L and 4.3L V6 engines use a timing chain and sprocket set. Some 4.3L V6 engines from 1992 onwards may have a balance shaft, which uses a different timing set than non-balance shaft engines.
