Throttle Position Sensor (TPS) Guide for 1988-1993 Dodge D350
Understand the critical role of the throttle position sensor in your first-generation Dodge D350, especially for trucks with automatic transmissions.
- For D350s with a Cummins diesel and automatic transmission, the TPS is critical for proper shifting; its failure is often misdiagnosed as a transmission problem.
- Symptoms include erratic shifting, poor acceleration, unstable idle, and potential stalling.
- Replacement is an easy DIY job, but diesel models require careful adjustment with a multimeter to set the correct voltage.
- Investing in a premium aftermarket brand like Standard Ignition or NGK/NTK is recommended for reliability and longevity.
Is a Failing Throttle Position Sensor Affecting Your D350?
The first-generation Dodge D350 is a tough truck, but some of its electronic parts can wear out over time. The throttle position sensor (TPS) is a common failure point, particularly on trucks with the 5.9L Cummins diesel engine and an automatic transmission. Because this sensor is critical for proper transmission operation, a bad TPS can often be mistaken for a serious transmission problem. Symptoms can appear suddenly, including poor acceleration, erratic shifting, and even stalling.
Symptoms of a Bad TPS on a 1988-1993 Dodge D350
- Erratic Automatic Shifting: For Cummins models with an automatic, this is the most common sign. The transmission may shift late, hunt for gears, or have trouble with the 3-4 upshift. The torque converter might lock and unlock unexpectedly.
- Poor Acceleration and Hesitation: Your truck may feel sluggish, hesitate, or stumble when you press the gas pedal.
- Rough or Unstable Idle: The engine might idle too high, too low, or surge up and down on its own.
- Sudden Loss of Power or Stalling: In more severe cases, the engine may lose all response to the throttle pedal (a "dead pedal" situation) or stall completely.
- Check Engine Light: A failing TPS can trigger the check engine light and store trouble codes like P0121, P0122, or P0123. 🎬 Watch this video for more symptoms of a bad TPS.
Diesel Owners: Don't Mistake a Bad TPS for a Bad Transmission
For 1989-1993 D350s with the 5.9L Cummins and an automatic transmission, the TPS signal is essential for controlling overdrive and torque converter lockup. Many owners have reported spending significant money on transmission diagnostics only to find the root cause was a faulty, and much cheaper, throttle position sensor. If you experience sudden shifting problems, the TPS should be one of the first parts you inspect.
Choosing the Right Aftermarket TPS
Since these trucks are older, OEM Mopar parts can be difficult to find and expensive. The aftermarket offers a wide range of options. Quality can vary, so it's important to choose wisely, especially given the sensor's importance for transmission health.
Premium Brands ($75 - $148)
These brands are known for using high-quality materials and rigorous testing to match or exceed original equipment performance. For a critical part like the D350's TPS, a premium brand is a strong investment.
- Standard Ignition (SMP): Often regarded as a top-tier aftermarket choice, Standard parts are trusted by professional technicians and known for their quality and durability.
- NGK/NTK: A well-respected name in engine management sensors, NTK (a brand of NGK) produces high-quality sensors that meet OE specifications.
- Delphi: With a long history as an original equipment supplier, Delphi parts are generally considered reliable replacements.
Mid-Grade & Economy Brands ($33 - $74)
These brands offer a balance of affordability and function. They can be a good choice for a daily driver, but quality can sometimes be inconsistent.
- Walker Products: Walker offers direct-fit replacement sensors designed to meet OE specifications and can be a reliable option.
- Dorman: Dorman is known for providing parts that are often only available from the dealer. While some of their "OE FIX" parts improve on the original design, their overall quality can be hit-or-miss according to owner feedback. 🎬 See a review of Dorman replacement parts here.
- Replacement / Store Brands: These are typically the most budget-friendly options. They can work well, but may not have the same longevity or precise calibration as premium brands.
A Note on Adjustment
On the 5.9L Cummins diesel models, the new TPS must be adjusted correctly with a multimeter to ensure proper voltage readings at idle and wide-open throttle. An incorrect adjustment will lead to continued shifting problems. The target idle voltage is typically between 0.6 and 1.2 volts DC. For gasoline V8 models, the TPS is generally not adjustable and must be replaced if faulty.
Typical Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $33.83 - $147.58 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $84 - $248 |
Frequently Asked Questions
Can I replace the TPS myself?

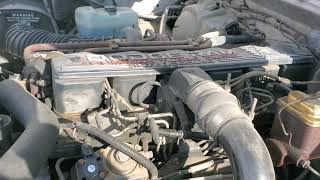

Yes, this is a very DIY-friendly job. The TPS is located on the throttle body (gas engines) or the side of the injection pump (diesel engines) and is held on by two screws. The entire process usually takes less than 30 minutes. 🎬 Watch a 3-minute guide to replacing your Cummins TPS. You will need basic hand tools and a multimeter for adjustment on diesel models.
Why do I need a multimeter for the diesel model?
On the 12-valve Cummins with an automatic, the computer relies on a specific voltage signal from the TPS to know when to shift into overdrive. After installing a new sensor, you must manually rotate it until the output voltage at idle is within the correct specification, typically around 1.0 volt. Without this adjustment, the transmission will not shift correctly.
Are there any recalls for the D350 throttle position sensor?
No, a search of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the throttle position sensor on 1988-1993 Dodge D350 trucks.
What happens if I ignore a failing TPS?
Ignoring a bad TPS can lead to more than just annoyance. On diesel models, it can cause excessive wear on the automatic transmission due to harsh shifting and improper torque converter lockup. It can also lead to unsafe driving conditions, such as stalling in traffic or sudden, unexpected power surges.
Helpful Videos
Technical Specifications
The key specification for the 5.9L Cummins diesel model is the idle output voltage, which must be adjusted to approximately 0.6V - 1.2V DC for proper transmission operation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
