Dodge W150 (1988-1993) Alternator & Charging System Guide
Everything you need to know before replacing the alternator on your first-generation Dodge Ram.
- Always check the external voltage regulator and ground wires first; they are common failure points and cheaper to fix than the alternator.
- Overcharging is a serious symptom unique to this system; if you see it, replace the voltage regulator immediately to prevent battery damage.
- For a stock truck, a standard 90A alternator from a brand like Bosch or Remy is a reliable choice.
- If you have added accessories like a plow or winch, upgrade to a high-output alternator from a brand like Powermaster to handle the extra load.
Is Your Alternator Really the Problem?
On 1988-1993 Dodge trucks, the charging system has two main parts: the alternator and an external voltage regulator. Many common charging problems, like a battery that's overcharging or not charging at all, are often caused by a failed voltage regulator, not the alternator itself. Flickering lights or a voltmeter gauge that bounces around are also classic signs of a bad regulator.
Check the Voltage Regulator First
🎬 Watch: Quick diagnosis and temporary fix for charging issues.Before you buy a new alternator, it's smart to check the external voltage regulator and all battery/ground connections. A faulty regulator is a common issue on these trucks and is a cheaper, easier part to replace. Also, ensure the mounting area for the regulator has a clean, metal-to-metal ground connection.
Symptoms of a Failing W150 Alternator
When your alternator or regulator does start to fail, the signs are usually obvious:
- Dim or Flickering Headlights: Especially at idle, you may notice your lights pulse or seem weak.
- Battery Warning Light: The battery light on your dash may come on, indicating a charging problem.
- Dead Battery: The most common symptom is a battery that won't stay charged, leaving you needing a jump start.
- Overcharging: If the voltage regulator fails, it can cause the alternator to send too much power (16+ volts) to the battery. This can make the battery bubble, smell like rotten eggs, and damage other electronics.
- Whining or Grinding Noise: A high-pitched whine that changes with engine speed can signal failing bearings inside the alternator.

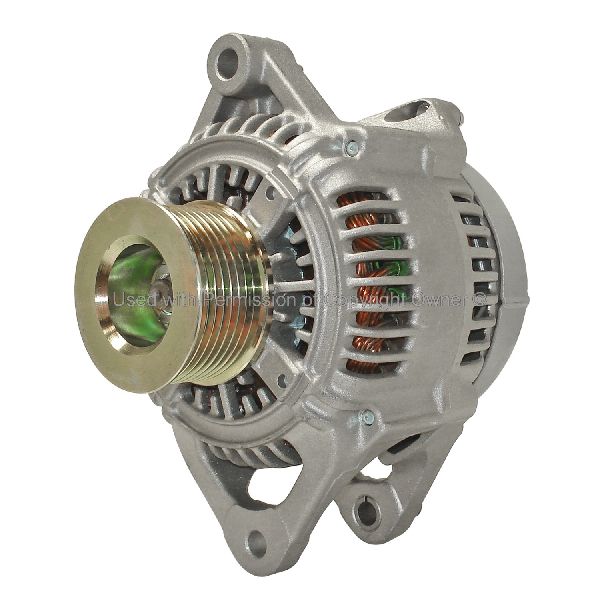

Choosing the Right Aftermarket Alternator
With dozens of options available, picking the right alternator can be confusing. For the W150, they fall into three main categories. Note that some high-output models may require wiring modifications or a shorter belt.
Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| Economy | BBB Industries, MPA | These are typically remanufactured units that meet basic factory specifications. They are the most affordable option but may have a shorter lifespan than premium parts. |
| Standard / OEM-Quality | ACDelco, Bosch, Remy | These brands are known OE suppliers and offer new or premium remanufactured units that provide reliability and longevity comparable to the original part. Bosch is often cited as a high-quality, dependable choice. |
| High-Output / Performance | Powermaster | If you run extra accessories like a winch, powerful stereo system, or off-road lights, a high-output alternator is a wise upgrade. Powermaster specializes in these units, offering amperages from 100A up to 250A to handle heavy electrical loads. |
Do You Need a High-Output Alternator?
The stock alternator (around 90 amps) is fine for a factory truck. However, if you've added a snow plow, a large audio amplifier, or extra lighting, the stock unit will struggle. Upgrading to a 120A or higher unit from a brand like Powermaster provides the power you need and prevents premature battery and alternator failure.
Cost of Replacing a Dodge W150 Alternator
| Part / Service | Estimated Cost |
|---|---|
| Shop Labor | $98 - $143 |
| New Aftermarket Alternator | $45 - $450 |
| Total Professional Replacement | $403 - $448 (using standard part) |
Frequently Asked Questions (FAQ)
What is an external voltage regulator?
It's a small electronic box, usually on the firewall, that acts as the "brain" for the alternator. 🎬 Learn how to bypass the computer with an external regulator. It senses the battery's voltage and tells the alternator when to charge and when to stop. A failure can cause either no charging or constant, excessive charging.
Were there any recalls on the 1988-1993 W150 alternator?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific investigations related to the alternator or charging system for the 1988-1993 Dodge W150. Recalls found were for much newer Dodge vehicles.
Is it hard to replace the alternator on a W150 myself?
No, it is a straightforward job for someone with basic mechanical skills. Access is generally good. The process involves disconnecting the battery, loosening the belt tensioner 🎬 See this walkthrough for replacing the alternator and belt tensioner. to remove the belt, unplugging the wires, and removing a few bolts. The entire job can typically be done in about an hour.
What amperage alternator should I get?
For a stock truck, a standard 90-amp replacement is sufficient. If you have added any significant electrical accessories like a winch, large stereo, or plow, you should consider a high-output alternator of at least 120 amps to avoid issues.
Helpful Videos
Technical Specifications
Voltage: 12V, Amperage: 90A (standard), Pulley: 2-Groove V-Belt (early models) or Multi-Groove (later models), Regulator: External
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
