A Guide to Spark Plug Wire Sets for the 1988-1993 Toyota Celica
Restore your Celica's ignition performance by choosing the right spark plug wire set for your engine.
- Always verify your Celica's engine model (e.g., 5S-FE, 4A-FE, 3S-GTE) before buying, as wire sets are not interchangeable.
- For best results and fit, choose OEM-quality aftermarket brands like Denso or NGK, which are highly recommended by Toyota owners.
- Symptoms like a rough idle, hesitation, and poor gas mileage are strong indicators that your spark plug wires may need replacement.
- Replacing wires is a simple DIY task; do it one wire at a time to avoid mixing up the firing order.
Signs of Failing Spark Plug Wires on Your Celica
Over time, the constant heat and vibration in the engine bay can cause spark plug wires to wear out. The insulation can crack, and the internal conductors can break down. When this happens on your 1988-1993 Celica, you'll likely notice some clear symptoms.
- Rough Idle: The engine may shake or run unevenly when you're stopped.
- Engine Hesitation: When you press the gas pedal, the car might stumble or hesitate before accelerating.
- Misfires: You might feel a jerking or sputtering from the engine, which is a sign that one or more cylinders aren't firing correctly.
- Reduced Power and Fuel Economy: A weak spark means inefficient combustion, leading to a noticeable loss of power and more trips to the gas station.
- Difficulty Starting: Worn wires can prevent the spark plugs from getting enough voltage to start the engine easily.
- Check Engine Light: An engine misfire can trigger the Check Engine Light on your dashboard.
Engine-Specific Parts are Crucial
The 1988-1993 Toyota Celica was available with several different engines, including the 1.6L 4A-FE, the 2.2L 5S-FE, and the 2.0L Turbo 3S-GTE in the All-Trac model. Each engine requires a different spark plug wire set with specific lengths and boot angles. Ordering the wrong set will lead to a poor fit and ignition problems. Always confirm your Celica's engine model before purchasing a new set.
Choosing the Right Aftermarket Spark Plug Wires
When replacing your Celica's spark plug wires, you have several quality tiers to choose from. For a vehicle of this era, sticking with brands known for their OEM-level quality is a smart investment in reliability.

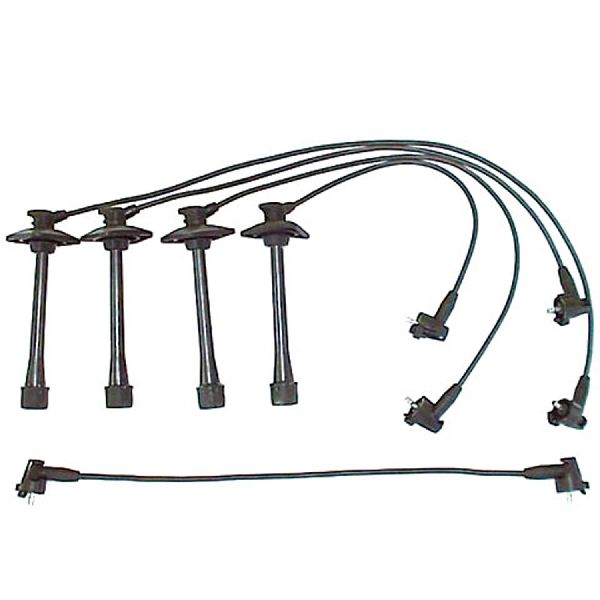

Tier 1: OEM & Premium Aftermarket (Denso, NGK)
Toyota's original equipment (OEM) wires were typically made by companies like Yazaki or Sumitomo. They are known for perfect fitment, often coming pre-clipped into the plastic wire looms. Denso and NGK are the most recommended aftermarket brands for Toyota vehicles. Both are major OEM suppliers to Toyota and produce wires that meet or exceed factory specifications. Owners consistently report excellent performance and reliability from these brands, making them the safest bet for a long-lasting repair.

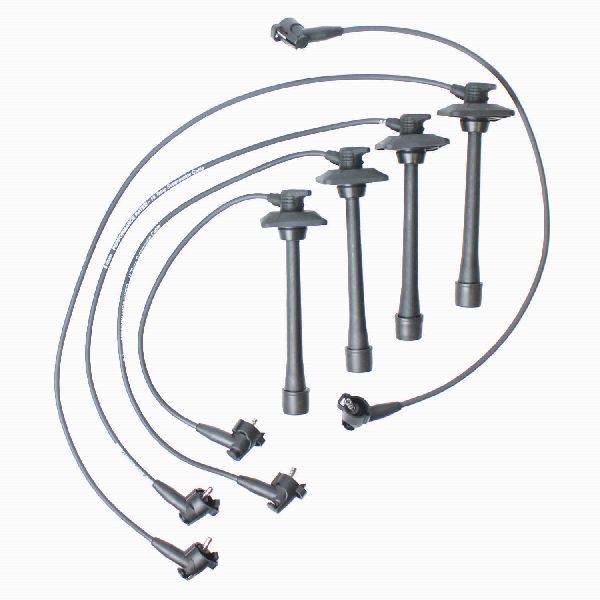

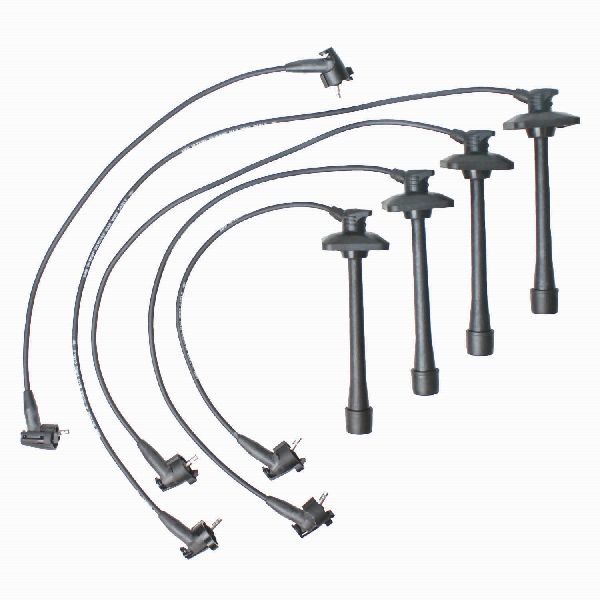

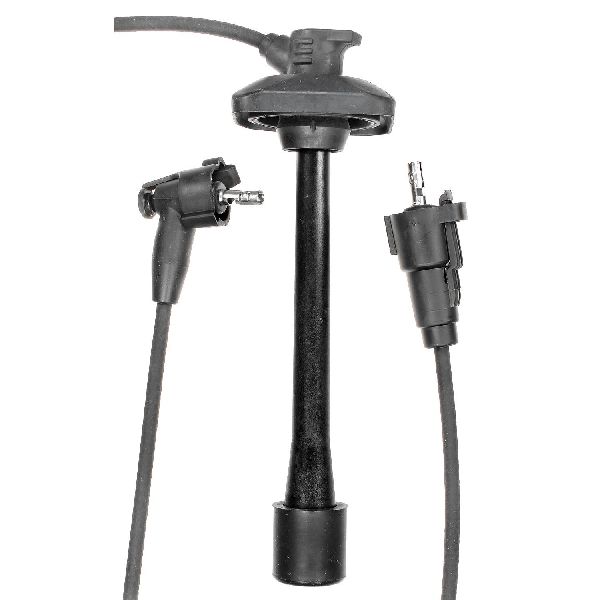

Tier 2: Reputable Aftermarket (Standard Motor Products, Walker Products)
Brands like Standard Motor Products (SMP) and Walker Products offer a more budget-friendly alternative. SMP is a long-standing company that produces direct-fit replacement parts. Walker Products markets its ThunderCore line as being engineered to match the original parts, not as a universal solution. While these brands can offer good value, some owners have occasionally reported minor fitment issues compared to OEM, Denso, or NGK sets. They are a viable option if budget is a primary concern.
Estimated Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $85 - $150 |
| New Aftermarket | $35 - $115 |
| Shop Labor | $60 - $120 |
Installation Pro-Tip
When replacing your wires, do them one at a time. Remove one old wire from the distributor cap and spark plug, then install the new wire of the same length in its place. This prevents mixing up the firing order, which would cause the engine to run poorly or not at all. Applying a small amount of dielectric grease to the inside of the boots will make future removal easier and helps seal out moisture.
Frequently Asked Questions
Are there any recalls for 1988-1993 Celica spark plug wires?
No, there have been no specific recalls or Technical Service Bulletins (TSBs) issued by Toyota or the NHTSA for spark plug wire failures on the 1988-1993 Celica. Failures are due to normal wear and tear over time.
Can I replace spark plug wires myself?
Yes, this is a very DIY-friendly job. It requires basic hand tools and can typically be completed in under an hour. The key is to replace the wires one by one to maintain the correct firing order.
How often should I replace my spark plug wires?
There is no strict interval, but a good practice is to inspect them for cracks, melting, or brittleness whenever you change your spark plugs. Many owners replace them as a set with the spark plugs, typically every 30,000 to 60,000 miles, to maintain peak ignition performance.
What's the difference between cheap and expensive wires?
More expensive wires from brands like Denso and NGK use higher-quality materials for the conductor and insulation. This results in better electrical performance, superior heat resistance, and a more precise fit, leading to better engine performance and a longer service life compared to cheaper, generic options.
Technical Specifications
OEM Part Numbers: 90919-22370 90919-22302 90919-21471
Wire sets are specific to the engine type (1.6L 4A-FE, 2.2L 5S-FE, 2.0L 3S-GTE). Wires consist of a conductor core, insulation, and silicone boots. Quality varies by brand.
