A Deep Dive into the Brake Light Switch for the 1988-1994 GMC C1500
Solving common brake light and cruise control problems starts with this critical, often overlooked part.
- A bad brake light switch is a common cause for non-working cruise control on the C1500.
- Before replacing the switch, always inspect the tail light circuit boards, a known failure point on this platform.
- The replacement is simple and requires few tools, but access is tight under the dash.
- For reliability, choose a quality aftermarket brand like ACDelco (OEM) or Standard Ignition.
Is Your Brake Light Switch Failing?
A faulty brake light switch on a GMT400-era truck like your C1500 can cause a range of confusing electrical issues. The symptoms aren't always as simple as the brake lights not working. Because this switch is tied into multiple systems, its failure can mimic other problems. Understanding these signs is the first step to a correct diagnosis.
A Common Point of Confusion: Tail Light Circuit Boards
Before you replace the brake light switch, inspect your tail light circuit boards. The 1988-1994 C/K trucks are known for having issues with the tail lamp housings and circuit boards, which can melt or develop bad connections. This can cause intermittent brake lights, turn signals, or lights that don't work at all, closely mimicking a bad brake light switch. Pulling a tail light to check for melted plastic or corrosion at the bulb sockets is a wise first step.

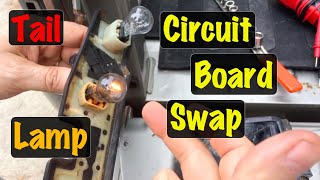

🎬 Watch this guide to diagnose and replace your tail lamp circuit boards.Symptoms of a Bad Brake Light Switch
- No Brake Lights: The most obvious and dangerous symptom. The switch fails to complete the electrical circuit when the pedal is pressed.
- Brake Lights Stuck On: The switch can fail in the 'on' position, leaving your brake lights illuminated even when the truck is off. This will drain your battery.
- Intermittent or Flickering Brake Lights: The lights may work sometimes or flicker when you press the pedal, indicating a worn or failing internal connection.
- Cruise Control Won't Engage or Disengages Randomly: The switch incorrectly tells the cruise control module that the brakes are being applied, preventing the system from working. This is a very common complaint solved by a new switch.
- Check Engine Light (Code 37): On these OBD-I trucks, a faulty brake light switch can prevent the torque converter from locking and unlocking correctly, which may trigger a Code 37. 🎬 See how to fix Code 37 by replacing the brake switch.
Choosing the Right Aftermarket Part
For a part this critical to safety and vehicle function, quality matters. While there are many cheap options, sticking with reputable brands prevents you from having to do the job twice.
- Premium Aftermarket (ACDelco): ACDelco is GM's original equipment (OE) parts brand. Choosing an ACDelco switch, whether it's the "Professional" or "GM Genuine" line, is the closest you can get to the original part your truck was built with. They are considered a reliable, direct-fit replacement.
- Standard Aftermarket (Standard Ignition): Standard Motor Products (SMP) is a well-respected aftermarket manufacturer. Their "Standard" brand switches are a quality alternative to OE and are trusted by many professional mechanics. They provide reliable performance and are often more budget-friendly than a dealer part.
- Value-Oriented (Rostra): While Rostra is a known brand, especially for powertrain and cruise control components, their brake light switches are less commonly discussed in forums for this specific truck compared to ACDelco and Standard. They can be a viable option if budget is the primary concern.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $13.59 - $51.83 |
| New OEM Part (GM/ACDelco) | $25 - $60 |
| Shop Labor | $50 - $100 |
Installation Tip
Replacing the switch is simple but can be awkward. It's located above the brake pedal arm under the dashboard. The main challenge is the tight space. The switch is held on by a metal retaining clip that can be tricky to remove and reinstall without breaking. Using a long screwdriver or a pick can help release the clip. No other special tools are typically needed.

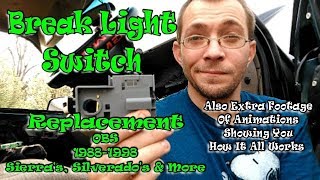

🎬 Watch a step-by-step walkthrough of the brake light switch replacement.Frequently Asked Questions
Do I need to disconnect the battery to replace the brake light switch?
Yes, you should always disconnect the negative battery terminal before working on any electrical components in your vehicle to prevent short circuits.
My cruise control doesn't work. Could it really be the brake light switch?
Absolutely. This is one of the most common causes of cruise control failure on these trucks. The switch has separate contacts for the cruise control circuit, which can fail even if the brake lights still work properly.
Are there any recalls for the brake light switch on my truck?
No, there are no active NHTSA recalls for the brake pedal light switch on the 1988-1994 GMC C1500. Recalls you may find online are for much newer GM trucks and involve a different type of brake pressure switch.
Why do my brake lights flicker only when I hit bumps?
This could be a sign of a loose connection at the switch, a failing switch that is sensitive to vibration, or a problem with the tail light circuit boards mentioned earlier. A thorough inspection of both components is needed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12450076
Mounts to brake pedal support bracket. Actuated by brake pedal arm. Contains multiple electrical contacts for brake lights, cruise control, and torque converter clutch.
