1988-1994 GMC C3500 EGR Valve: A Guide to Symptoms and Replacement
Experiencing a rough idle or engine knock in your GMT400 truck? Your EGR valve could be the problem.
- A bad EGR valve is a common cause of rough idle, engine knocking, and poor performance, often triggering a Code 32 on the check engine light.
- Replacement is a simple, one-hour DIY job for most owners, requiring only basic hand tools.
- ACDelco is a highly recommended brand, offering an OEM-quality part for reliable, long-lasting performance.
- While cleaning the valve is possible, it's often a temporary fix; a full replacement is the best way to solve the problem permanently.
Is Your C3500's EGR Valve Failing?
The EGR valve on the 1988-1994 GMC C3500 is a simple, vacuum-operated part, but it lives in a harsh environment. Over time, carbon from the exhaust gas can build up, causing the valve to stick open or closed. When this happens, you'll notice a decline in your truck's performance.
Common Failure Symptoms
- Rough Idle or Stalling: If the EGR valve is stuck open, it allows exhaust gases to flow into the engine at idle when it shouldn't. This disrupts the air-fuel mixture and can cause a rough, shaky idle or even cause the engine to stall.
- Engine Knocking (Pinging): If the valve is stuck closed, no exhaust gas gets recirculated. This leads to higher combustion temperatures, which can cause the fuel to detonate prematurely, creating a knocking or pinging sound, especially under load.
- Check Engine Light: On these OBD-I trucks, a failing EGR system will typically trigger a 'Code 32' on your check engine light.
- Poor Performance and Fuel Economy: Whether stuck open or closed, a bad EGR valve hurts engine efficiency. You might notice sluggish acceleration or find yourself filling up the tank more often.
- Failed Emissions Test: A malfunctioning EGR valve will lead to a spike in NOx emissions, which will cause your truck to fail a smog test.
Cost of Replacing an EGR Valve on a 1988-1994 GMC C3500
| Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $87 - $96 |
| New OEM Part | $176 - $324 |
| Shop Labor | $61 - $90 |
| Total Professional Replacement | $237 - $414 |
Choosing the Right Aftermarket EGR Valve
For this generation of GMC trucks, you don't need to overthink the brand choice. The original part was made by ACDelco for General Motors, and you can still buy that exact part today.
- ACDelco GM Original Equipment: This is the same part that was installed at the factory. It offers the same performance and durability you'd expect from GM. If you want a guaranteed fit and function, this is the best option.
- ACDelco Professional: ACDelco also offers a 'Professional' line of aftermarket parts. For a component like the EGR valve on this truck, it is often identical to the GM Original Equipment part and provides excellent quality.
- Other Aftermarket Brands: Brands like Standard Motor Products and Dorman also produce replacement EGR valves for the C3500. They are generally reliable options that meet or exceed original specifications.
Pro Tip: Given the simplicity of the part and the availability of high-quality aftermarket options like ACDelco, there is little reason to seek out a used or remanufactured EGR valve. The risk of getting another failing part is not worth the small potential savings.
Frequently Asked Questions
Can I just clean my EGR valve?
Some owners attempt to clean the carbon buildup from their EGR valve with carburetor cleaner. While this can sometimes provide a temporary fix, it often fails to solve the underlying problem, especially if the internal diaphragm has failed. If the valve doesn't hold a vacuum, it needs to be replaced. For long-term reliability, replacement is the recommended solution.
Is it hard to replace the EGR valve myself?
For most DIY mechanics, this is a straightforward job. The EGR valve is located on top of the intake manifold and is held on by two bolts. You'll need basic hand tools like a wrench or socket set. The most difficult part is often reaching the rear bolt, but it is accessible. The entire job can usually be done in under an hour.
What happens if I just unplug the EGR valve?
If you disconnect the vacuum line, the valve will remain closed. This will stop symptoms caused by a valve stuck open (like rough idle), but it will cause other problems. Your engine will run hotter, increasing the risk of engine knock and long-term damage, and your check engine light will stay on. It is not a recommended long-term solution.
What tools do I need for the job?
You will need a basic ratchet and socket set (a half-inch or 13mm wrench is common), a new EGR valve gasket (which should come with the new valve), and possibly a gasket scraper to clean the manifold surface. Applying anti-seize to the bolt threads upon reinstallation is also a good practice.
Technical Specifications
OEM Part Numbers: 19210654

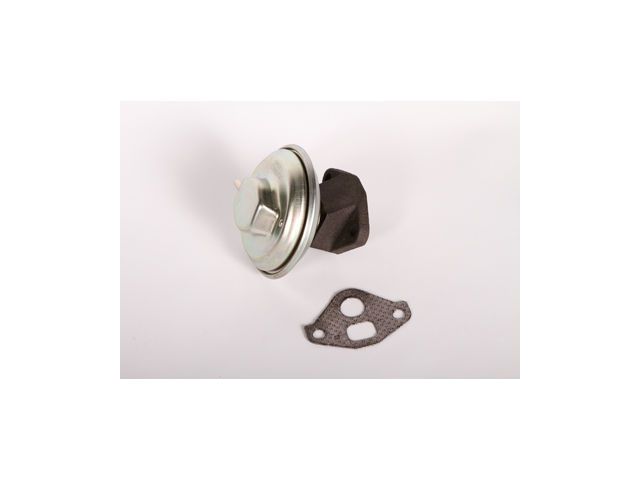

The EGR valve for the 1988-1994 GMC C3500 is a vacuum-operated valve. It typically includes one vacuum port and comes with the required gasket for installation. Common aftermarket part numbers include ACDelco 214-5073.
