Ignition Control Module Guide for the 1991-1994 Mercury Capri
Solving stalling, no-start, and rough running issues in your Australian-built Capri convertible.
- A common failure on the 1991-1994 Capri, the ignition module is located inside the distributor.
- The most telling symptom is the engine stalling when hot and restarting only after it has cooled down.
- Due to the vehicle's age, a new aftermarket module from a brand like Standard Ignition is the best replacement option.
- It is highly recommended to also replace the distributor cap and rotor during the repair.
Is Your Capri Stalling When Hot? It Could Be the Ignition Module.
The 1991-1994 Mercury Capri, with its Mazda-based engine, 🎬 See a common issues overview for the 1992 Mercury Capri. has a common failure point in the ignition system: the ignition control module. This small electronic part lives in a high-heat environment inside the distributor, and after 30+ years, its internal components can break down. The most classic symptom is an engine that runs fine when cold, but suddenly stalls after it warms up. After cooling down for 15-30 minutes, the car will often restart as if nothing happened, only for the problem to repeat itself.
Symptoms of a Failing Ignition Control Module
While stalling when hot is a primary indicator, other symptoms point to a failing module. If you experience any of these, the ignition control module is a likely suspect.
- Engine suddenly dies while driving: The tachometer needle will drop to zero instantly, even if the car is still rolling in gear.
- No-start condition: The engine cranks over but will not start due to a lack of spark.
- Engine misfires or runs rough: Inconsistent spark timing can cause the engine to shudder, hesitate, or lose power during acceleration.
- Check Engine Light: A failing module can trigger the check engine light, though this is not always the case on these older OBD-I vehicles.
Check This First!
Before blaming the ignition module for a no-start, check the fuel pump inertia switch. The Capri has a safety switch in the trunk that cuts power to the fuel pump. If you hit a large pothole, it can trip. Press the red button (usually on the left side of the trunk) to reset it before performing more complex diagnostics.
Choosing the Right Aftermarket Part
For a vehicle of this age, finding a new original equipment (OEM) ignition module from Ford or Mazda is highly unlikely. The most practical and reliable solution is a new aftermarket part. Brands like Standard Ignition produce replacement modules designed to meet or exceed original specifications.
Given the critical function of this part, it is not wise to save a few dollars on a used module from a junkyard. A used part is just as old as the one that failed and will likely have the same heat-related fatigue, leading to the same failure symptoms down the road.
Pro Tip: Replace Cap and Rotor at the Same Time
The ignition module is located inside the distributor. To replace it, you must remove the distributor cap and rotor. Since these are also wear-and-tear items that are critical for ignition performance, it is highly recommended to replace them with new parts at the same time.
Replacement Cost Comparison
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | N/A | Generally discontinued and no longer available. |
| New Aftermarket (Standard Ignition) | $371.21 | The most common and recommended replacement option. |
| Used OEM | $50 - $100 | Not recommended due to age and high failure rate. |
| Shop Labor | $120 - $240 | Typically 1.0-1.5 hours of labor. |
Frequently Asked Questions
Where is the ignition control module located on a 1991-1994 Capri?
The ignition control module (or igniter) is located inside the distributor. You must remove the distributor cap, a plastic dust shield, and the rotor to access it.
Is replacing the ignition module a DIY job?

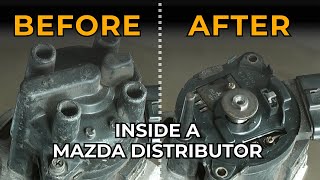

Yes, for a moderately skilled DIY mechanic. The process involves removing several small parts within the distributor. 🎬 Watch: A detailed walkthrough of the distributor disassembly process. Some guides suggest a jaw puller may be needed to remove the armature to get to the module, which can add complexity.
My car stalls when hot but restarts after cooling. Is it definitely the ignition module?
This specific symptom is the most common sign of a failing ignition module in many cars from this era, including the Capri. Heat causes the module's internal electronics to fail, and they begin working again once they cool down. While other parts can be affected by heat, the module is the primary suspect for this behavior.
Are there any recalls for the Capri ignition module?
No, there are no recalls or major Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) related to the ignition control module for the 1991-1994 Mercury Capri.
Helpful Videos
Technical Specifications
Located inside the distributor assembly.
