A Guide to Replacing Spark Plug Wires on the 1991-1994 Mercury Capri
Restore your Capri's ignition performance by choosing the right spark plug wire set for its Mazda-derived engine.
- The 1991-1994 Mercury Capri uses the same wire set for both base and XR2 turbo models.
- High-quality aftermarket brands like NGK and Standard Motor Products are excellent OE-equivalent choices for the Capri's Mazda-based engine.
- Symptoms of failure include rough idle, engine hesitation, and a potential Check Engine Light for misfires.
- Replacing spark plug wires is a simple DIY task; just be sure to swap them one at a time to maintain the correct firing order.
Understanding Your Capri's Ignition System
The 1991-1994 Mercury Capri uses a distributor-based ignition system with a single ignition coil. The spark plug wires connect the distributor cap to each of the four spark plugs in a specific firing order. Because the Capri's engine was designed by Mazda, it's important to use parts that meet or exceed the original equipment (OE) specifications for this unique vehicle. Both the base non-turbo and the XR2 turbo models use the same wire set, which simplifies ordering.
Symptoms of Failing Spark Plug Wires
When spark plug wires start to fail, the symptoms are often subtle at first but can become more severe. Old wires can't deliver the full electrical charge, which leads to incomplete combustion. You might notice one or more of the following signs:
- Rough Idle: The engine may shake or vibrate more than usual when stopped.
- Engine Hesitation: When you press the gas pedal, the car may stumble or hesitate before accelerating smoothly.
- Misfires: You may feel a stuttering or jerking from the engine, which can sometimes trigger the Check Engine Light.
- Reduced Fuel Economy: Incomplete combustion means wasted fuel, so you may find yourself filling up more often.
- Difficulty Starting: A weak spark can make it harder for the engine to start, especially in cold or damp weather.
- Visible Damage: A visual inspection may reveal cracks, melting, or burn marks on the wire insulation or boots. 🎬 Watch: How to test and replace your spark plug wires.
No Recalls or TSBs Found
Searches of the National Highway Traffic Safety Administration (NHTSA) database and Technical Service Bulletins (TSBs) did not find any specific recalls or bulletins related to the spark plug wires for the 1991-1994 Mercury Capri. 🎬 See a 1992 Capri XR2 survivor and its common issues. Recalls for this period were related to issues like transmission fluid lines and airbags.
Choosing the Right Aftermarket Spark Plug Wires
For a vehicle like the Capri, high-quality aftermarket wire sets offer excellent performance and value. Original Motorcraft parts are difficult to find and often unnecessary when top-tier aftermarket options are available. Here's a breakdown of the available brands:

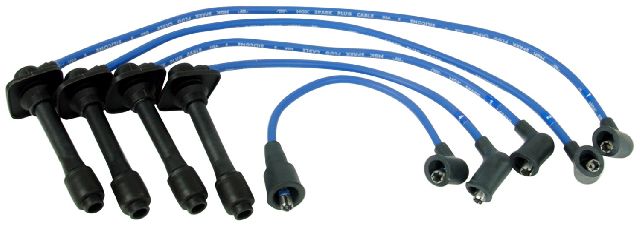

- NGK: Often an original equipment supplier for Japanese vehicles, NGK is an excellent choice for the Capri's Mazda-based engine. Their wires are known for high-quality materials, including high-temperature silicone jackets and precisely fitting boots, ensuring a reliable, long-lasting connection. They are considered a top-tier OE-equivalent replacement.

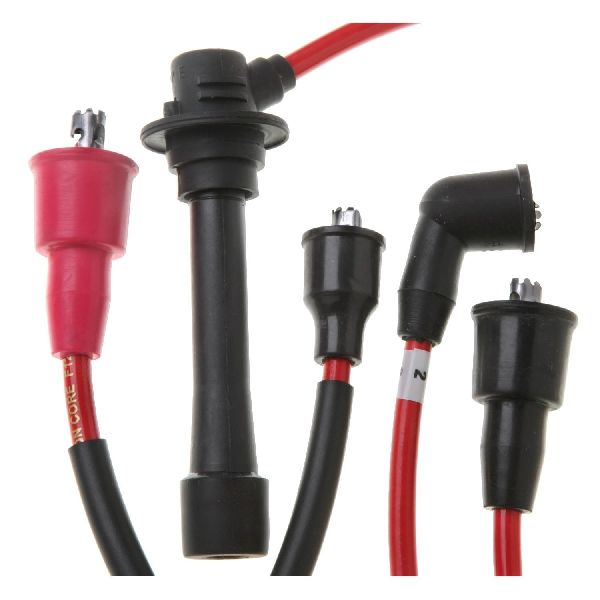

- Standard Motor Products (SMP): SMP is a well-respected brand in the aftermarket, known for producing reliable parts that often meet or exceed OEM quality. Their wire sets are a solid, dependable choice for a stock replacement and are trusted by many professional mechanics.
- MSD: MSD is primarily a performance brand, known for high-output ignition systems. Their Street Fire or 8.5mm Super Conductor wires are high-quality and will work well, but may be overkill for a stock Capri. They are a good option if you are planning other performance upgrades.

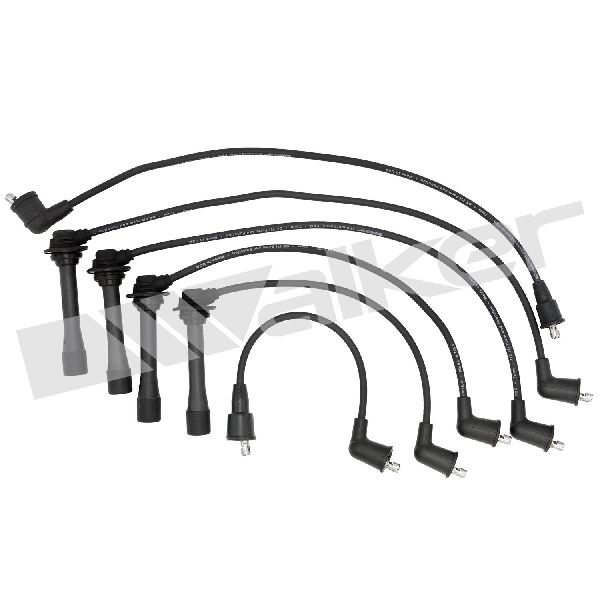

- Walker Products: Walker is a known manufacturer of engine management parts. Their ThunderCore wire sets are designed to meet or exceed OEM specifications and are a budget-friendly, reliable option for a daily driver.
Pro Tip: Check the Diameter
Most aftermarket wires for the Capri come in 7mm or 8mm diameters. A standard 7mm wire, like those from NGK or Standard, is perfectly adequate for a stock engine. Performance-oriented 8mm wires, like some from MSD, offer thicker insulation and can provide better protection against heat and electrical interference, but won't offer a noticeable performance gain on their own.
Cost Comparison for a New Spark Plug Wire Set
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (NGK, Standard, Walker) | $57.25 - $77.51 |
| New Aftermarket (MSD Performance) | $62.99 - $176.95+ |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Do I need different wires for my XR2 Turbo model?
No, the same spark plug wire set fits both the base non-turbo and the XR2 turbo models for the 1991-1994 Mercury Capri. The key is to ensure the wires are high quality to handle the demands of either engine.
How often should I replace my spark plug wires?
As a general rule, spark plug wires should be inspected during every tune-up and replaced if they show signs of wear, or every 60,000 to 100,000 miles. For an older vehicle like the Capri, it's a good idea to replace them if you don't know their age, as insulation breaks down over time regardless of mileage.
Is replacing spark plug wires a good DIY job?
Yes, this is one of the easiest maintenance tasks you can perform. The key is to replace one wire at a time to avoid mixing up the firing order. 🎬 Watch: Spark plug and wire replacement on a similar Mazda engine. The wires are different lengths and are designed to route neatly from the distributor cap to the correct spark plug.
What does the firing order mean?
The firing order is the sequence in which the spark plugs fire. For the 1.6L engine in the Capri, the distributor sends spark in a specific order to ensure the engine runs smoothly. A service manual for your vehicle will show the correct firing order and cylinder numbering. Replacing wires one-by-one prevents you from having to look this up.
Helpful Videos
Technical Specifications
The ignition system is a distributor-based system. Wires are typically 7mm in diameter with straight or 90-degree boots depending on the cylinder. The core is usually a wire-wound magnetic type for RFI suppression.
