A Guide to the Starter Motor for the 1991-1994 Mercury Capri
Solve your Capri's starting problems by learning to diagnose and choose the right replacement starter.
- For the 1991-94 Capri, a 'no-start when warm' issue is often a bad ground connection, not a bad starter.
- Always test the battery and clean all cable connections thoroughly before deciding to replace the starter.
- New aftermarket starters from brands like MPA are the most common and practical replacement option for this vehicle.
- There are no active recalls or technical service bulletins from NHTSA related to the starter motor for the 1991-1994 Mercury Capri.
Is Your Capri's Starter Failing? Common Symptoms
A failing starter motor usually gives you a few warning signs. If your Capri experiences any of these, the starter could be the culprit.
🎬 Watch: A visual guide to common bad starter symptoms- Single Loud Click: You turn the key, hear one loud 'CLICK' from the engine bay, but nothing else happens. This often means the starter's solenoid is working, but the motor itself isn't turning.
- No Sound at All: You turn the key and get complete silence. While this can be a battery issue, it can also mean the starter's solenoid or the electrical circuit has failed completely.
- Slow, Labored Cranking: The engine turns over, but it sounds weak and slow, as if the battery is dying. A worn-out starter motor can draw too much power, causing this symptom.
- Grinding Noise: If you hear a harsh grinding sound when trying to start the engine, it could be the starter's gear failing to engage properly with the flywheel, or the gear is already damaged.
A Capri-Specific Problem: The 'Warm No-Start' Issue
Many 1991-1994 Capri owners have chased a frustrating problem: the car starts perfectly when cold, but after driving and warming up, it only clicks when they try to restart it. After letting it sit for 15-20 minutes, it starts again. While this seems like a bad starter (a condition called heat soak), on the Capri it is very often caused by poor electrical grounds. Heat increases resistance in the electrical system, and a weak ground connection can prevent the starter from getting enough power. Before replacing your starter for this issue, clean the main battery ground connections, especially the large one on top of the transmission.
🎬 See why engines struggle to start when they are hotChoosing a New Aftermarket Starter
For a vehicle like the 1991-1994 Capri, finding a brand new Original Equipment Manufacturer (OEM) starter from Ford or Mazda is highly unlikely. The most practical and available option is a new aftermarket starter.
- Quality Tiers: The aftermarket has different quality levels. Brands like MPA (Motorcar Parts of America) offer their Quality-Built line, which is designed to meet or exceed original specifications and is a common choice. Other well-known brands that produce starters for the Capri include Bosch, Denso, and WAI Global.
- New vs. Remanufactured: You will see both 'new' and 'remanufactured' aftermarket starters. New starters are built with all-new components. Remanufactured starters are rebuilt OEM or aftermarket cores with new components to replace worn parts. Both are viable options, often with similar warranties.
Pro Tip: Check the Battery First!
The symptoms of a bad starter and a weak battery are very similar. Before spending money on a new starter, make sure your battery is fully charged and have it load-tested at an auto parts store. Also, clean any corrosion from the battery terminals and check that the cable connections are tight. This simple step can save you from replacing a part you don't need.
🎬 Watch: How to tell if your battery or starter failed| Part Type | Estimated Cost |
|---|---|
| New OEM | Not Generally Available |
| New Aftermarket (e.g., MPA) | $109.49 - $227.85 |
| Remanufactured | $80 - $180 |
| Used (Salvage Yard) | $40 - $80 |
| Shop Labor for Installation | $150 - $300 |
Frequently Asked Questions
Is it my starter or my battery?
If you can jump-start the car successfully, your battery is the likely problem. If you try to jump-start it and it still just clicks or does nothing, the starter is the most likely culprit. Also, check if your headlights are bright. If they are dim, it points to the battery; if they are bright but the car won't crank, it points to the starter.
Why does my Capri only click once when I turn the key?
A single, loud click is the sound of the starter solenoid engaging. It's trying to push the starter gear forward and send power to the starter motor. If the motor itself has failed internally (like worn brushes), it won't spin, and all you'll hear is that single click.
My car won't start when it's warm. Is it the starter?
On a 1991-1994 Capri, this specific issue is frequently caused by a bad ground connection, not a faulty starter. As the engine bay heats up, electrical resistance increases, and a poor ground can't supply enough power. Before replacing the starter, clean the battery terminals and the main ground strap on the transmission.
Are new aftermarket starters for the Capri reliable?
For an older vehicle, a quality aftermarket starter is a reliable and cost-effective choice. While OEM parts are often seen as the highest quality, they are not readily available for a car of this age. Stick with reputable aftermarket brands that offer a good warranty. Given the cost of labor, it's worth buying a quality part to avoid doing the job twice.
Helpful Videos
Technical Specifications

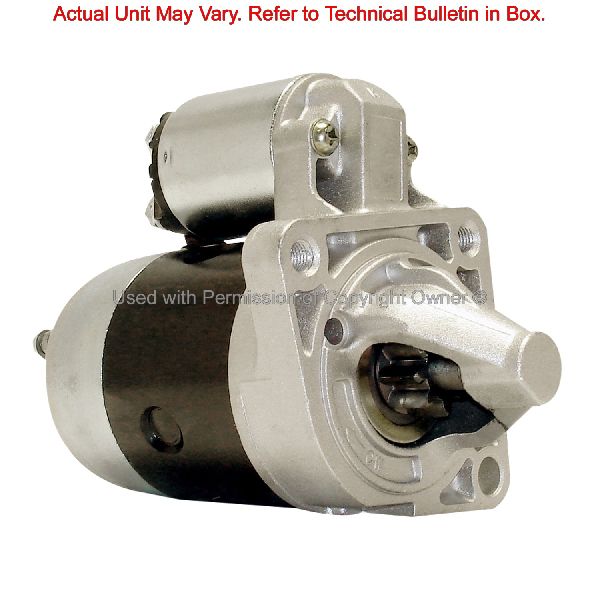

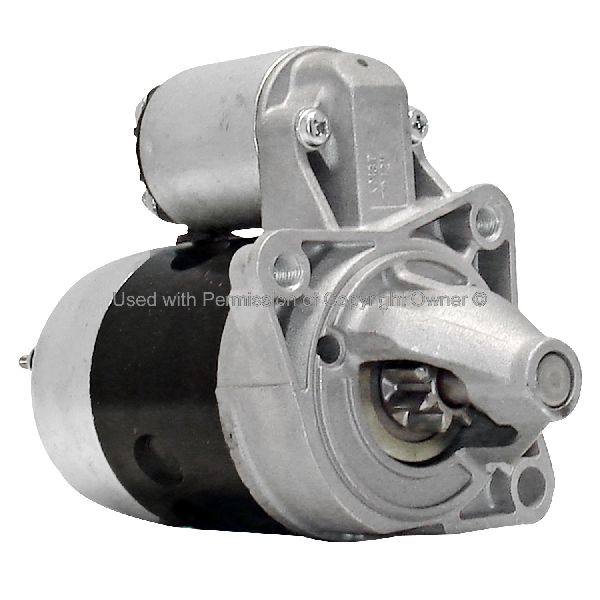

OEM Part Numbers: F1JY11002ARM B67618400A B67618400B F80218400 B63018400A
Designed for the 1.6L 4-Cylinder engine. Specifications are typically a 12-Volt, Clockwise rotation unit with an 8-tooth pinion gear. Both Direct Drive (DD) and Permanent Magnet Gear Reduction (PMGR) types may be available.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
