Chevrolet C2500 Oxygen Sensor Guide for 1988-1995 Models
Keep your classic C2500 running strong by understanding and replacing its oxygen sensor.
- Your 1988-1995 C2500 gasoline truck has only one upstream oxygen sensor.
- Symptoms of failure include bad gas mileage, rough idle, and a Check Engine Light with codes 13, 44, or 45.
- Choose a direct-fit sensor from a quality brand like ACDelco, Denso, or NGK for best results.
- Soak the old sensor in penetrating oil before removal to avoid breaking it in the exhaust pipe.
Is Your C2500's Oxygen Sensor Failing?
On these GMT400 trucks, an oxygen sensor doesn't always fail overnight. It often gets lazy, responding slowly and causing problems before the Check Engine Light comes on. If you're noticing a drop in fuel economy or a rougher-than-usual idle, a failing O2 sensor is a likely suspect. Since these trucks use an OBD1 diagnostic system, you'll need to check for specific codes by using a paperclip to jump the diagnostic port terminals or by using an OBD1 scan tool.
🎬 Watch: How to read these OBD1 codes using a paperclip.How Many Sensors Does My Truck Have?
For the 1988-1995 model years with gasoline engines (4.3L, 5.0L, 5.7L, 7.4L), your C2500 almost certainly has only one oxygen sensor. It is located "upstream," meaning before the catalytic converter. You will typically find it screwed into the exhaust Y-pipe where the two sides of the exhaust meet, or sometimes in the driver's side exhaust manifold. These are typically simple one-wire or three-wire heated sensors.
A Note on Diesel Engines
The 6.2L and 6.5L diesel engines available in this generation of C2500 trucks do not use oxygen sensors. This guide applies only to gasoline-powered models.
Choosing the Right Aftermarket Oxygen Sensor
For a vehicle of this age, you don't need to go to a dealership for a quality part. Many aftermarket brands offer excellent replacements that meet or exceed original specifications. Here’s a breakdown of the available brands.
Tier 1: OEM Quality or Better
- ACDelco: As the original equipment manufacturer for GM, ACDelco is the benchmark. However, many sources indicate that other companies like Denso now manufacture these parts for ACDelco, so you may receive a Denso sensor in an ACDelco box.
- Denso & NGK/NTK: These are top-tier Japanese brands known for making electronics and sensors for many car manufacturers worldwide. They are often considered equal to or better than the original parts and are a trusted choice in forums.
Tier 2: Reliable Aftermarket Options
- Bosch: A well-known German brand that invented the automotive oxygen sensor. While they are a huge name in auto parts, some GM truck owners have reported mixed results, though many use them without issue.
- Delphi: Formerly a part of GM, Delphi has a long history of making quality electronic parts. They are generally considered a solid, reliable choice.
- Walker Products: A respected aftermarket exhaust and sensor company. Their direct-fit sensors are a dependable, mid-range option.
Tier 3: Budget-Friendly
- DriveWire: This brand falls into the budget category. While it can save you money upfront, the long-term reliability may not match that of the higher-tiered brands.
Pro Tip: Direct-Fit vs. Universal
Always choose a "direct-fit" sensor. These come with the correct-length wire and factory-style electrical connector. A "universal" sensor requires you to cut your old connector off and splice it onto the new sensor, which can lead to connection problems down the road.
Cost of Replacing a C2500 Oxygen Sensor
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oxygen Sensor | $28 - $92 |
| Shop Labor | $60 - $120 |
| Total Professional Installation | $88 - $212 |
Frequently Asked Questions
Can I replace the oxygen sensor myself?
Yes, this is a very DIY-friendly job. The sensor is usually easy to access. The main challenge is that the old sensor can be rusted in place. It's highly recommended to spray the old sensor with penetrating oil a few hours or even a day before you try to remove it. You will also need a special oxygen sensor socket, 🎬 See this walkthrough on how to swap the sensor yourself. which has a slot for the wire to pass through.
What are the OBD1 codes for a bad oxygen sensor?

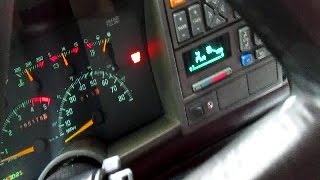

For these 1988-1995 GM trucks, the most common codes are Code 13 (Oxygen sensor circuit open), Code 44 (Lean exhaust indicated), and Code 45 (Rich exhaust indicated). 🎬 Watch: Troubleshooting a Code 45 rich condition on TBI trucks. Code 12 will also flash to show the diagnostic mode is active.
Do I need to disconnect the battery after replacing the sensor?
Yes. After installing the new sensor, it's a good practice to disconnect the negative battery terminal for about a minute. This will reset the ECM, clear the stored fault codes, and allow the computer to relearn its fuel trim strategy with the new, accurate sensor data.
Were there any recalls for the oxygen sensor on this truck?
No, there have been no specific recalls issued by the NHTSA for the oxygen sensor on the 1988-1995 Chevrolet C2500. While some Technical Service Bulletins (TSBs) exist for oxygen sensor issues on other GM vehicles, often related to wiring damage, none are specific to this model year range.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19473526 AFS21
Most models use a 1-wire or 3-wire heated oxygen sensor with a direct-fit connector. The thread size is typically M18-1.50.
