GMC C3500 Front Disc Brake Hardware Guide (1988-1995)
Don't let worn-out clips and pins ruin your brake job; here's what you need to know for your GMT400 truck.
- Always replace the disc brake hardware when changing brake pads to ensure quiet operation and even wear.
- Sticking caliper guide pins are a common failure point; ensure new pins are installed and properly lubricated.
- Brands like Dynamic Friction and Centric are generally well-regarded, while Raybestos has received mixed reviews recently.
- Verify the correct parts for your truck's specific configuration (Single vs. Dual Rear Wheel) to avoid fitment problems.
Why Replace Your Brake Hardware?
On a heavy-duty truck like the C3500, the brake system works hard. Over time, the metal clips lose their tension from heat cycles, and the guide pins can get gummed up with old grease, dirt, and rust. When this happens, the caliper can't slide freely. This can cause the brake pads to wear unevenly, make a lot of noise, and reduce your truck's ability to stop effectively. Replacing the hardware is a cheap and easy way to make sure your brake job lasts and performs as it should. It is highly recommended to install a new hardware kit every time you replace your brake pads and rotors.
Signs of Failing Disc Brake Hardware
Worn or seized brake hardware can cause problems that are often mistaken for bad pads or rotors. Knowing the signs can save you from a misdiagnosis.
- Brake Noise: Squealing, scraping, or clunking sounds when you apply or release the brakes are a common symptom. This happens when pads are loose or the caliper isn't moving smoothly.
- Uneven Brake Pad Wear: If you find the inner brake pad is worn down much more than the outer pad (or vice-versa), it's a classic sign of a stuck caliper guide pin. The caliper isn't sliding, so only one pad is doing most of the work.
- Vehicle Pulling to One Side: A seized caliper can cause the brake on one side to drag, making your truck pull to the left or right when you brake.
- Spongy or Soft Brake Pedal: While less common, a caliper that isn't applying pressure evenly can sometimes contribute to a poor pedal feel.
Check Your Axle Configuration!
The 1988-1995 C3500 was available with both Single Rear Wheels (SRW) and Dual Rear Wheels (DRW or "dually"). These configurations can sometimes use different brake components. Always verify that the hardware kit you are buying is correct for your specific truck's setup to avoid fitment issues.
Choosing the Right Aftermarket Hardware Kit
For a vehicle of this age, OEM hardware from GM is likely discontinued or very hard to find. The aftermarket is your best bet, offering a wide range of quality and price. Here’s a breakdown of the available brands.
Tier 1: Premium Aftermarket

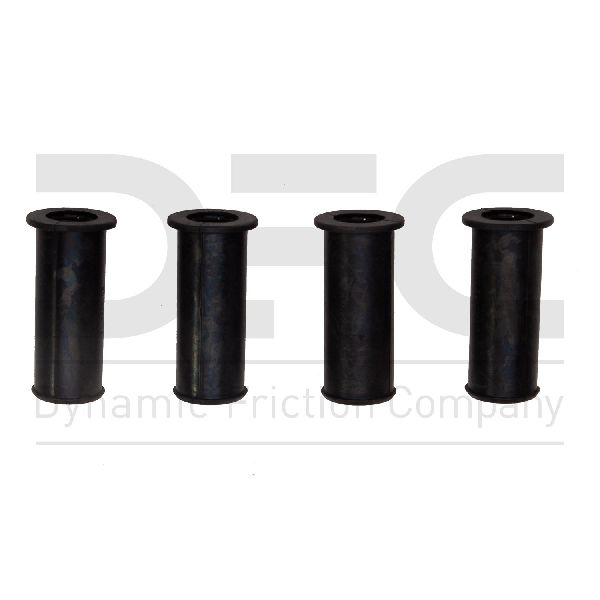

- Dynamic Friction (DFC): Often praised in forums for having higher quality components, such as more stainless steel parts compared to zinc-plated steel, which helps prevent rust. A solid choice for a long-lasting repair.
Tier 2: Standard Aftermarket
- Centric: A large, reputable manufacturer that also owns the StopTech performance brand. They offer reliable, OE-style hardware that will get the job done. Quality is generally considered good and consistent.

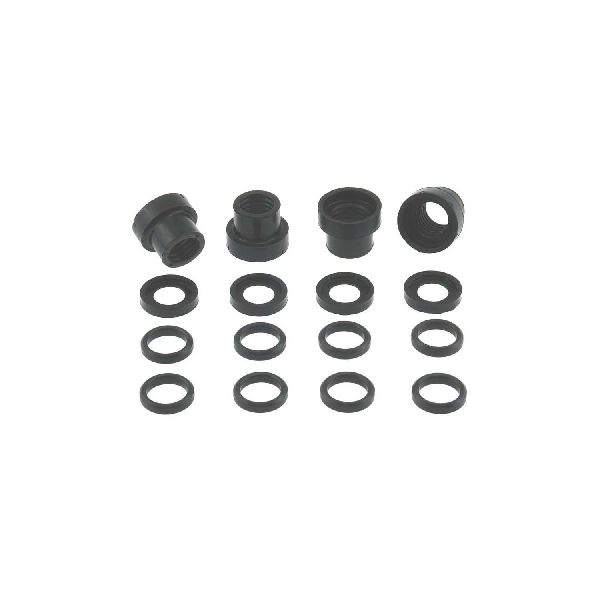

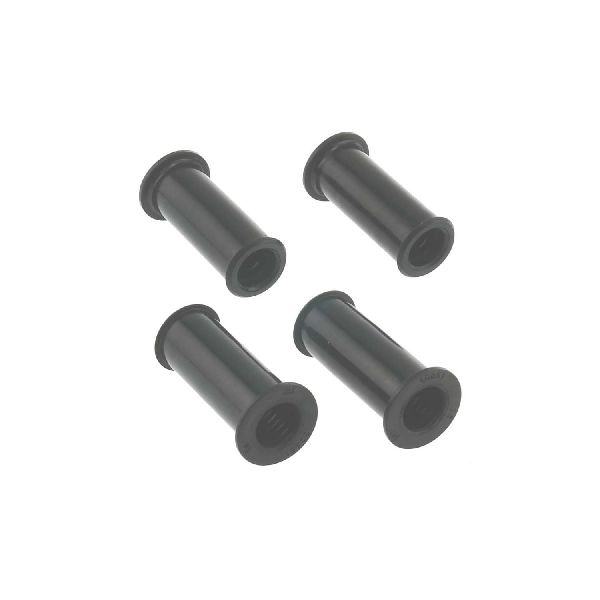

- Carlson: A well-known brand specializing in brake hardware. They are a common and dependable choice for guide pins, boots, and clip kits. Note that Carlson, Centric, and Raybestos are all part of the same parent company.
- Dorman: A widely available brand that produces a huge range of automotive parts. Their brake hardware is a reliable, standard replacement option you can often find at local auto parts stores.
Tier 3: Economy / Mixed Reviews
- Raybestos: This brand used to be a top choice for many mechanics, but recent forum discussions suggest a decline in quality control, with some users reporting poor fitment and noise issues with their newer products. While their hardware may be perfectly fine, it's a brand that currently has mixed feedback.
Pro Tip: Clean and Lubricate
When installing your new hardware, make sure the surfaces on the caliper bracket where the clips sit are cleaned thoroughly with a wire brush. This removes any rust or debris that could prevent the new pads from sliding freely. Use a high-temperature silicone brake lubricant on the caliper guide pins and on the back of the brake pads where they contact the caliper piston and bracket. Do not use anti-seize, and never get lubricant on the friction material of the pads or the rotor surface.
Cost of New Disc Brake Hardware Kits (1988-1995 GMC C3500)
| Part Type | Estimated Cost |
|---|---|
| Aftermarket Disc Brake Hardware Kit | $1.08 - $34.52 |
| Shop Labor for Installation | $100 - $200 (as part of a full brake job) |
| OEM Disc Brake Hardware Kit | Varies, often discontinued |
| Used OEM | Not Recommended |
Frequently Asked Questions
Do I have to replace the hardware with every brake job?
Yes, it is highly recommended. The cost of a hardware kit is very low compared to the cost of the pads and rotors. Old hardware can cause your new brakes to perform poorly and wear out prematurely.
What is included in a typical disc brake hardware kit?
Most kits include the anti-rattle clips that fit onto the caliper bracket. More comprehensive kits will also include new caliper guide pins and the rubber boots that protect them.
Are there any recalls on the brakes for this truck?
No recalls were found specifically for the disc brake hardware. However, a major recall was issued in 1999 for 1992-1995 GM trucks and SUVs (including the Suburban, which is on a related platform) for problems with the Kelsey-Hayes EBC4 anti-lock brake system that could cause intermittent brake failure. Another recall for some 1995-1997 C35 models involved power steering hoses related to the hydroboost brake system.
My truck has a hydroboost brake system. Does that change the hardware I need?
No, the hydroboost system (which uses power steering pressure to assist the brakes) does not change the front disc brake hardware. The calipers, pads, and hardware at the wheels are the same regardless of whether you have a vacuum or hydroboost brake booster.
Technical Specifications
Kit components vary. Basic kits include anti-rattle clips. Comprehensive kits include clips, caliper guide pins, and protective boots. Ensure kit is specified for front disc brakes on 1988-1995 GMC C3500 models.
