Engine Water Pump Guide for the 1988-1995 GMC G2500 Van
Keep your G2500's engine from overheating by understanding the signs of water pump failure and how to choose a quality replacement.
- The most critical step is identifying whether you need a standard or reverse rotation pump before ordering.
- Common failure signs include coolant leaks from the weep hole, engine overheating, and grinding noises from the front of the engine.
- While replacing the water pump, it is highly recommended to also replace the thermostat, hoses, and drive belt to ensure system reliability.
- Premium aftermarket brands like ACDelco and Gates offer reliability comparable to original parts and are a safe bet for longevity.
Is Your G2500's Water Pump Failing?
A failing water pump gives several warning signs before it quits completely. Ignoring them can lead to expensive engine damage from overheating. If you notice any of these symptoms, it's time to inspect your cooling system.
Key Failure Symptoms
- Coolant Leaks: This is the most common sign. You may see puddles of green or orange fluid under the front-center of your van. The leak often comes from a small "weep hole" on the bottom of the pump, which is designed to leak when the internal seal fails.
- Engine Overheating: If your temperature gauge is climbing higher than normal or fluctuating, the pump may not be circulating coolant effectively. If you see steam coming from under the hood, pull over immediately as this is a sign of severe overheating.
- Grinding or Whining Noises: A high-pitched whining or a rough grinding sound from the front of the engine can mean the pump's internal bearings are worn out. This noise may change with engine speed.
- Wobbly Pulley: If you can safely inspect the front of the engine (when it's off), check the water pump pulley. If it feels loose or wobbly when you try to move it, the bearing has failed.

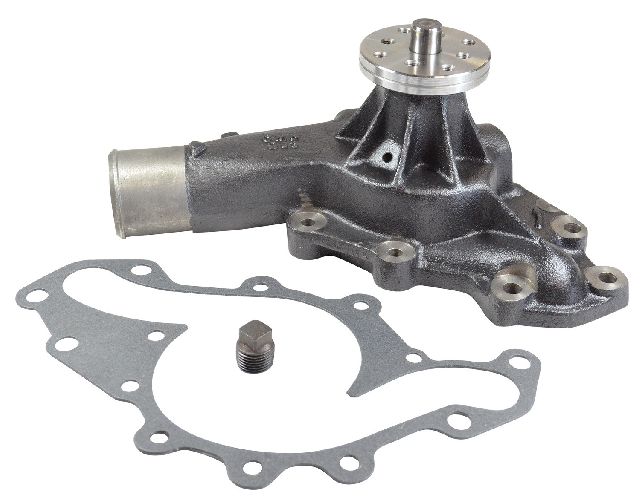

Choosing the Right Aftermarket Water Pump
For a vehicle from this era, aftermarket parts are plentiful and often provide excellent quality. The original ACDelco parts are a benchmark, but other brands offer comparable or even specialized performance. Here’s a breakdown of your options:
- Premium OE-Style Brands (ACDelco, Gates): ACDelco is GM's official parts brand, and their pumps are often considered a direct replacement for the original. Gates is a highly respected name in cooling systems, known for quality that meets or exceeds original specifications. These are excellent choices for owners who want reliability and a precise fit.
- Quality Aftermarket Brands (GMB, Dayco, Melling): Brands like GMB are large, global manufacturers that supply parts to automakers directly, offering a great balance of quality and price. Dayco and Melling also have long histories of producing dependable aftermarket cooling and engine components. These are solid, reliable choices for daily drivers and work vans.
- Performance Brands (Edelbrock, Proform, PRW): These brands often specialize in high-performance parts. Their water pumps may feature aluminum construction for lighter weight or high-flow designs to improve cooling in modified or hard-working engines. They are a good option if you've upgraded your G2500's engine or use it for heavy towing.
- Budget-Friendly Brands (US Motor Works, Store Brands): These pumps can be a cost-effective solution, but quality can be inconsistent. While they meet basic requirements, forum discussions suggest their longevity might not match premium brands. They are best suited for temporary fixes or if budget is the primary concern.
Pro Tip: Check Rotation Direction!
During the 1988-1995 period, GM used both standard (clockwise) and reverse (counter-clockwise) rotation water pumps, depending on the engine and belt system (V-belt vs. Serpentine). Installing the wrong one will cause the engine to overheat. Check the belt routing diagram on your fan shroud or note how the belt contacts the pulley. If the grooved side of the belt drives the pump, you need a standard rotation pump. If the smooth, flat side of the belt drives it, you need a reverse rotation pump.
Cost to Replace a 1988-1995 GMC G2500 Water Pump
The cost can vary based on your engine and local labor rates. The job is manageable for an experienced DIY mechanic.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $53 - $279 |
| Shop Labor | $317 - $465 |
| Total Professional Replacement | $370 - $744 |
Frequently Asked Questions
Should I replace other parts with the water pump?
Yes. Since you're already working in the area, it's highly recommended to replace the thermostat, radiator hoses, heater hoses, and the drive belt. It's also a good time to inspect the fan clutch for wear. This saves you from having to do a similar job again soon.
Is it safe to drive with a leaking water pump?
No. A small leak can suddenly become a major failure, causing the engine to overheat within minutes. This can lead to warped cylinder heads or a seized engine, which are far more expensive repairs. It's best to get the vehicle serviced as soon as possible.
What kind of coolant should I use?
For these older GM trucks, a conventional green IAT (Inorganic Acid Technology) antifreeze is typically used. Always mix it 50/50 with distilled water, or buy a premixed solution. Do not use tap water, as its minerals can cause corrosion and buildup in the cooling system. Always flush the old coolant out completely when installing a new pump.
Do I need sealant for the gaskets?
Yes, it's a good practice. While new pumps come with gaskets, applying a thin layer of RTV sealant to the mounting surfaces helps ensure a leak-free seal. Some of the mounting bolts may also pass through into the water jacket, so applying sealant to their threads is recommended to prevent leaks.
Technical Specifications
Rotation: Standard or Reverse (Varies by engine and belt system). Gasket Material: Paper, often with RTV sealant recommended. Drive System: Serpentine or V-Belt.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
