Engine Water Pump Guide for 1988-1995 Toyota Pickup
Keep your legendary Toyota truck's engine cool and reliable with the right water pump.
- Identify your engine first: the 2.4L 22R-E and 3.0L 3VZ-E use very different water pumps and replacement procedures.
- For the 3.0L V6, always replace the timing belt, tensioner, and idler pulleys with the water pump to save on future labor costs.
- Choose an Aisin or GMB branded aftermarket pump for OEM quality and longevity without the dealer price tag.
- Do not drive if the engine is overheating; you risk severe and expensive engine damage.
Engine Differences Matter
Before buying a water pump, you need to know which engine your 1988-1995 Toyota Pickup has. They came with two common engines in North America, and the water pumps are very different.

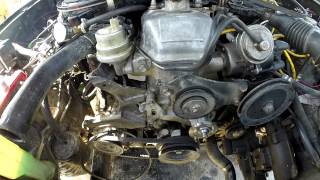

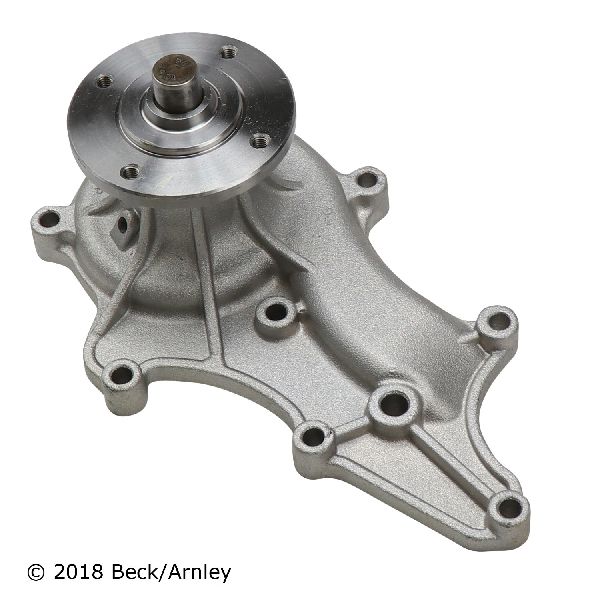

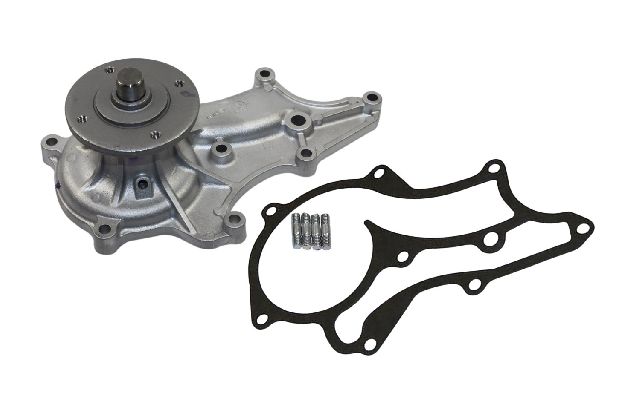

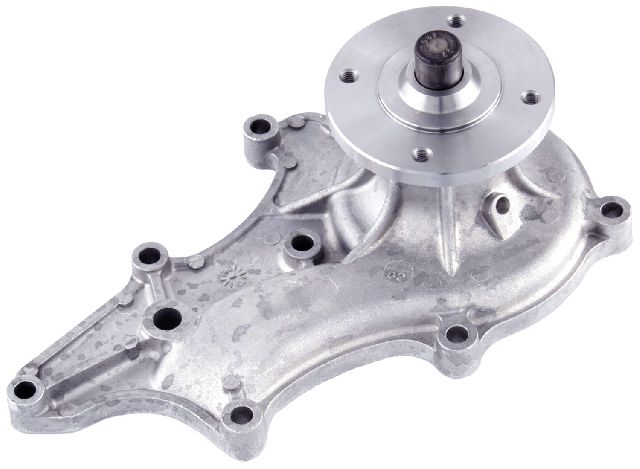

- 2.4L 4-Cylinder (22R-E): This is a very common engine. The water pump is mounted on the front of the engine and is driven by a v-belt. It's a relatively straightforward replacement. 🎬 See how to inspect and replace the 22R-E water pump.

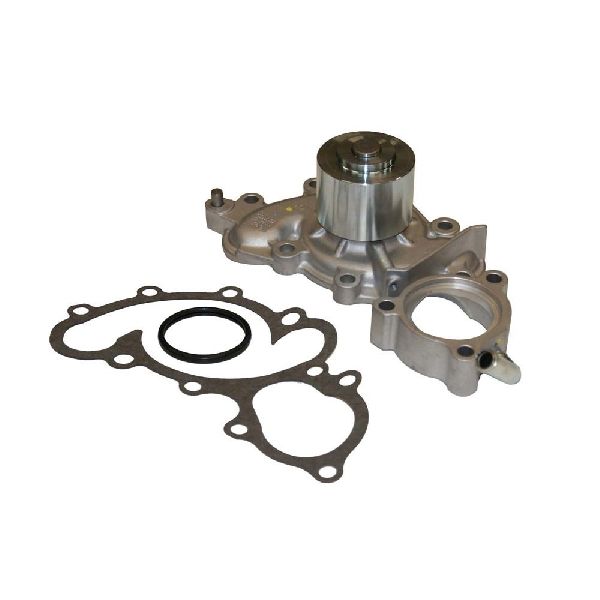

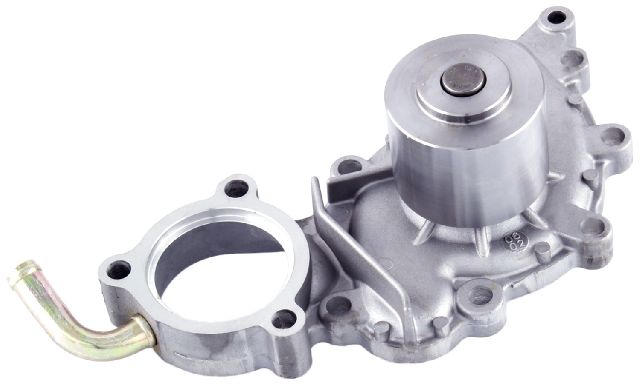

- 3.0L V6 (3VZ-E): On this engine, the water pump is located behind the timing belt cover and is driven by the timing belt. This makes the replacement much more difficult and labor-intensive.
Symptoms of a Failing Water Pump
A bad water pump will usually give you a few warning signs before it fails completely. Ignoring them can lead to your truck overheating and leaving you stranded.
- Coolant Leaks: This is the most common symptom. You might see puddles of green, pink, or orange fluid under the front of your truck. Look for drips or white, crusty residue around the pump itself. Many pumps have a "weep hole" that is designed to leak a small amount when the internal seal starts to fail, which is a clear sign it's time for a replacement. 🎬 Watch this video to identify common symptoms of a failing pump.
- Overheating Engine: If your temperature gauge is climbing higher than normal, the water pump may not be circulating coolant effectively. An overheating engine can cause severe damage, like a warped cylinder head or blown head gasket.
- Whining or Grinding Noise: A high-pitched whining or grinding sound from the front of the engine can mean the bearings inside the water pump are worn out. The noise may change with engine speed.
- Wobbly Fan Pulley: On the 22R-E engine, the fan is attached to the water pump. If you can wiggle the fan back and forth, the water pump bearing is bad and the whole unit needs to be replaced.
Pro Tip for V6 Owners
If you have the 3.0L V6 (3VZ-E), the water pump is driven by the timing belt. Because of the high labor cost to access this area, it is highly recommended to replace the water pump, timing belt, tensioner, and idler pulleys all at the same time. Doing so prevents you from having to pay for the same difficult job twice.
Choosing the Right Aftermarket Water Pump
For these older Toyota Pickups, you have excellent options for both OEM and aftermarket parts. The original manufacturer for Toyota was Aisin, a well-respected Japanese company.
- OEM-Quality Aftermarket (Aisin, GMB): Aisin water pumps are sold in the aftermarket and are considered the best choice for quality and longevity, often identical to the part from a Toyota dealer. GMB is another Japanese manufacturer often viewed as a high-quality alternative. These brands provide the best fit and longest life.
- Reputable Aftermarket (Gates, Dayco): Gates and Dayco are well-known for belts and cooling system components. Their water pumps are generally considered reliable, mid-tier options. They often sell complete timing kits for the V6 that include the water pump, which can be a convenient and cost-effective choice.
- Standard/Economy Aftermarket (US Motor Works, WJB): These brands are typically more budget-friendly. While they can be a good option if cost is the primary concern, their lifespan may not be as long as the premium brands.
A Note on "OEM" vs. Aftermarket Aisin
You can buy an Aisin water pump in a Toyota box from a dealer, or an Aisin pump in an Aisin box from a parts store. They are often the exact same part, sometimes with the "Toyota" name ground off the casting on the aftermarket version. Buying the Aisin-branded part is a great way to get OEM quality without the dealer markup.
Cost of Replacing a Toyota Pickup Water Pump
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $40 - $107 |
| New OEM Water Pump (Dealer) | $78 - $142 |
| Shop Labor (22R-E 4-Cylinder) | $150 - $250 |
| Shop Labor (3VZ-E V6) | $527 - $773 |
Note: Labor costs for the V6 are much higher because the water pump is behind the timing belt cover. Prices are estimates and will vary by location and repair shop.
Frequently Asked Questions
Are there any recalls for the 1988-1995 Toyota Pickup water pump?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the water pump on these vehicles.
Should I replace my thermostat and radiator hoses at the same time?
Yes, it is an excellent idea. You have to drain the coolant to replace the water pump, so it's the perfect time to replace the thermostat and any old, soft, or bulging radiator hoses. This is inexpensive insurance against future cooling system problems.
What kind of coolant should I use?
For these older Toyotas, a traditional green IAT (Inorganic Additive Technology) coolant is appropriate. However, many owners now use the modern Toyota-specific red or pink long-life coolants. The most important thing is to not mix different types of coolant and to completely flush the system if you are changing types.
How difficult is the replacement?
For the 2.4L 22R-E engine, it's a moderately easy job for a DIY mechanic with basic tools. For the 3.0L 3VZ-E, it is a difficult and advanced job because it requires removing the timing belt. If you are not experienced with timing belt replacements, this job is best left to a professional mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16100-39346 16100-39345 16100-69225 16100-69125
Varies by engine. The 2.4L 22R-E pump is v-belt driven. The 3.0L 3VZ-E pump is timing-belt driven.
