Choosing the Right Spark Plug Wire Set for Your 1988-1995 Toyota Pickup
Get your 22R-E or 3VZ-E running smoothly by picking the best new wires for the job.
- Stick with OEM-equivalent brands like Denso or NGK for the best reliability and fit.
- Always buy the correct wire set for your specific engine (4-cylinder 22R-E or V6 3VZ-E).
- Replace wires one at a time to avoid mixing up the firing order, which can prevent the engine from running.
- Consider replacing your spark plugs at the same time for a complete ignition tune-up.
Signs of Failing Spark Plug Wires on Your Toyota Pickup
The ignition wires on the 22R-E and 3VZ-E engines are durable, but they don't last forever. Heat, oil, and age break down the insulation and internal conductors. When this happens, you'll notice your truck isn't running right. Common symptoms include a rough idle, hesitation when you step on the gas, and a noticeable loss of power. You might also experience engine misfires, which can feel like a stutter or stumble, especially under load. Hard starting and a drop in fuel economy are also tell-tale signs 🎬 Watch: 8 common signs of bad spark plug wires that your wires are due for replacement.
Visible Damage is a Clear Sign
Pop the hood and look at the wires. If you see any cracks in the outer insulation, burn marks, or visible corrosion on the metal ends (terminals), it's time for a new set. Sometimes, the damage is a small pinhole you can't see. A quick test is to start the engine in the dark and spray a fine mist of water on the wires; if you see small blue sparks arcing to metal parts of the engine, the wires are shot.
Choosing the Right Aftermarket Wire Set
When shopping for new spark plug wires, the most important thing is to buy the correct set for your engine. The 4-cylinder 22R-E and V6 3VZ-E use completely different wire sets. Beyond that, aftermarket brands generally fall into three quality tiers.
Tier 1: OEM-Equivalent Brands

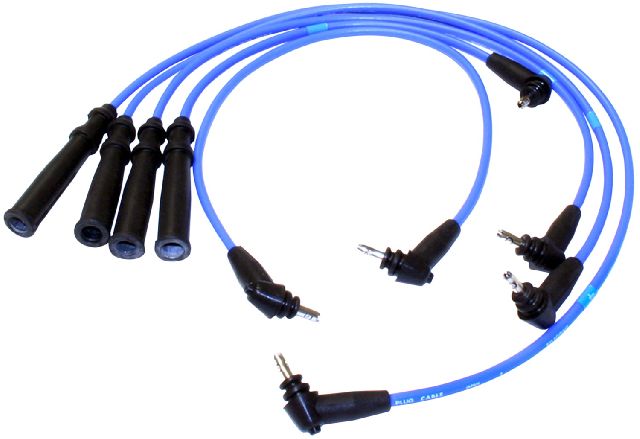

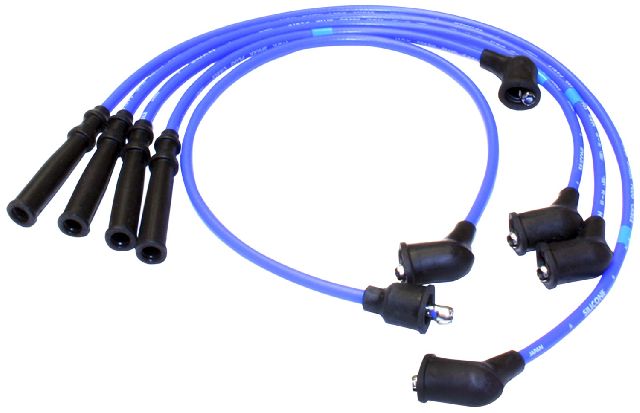

Brands: Denso, NGK
For a stock Toyota Pickup, you cannot go wrong with Denso or NGK. Denso was the original equipment manufacturer (OEM) for many of Toyota's ignition parts, and their quality is trusted. NGK is widely considered to be of equal quality and is a favorite among Toyota owners. These brands provide wires that fit perfectly, have the correct resistance, and offer the same durability as the parts your truck came with from the factory. For most owners, sticking with Denso or NGK is the smartest and safest choice for long-term reliability.
Tier 2: Performance Brands
Brands: MSD, Granatelli, Taylor Cable
If you have performance upgrades like an aftermarket ignition coil or are looking for every bit of performance, brands like MSD are a popular option. Their wires, like the 8.5mm Super Conductor series, feature very low resistance, which they claim delivers a stronger spark. While a stock engine won't see huge gains, these high-quality, durable wires are a solid choice for modified trucks or owners who want a more robust wire set.
Tier 3: Standard Replacement Brands

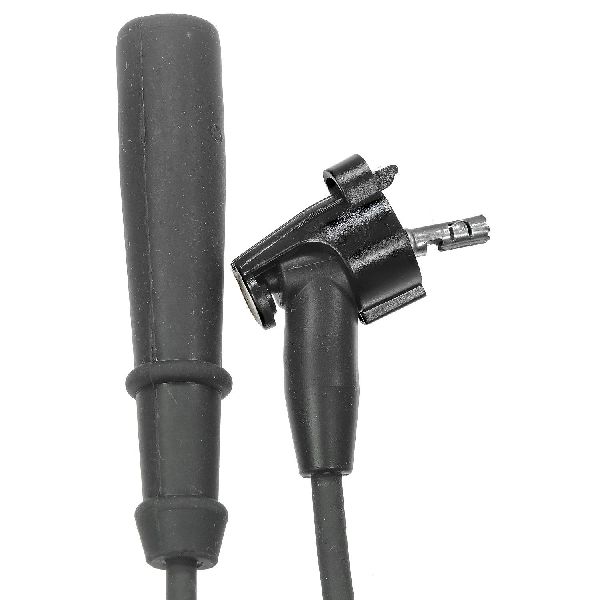

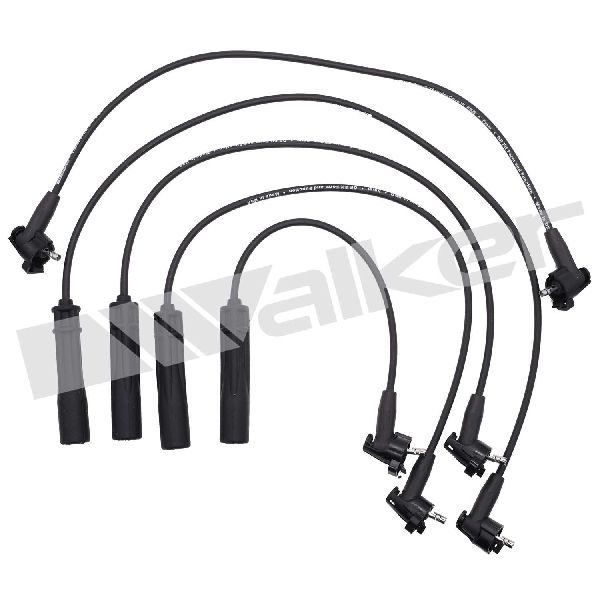

Brands: Standard Wires, Walker Products
These brands offer a functional, budget-friendly solution to get your truck back on the road. They meet the basic requirements for a replacement set and are a definite improvement over old, worn-out wires. While they may not have the same reputation for longevity or perfect fit as Denso or NGK, they are a viable option if cost is your primary concern. However, many experienced owners report the best results by spending a little more for an OEM-equivalent set.
| Tier | Brands | Estimated Price Range |
|---|---|---|
| OEM-Equivalent | Denso, NGK | $45 - $95 |
| Performance | MSD, Granatelli, Taylor Cable | $60 - $93 |
| Standard Replacement | Standard Wires, Walker Products | $31 - $55 |
Pro Tip: Replace One Wire at a Time
To avoid mixing up the engine's firing order, replace only one wire at a time. Start with the longest wire, remove it, match its length to a wire in the new set, and install the new one. Then move to the next. This simple trick prevents a major headache and ensures your truck will start right up after the job is done.
🎬 See this 22R-E spark plug and wire installation walkthroughFrequently Asked Questions
Do I need special tools to change my spark plug wires?
No. This is a tool-free job for the most part. A pair of pliers might be helpful to grip stubborn boots, but you should always pull from the boot and not the wire itself. A little bit of dielectric grease for the inside of the new boots is highly recommended to ensure a good seal and make future removal easier.
Should I replace my spark plugs at the same time?
Yes, it's highly recommended. The spark plug wires have to be removed to access the spark plugs, so it makes sense to do both jobs at once. 🎬 Pro tip: How to easily access the 3VZ-E #5 spark plug This is considered a standard tune-up procedure. Like the wires, stick with Denso or NGK plugs for the best results on these engines.
What's the difference between wires for the 22R-E and 3VZ-E engines?
The 22R-E is a 4-cylinder engine, so its wire set includes four spark plug wires and one coil wire. The 3VZ-E is a V6, so its set has six spark plug wires and a coil wire. The lengths and boot angles are specific to each engine, so they are not interchangeable. Always confirm your engine type before ordering.
Are there any recalls for the spark plug wires on these trucks?
No. There are no active recalls or technical service bulletins (TSBs) from Toyota or the NHTSA for spark plug wire failures on the 1988-1995 Pickup. Failures are due to normal wear and tear over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90919-21501 90919-21453 90919-21430 90919-29055 90919-15027
Varies by engine. The 22R-E (2.4L 4-Cylinder) set contains 4 spark plug wires and 1 coil wire. The 3VZ-E (3.0L V6) set contains 6 spark plug wires and 1 coil wire.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
