Chevrolet S10 Starter Replacement Guide for 1988-1996 Models
Everything you need to know before buying and replacing the starter on your 1988-1996 Chevy S10.
- Always check your battery and ground connections before condemning the starter; a bad connection can mimic a failed part.
- A single click often points to the solenoid, while rapid clicking points to the starter motor itself.
- Be prepared for a tight fit during replacement; jacking up the transmission slightly can create needed clearance on some models.
- Due to heat from the exhaust, consider adding a starter heat shield to prolong the life of your new part.
Is Your S10 Starter Failing?
A bad starter can leave you stranded. Before you blame the starter, always make sure your battery is fully charged and the terminals are clean and tight. A weak battery can mimic starter problems. If the battery is good, look for these common symptoms of a failing starter:
🎬 Watch: Hear the specific sounds a failing starter makes- Single Loud Click: You turn the key and hear one sharp click, but the engine doesn't crank. This often points to a failed starter solenoid.
- Rapid Clicking Noise: A fast clicking sound means the solenoid is trying to work, but the starter motor itself is likely dead or not getting enough power.
- No Sound at All: If there's no click and no crank, the problem could be the solenoid, the ignition switch, or the neutral safety switch.
- Slow, Labored Cranking: The engine turns over very slowly, like the battery is weak, even when it's fully charged. This means the starter motor is wearing out and drawing too much electricity.
- Grinding or Whirring Noise: A harsh grinding sound during or after cranking can mean the starter gear is damaged or not aligning correctly with the engine's flywheel.
Known Issue: Heat Damage
The starter on some S10 models is located close to the hot exhaust pipe. Over time, this heat can damage the starter and solenoid, leading to premature failure. Some owners add an aftermarket heat shield or exhaust wrap to protect the new starter, especially if they have experienced repeated failures.
Choosing the Right Aftermarket Starter
You don't need to buy an expensive OEM starter from a dealer. Aftermarket brands offer a good balance of quality and price. They generally fall into a few categories:
Premium New Aftermarket (Bosch, Denso)
Bosch and Denso are major original equipment manufacturers for many car brands and have a strong reputation for quality and reliability. While they may be at the higher end of the aftermarket price range, they are built to strict standards with all-new components, making them a top choice for longevity.
Standard New Aftermarket (WAI Global)
Brands like WAI Global offer completely new starters, not remanufactured ones. They emphasize that their parts are tested to meet original specifications for performance and durability. Reviews are often positive, with many users finding them to be a great value. However, as with any aftermarket part, occasional issues with fitment or defects have been reported.

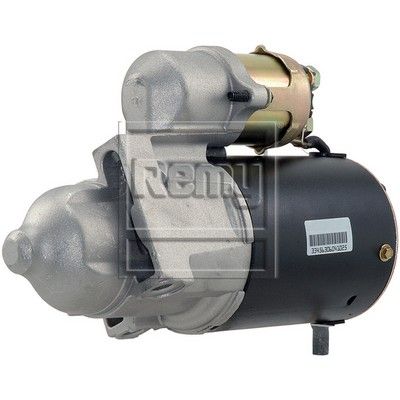

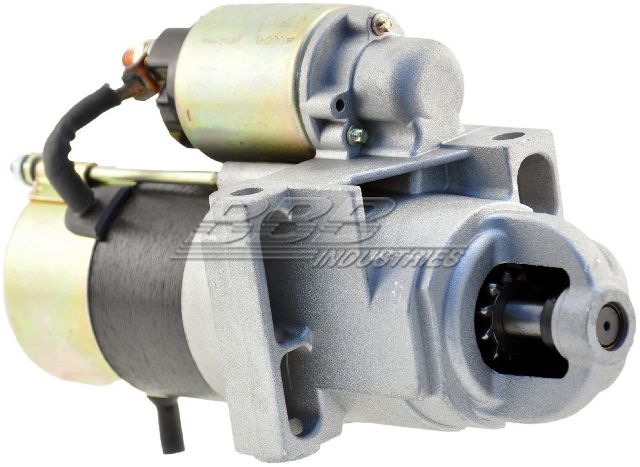

Remanufactured (BBB Industries, Remy)
Remanufactured starters are original units that have been rebuilt with new internal wear components. Brands like BBB Industries and Remy are major suppliers to parts stores. The main advantage is a lower cost. However, quality can be inconsistent depending on the rebuilder, with some forum users reporting premature failures. A remanufactured starter can be a good budget option, especially if it comes with a good warranty.
Pro Tip: Check Your Grounds First!
Before replacing your starter, inspect the main ground strap that runs from the engine block to the truck's frame. A corroded or loose ground can cause a no-start condition that acts just like a bad starter. Cleaning this connection is a simple step that could save you the cost of a new part.
Cost of Replacing a 1988-1996 Chevrolet S10 Starter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $108.90 - $226.98 |
| Remanufactured Starter | $70 - $150 |
| Shop Labor | $125 - $250 |
| Total Estimated Cost | $195 - $500+ |
Frequently Asked Questions
Is it hard to replace the starter on an S10?
It is a manageable DIY job for someone with mechanical experience, but it can be tricky due to tight spaces. You will need to safely lift the front of the truck. Removing the driver's side wheel provides much better access. On some models, especially 4WD, you may need to jack up the back of the transmission slightly to get enough clearance to remove the starter bolts and pull the unit out.
🎬 See this step-by-step guide for replacing your S10 starterDo I need shims for my new starter?
Maybe. Some original GM starters used thin metal shims to ensure proper spacing between the starter gear and the flywheel. Many aftermarket starters are designed not to need them. If your old starter has shims, keep them and install them with the new starter. If you hear a grinding noise after installation, you may need to add or remove shims to get the correct clearance.
🎬 Watch: How to properly shim a Chevy starterWhat's the difference between a click and a grind?
A single, loud click usually means the starter solenoid is engaging, but the motor isn't turning, pointing to a bad solenoid or a poor electrical connection. A grinding noise means the starter motor is spinning, but its gear is not meshing correctly with the engine's flywheel, which can damage both parts.
Should I buy a new or a remanufactured starter?
A new starter from a quality brand like Bosch, Denso, or WAI Global is generally more reliable as all components are new. A remanufactured starter is a cheaper option but carries a higher risk of premature failure, as the quality depends on the rebuilder. If your budget is tight, a remanufactured unit with a lifetime warranty can be a good choice.
Helpful Videos
Technical Specifications
The 1988-1996 S10 used a few different starter designs, including direct-drive and gear-reduction types. The OEM supplier is ACDelco. Some installations may require the use of shims for proper alignment with the flywheel, while many aftermarket units do not. The starter is located on the driver's side of the engine, mounted to the bell housing.
