Dodge Ramcharger 1988-1996 Vehicle Speed Sensor Guide
Fix your bouncing speedometer and hard shifting transmission by understanding and replacing your Vehicle Speed Sensor.
- A bad VSS is a very common failure on these trucks and directly causes both speedometer and automatic transmission shifting problems.
- Replacement is a simple, beginner-friendly DIY job that takes less than 30 minutes.
- The sensor is located on the driver's side of the transmission (2WD) or transfer case (4WD).
- Choosing a quality aftermarket brand like Standard Ignition or Walker Products is recommended for reliability.
Is Your Ramcharger's Speedometer Acting Up?
A common issue on older Dodge Ramchargers is a faulty Vehicle Speed Sensor (VSS). When this sensor starts to fail, you'll notice some very specific problems. The most obvious sign is a speedometer that bounces around, reads incorrectly, or stops working altogether. Because the VSS is so important for transmission function, you will likely experience issues with your automatic transmission, such as harsh, late, or erratic shifting. Your cruise control will also stop working if it can't get a reliable speed reading from the sensor.
Choosing the Right Aftermarket VSS
Original factory (OEM) parts for a Ramcharger of this era can be difficult to find. Aftermarket sensors are the most practical and widely available option. Quality can vary, so it's important to choose a reputable brand. The VSS is not a part where you want to choose the cheapest option, as a low-quality sensor can fail quickly or provide an inaccurate signal, leading to the same shifting problems you were trying to fix.
Here's a breakdown of common aftermarket brand tiers:

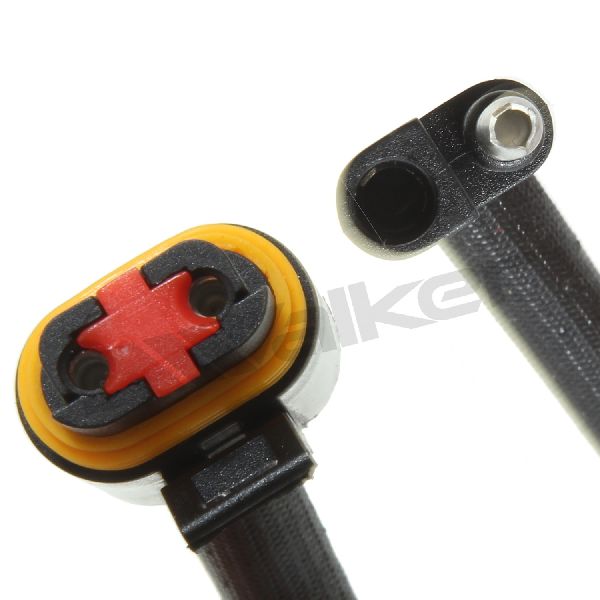

- Good Quality (Standard Ignition, Walker Products): Brands like Standard Ignition (and their True-Tech line) and Walker Products are well-known in the aftermarket and are generally considered reliable, direct-fit replacements. They manufacture their sensors to meet or exceed original specifications and perform extensive testing. These are solid choices for most owners looking for a dependable, long-lasting part.
- Value-Oriented (Global Parts): These brands offer a more budget-friendly option. While they can get the job done, their longevity and the precision of their signal may not match the higher-tier brands. For a critical sensor like the VSS that affects drivability, investing a little more in a known brand is often worth it.
Pro Tip: Check the Location First
Before ordering, it's a good idea to get under your truck and look at the sensor. On 2WD models, the VSS is located on the driver's side of the transmission's rear extension housing. On 4WD models, it's in the same relative position but on the transfer case extension housing. It's a simple screw-in sensor with an electrical connector. Confirming its location will ensure you're replacing the right part.
Cost of Replacing a Ramcharger VSS
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket VSS | $30 - $85 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $80 - $185 |
Costs are estimates and can vary based on your location, vehicle condition, and the specific parts used.
Known Issues, Recalls, and TSBs
For vehicles of this age, formal recalls or Technical Service Bulletins (TSBs) are rare and none were found specifically for the 1988-1996 Ramcharger VSS during our search. However, the most common known issue, widely reported by owners, is the failure of the sensor itself, leading to the speedometer and shifting problems described. Sometimes, the plastic gear that drives the sensor can wear out or break, which would require more in-depth repairs. Another point of failure can be the wiring connector, which can become brittle or corroded over time.
Frequently Asked Questions (FAQ)
Is this a difficult part to replace myself?
No, this is an excellent DIY job for a beginner. The sensor is typically held in by a single 1-inch bolt or wrench fitting and is easy to access on the driver's side of the transmission or transfer case. The job usually takes less than 30 minutes with basic hand tools. 🎬 Watch this step-by-step walkthrough of the sensor replacement process. Just be sure to have a catch pan ready, as a small amount of transmission fluid may leak out when you remove the old sensor.
Will a bad VSS cause a Check Engine light?
Yes, on models equipped with onboard diagnostics, a failing VSS can trigger a Check Engine Light. A common trouble code is P0500. 🎬 See this guide on diagnosing and fixing P0500 speed sensor codes. Having the code scanned can help confirm the VSS is the likely problem before you start buying parts.
My speedometer works sometimes, but not always. Is it the VSS?
Yes, intermittent operation is a classic sign of a failing vehicle speed sensor. The internal electronics can break down, causing the signal to cut in and out. It can also be caused by a loose or corroded wiring connector, so be sure to check the connection first.
🎬 Watch how to fix a P0500 code without replacing the sensor.What happens if I don't replace a bad VSS?
You will continue to have an unreliable speedometer and cruise control. More importantly, the persistent hard and incorrect shifting can cause premature wear and tear on your automatic transmission's internal components over time. It's best to replace it to restore normal operation and prevent potential transmission damage.
Helpful Videos
Technical Specifications
The VSS for this vehicle is typically a screw-in sensor with a 2-pin electrical connector, located on the transmission or transfer case output housing. It generates 8 voltage pulses per revolution of the output shaft.
