1988-1996 Ford F-150 Speedometer Cable: A Guide to Replacement
If your F-150's speedometer is bouncing, noisy, or has stopped working, a new cable is likely the fix.
- A bouncing needle, no speed reading, or a grinding noise are the top signs of a failing speedometer cable.
- Replacement is a straightforward DIY job for most owners, with the main challenge being access behind the dash.
- Always lubricate the new inner cable core with white lithium grease before installation to ensure longevity.
- Verify the correct cable length for your truck's specific configuration (2WD/4WD, transmission type, cruise control) before buying.
Is Your F-150 Speedometer Acting Up?
For this generation of Ford F-150, the speedometer system is straightforward. Unlike newer trucks that use electronic sensors for everything, your 1988-1996 model relies on a physical, spinning cable. This is both good and bad. It's a simple system to diagnose, but the cable itself is a wear item. Over time, the internal core can kink, fray, or break, and the outer housing can get brittle. The most common signs of a failing cable are a speedometer needle that bounces erratically, a grinding or whining noise from behind the dash, or a speedometer that doesn't move at all.
Symptoms of a Bad Speedometer Cable
A failing speedometer cable will give you clear warning signs. Here’s what to look and listen for:
- Bouncing Speedometer Needle: The most common symptom. A kinked or improperly lubricated inner cable core will bind and release as it spins, causing the needle to jump around instead of moving smoothly.
- No Speed Reading: If the needle stays at zero, the inner cable has likely snapped completely, or the gears at the transmission end have failed.
- Whining or Grinding Noise: A dry, unlubricated, or frayed cable can make a distinct noise from behind the instrument cluster that changes with vehicle speed.
- Odometer Stops Working: Since the odometer is also mechanically driven by the speedometer cable, a broken cable will cause the odometer to stop recording mileage.
A Note on 1992-1996 Models
While a bad cable is common, some 1992-1996 F-150s can also experience a bobbing speedometer needle due to issues with the Programmable Speed Output Module (PSOM) located in the speedometer head itself. If a new cable doesn't fix a bouncing needle on these later models, the PSOM may be the culprit.
🎬 Watch a demonstration of a bouncing needle caused by the PSOM.Choosing an Aftermarket Speedometer Cable

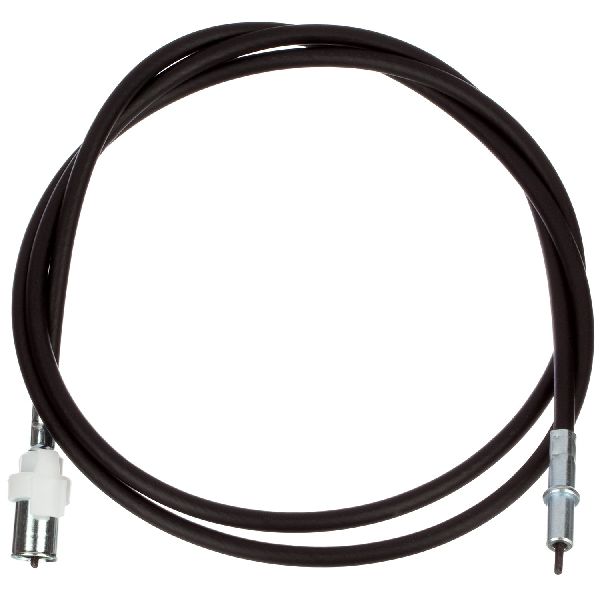

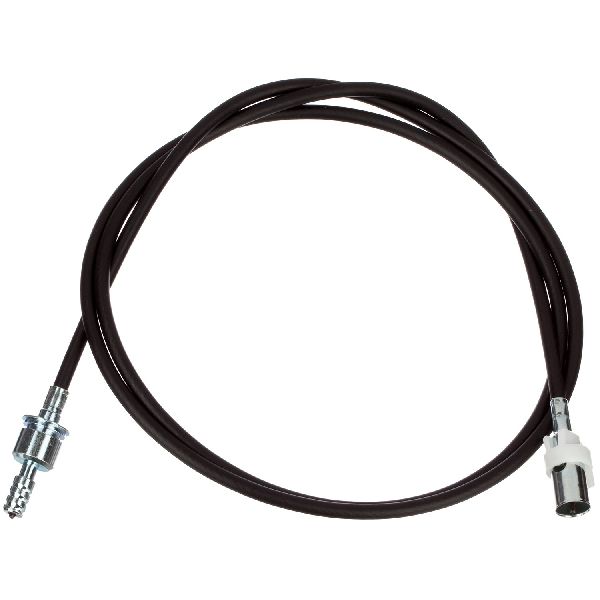

For a vehicle of this age, new OEM Ford cables are often discontinued or very hard to find. The aftermarket is your best and most affordable option. The quality of standard replacement cables is generally very similar across brands like ATP and Pioneer. These brands produce direct-fit replacements designed to function like the original part.
- Standard Replacements (ATP, Pioneer Cable): These are your go-to choices. They are affordable, widely available, and designed for a direct fit. They often come with a packet of lubricant, which is crucial for long life. For most owners doing a standard repair, these brands are perfectly adequate.
- Premium/Custom (Lokar): Brands like Lokar offer high-end, cut-to-fit cables, often with stainless steel braided housings. These are more expensive and typically used for custom builds, engine swaps, or when a non-standard length is needed. For a stock F-150, this is usually overkill.
Pro Tip: Lubricate Your New Cable
Before installing your new speedometer cable, pull the inner core out of the housing and apply a thin layer of white lithium grease or the included lubricant along its entire length. This simple step prevents binding and ensures a smooth, quiet, and long-lasting repair.
🎬 Watch this guide on choosing and applying the best cable lubricant.Cost of Replacing a Speedometer Cable (1988-1996 F-150)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Speedometer Cable | $22 - $30 |
| Shop Labor | $90 - $150 |
| Total Estimated Cost (DIY) | $22 - $30 |
| Total Estimated Cost (Installed) | $112 - $180 |
Costs are estimates and may vary based on location and vehicle specifics. The provided aftermarket price range is $22.16 - $29.21.
Frequently Asked Questions
Is replacing the speedometer cable a DIY job?
Yes, for most owners with basic tools. The process involves removing the instrument cluster bezel to access the back of the speedometer, unscrewing the cable, and then routing the new one through the firewall down to the transmission or transfer case. The trickiest part is often reaching the clip on the back of the speedometer.
🎬 See how to safely remove the instrument cluster in your truck.How do I know if I need a new cable or if it's the gear in the transmission?
A simple test is to disconnect the cable at the transmission end and spin the inner core by hand (or carefully with a drill on low speed). Have a helper watch the speedometer. If the needle moves, the cable and speedometer head are likely good, and the problem is with the plastic drive gear inside the transmission. If the needle doesn't move, the cable is likely broken.
Are there any recalls for the speedometer cable on my F-150?
No, there are no specific recalls for the speedometer cable on 1988-1996 Ford F-150 models. Searches on the NHTSA database and Ford's recall site show no active recalls for this specific component and year range.
Do I need a different cable for a 4x4 or different transmission?
Yes, length can vary. The cable connects to the transfer case on 4x4 models and the transmission on 2WD models. Additionally, options like cruise control can affect which cable you need. Always verify the exact fit for your truck's year, drivetrain (2WD/4WD), and transmission type before ordering.
Helpful Videos
![How To Fix A Shaky/Bouncing Speedometer [BEST CABLE LUBE]](https://img.youtube.com/vi/FFvVLIaxOb4/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: E9BZ9A820B
Mechanical, core-and-housing design. Connects from transmission or transfer case to the instrument cluster. Length varies by application (e.g., 80-inch, 92-inch).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
