A Mechanic's Guide to the 1988-1996 Toyota Camry Parking Brake Shoe
Everything you need to know before replacing the parking brake shoes on your 2nd or 3rd generation Camry.
- For most owners, a quality aftermarket brand like Centric or Wagner offers the best value and reliability.
- This is a DIY-friendly job if you have patience and the right tools, but the small springs can be challenging.
- Always replace the hardware (springs and clips) along with the shoes for best results and to prevent noise.
- Proper adjustment of the new shoes via the star wheel is essential for the parking brake to function correctly.
Signs of a Failing Parking Brake Shoe
On a 1988-1996 Camry, the parking brake system is fully mechanical and generally reliable. However, the shoes are wear items and can fail over time. Here are the common symptoms to watch for:
- Poor Hold on Hills: The most obvious sign is when your Camry slowly rolls or won't hold firm on an incline, even with the parking brake fully engaged. This indicates the shoes are too worn to create enough friction.
- Loose Brake Lever or Pedal: If your handbrake lever pulls up much higher than it used to, or the parking brake pedal goes further to the floor, it can be a sign of worn shoes or a stretched cable. The system needs adjustment at a minimum, but often the shoes are the root cause.
- Grinding or Scraping Noise: A grinding sound when you apply or release the parking brake can mean the friction material is completely gone. The metal backing of the shoe is now scraping against the metal drum, which can cause further damage.
- Parking Brake Won't Release: Corrosion and lack of use are common enemies. Components can rust and seize, causing the parking brake to get stuck in the engaged position. This is more common in areas with heavy road salt use.
A Note on Recalls and TSBs
Our research found no specific recalls or Technical Service Bulletins (TSBs) from Toyota or the NHTSA for the parking brake shoes on the 1988-1996 Toyota Camry. Recalls found for Camry brake systems relate to much newer models with different electronic systems and are not relevant to your vehicle.
Choosing the Right Aftermarket Parking Brake Shoe
For a vehicle like the 1988-1996 Camry, you don't need to spend a fortune at the dealership for this part. A quality aftermarket set of parking brake shoes will perform just as well as the original for its intended purpose: holding the car still. The key is to choose a reputable brand. Here’s a breakdown of the available options:
Brand Tiers for Your Camry
- Standard Replacement (Good): Dynamic Friction is a solid choice if you're on a budget. Their parts are manufactured to meet OE specifications and offer reliable performance for daily use.

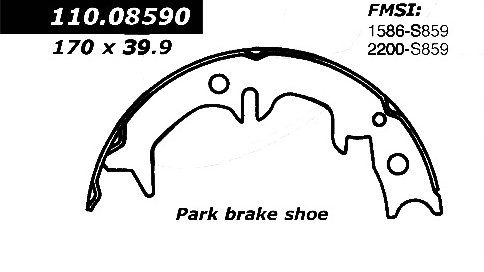

- OEM-Quality Replacement (Better): Brands like Centric and Wagner Brakes are well-regarded in the industry for providing consistent quality that meets or exceeds OEM standards. They are a go-to for professional mechanics and DIYers who want a dependable part that fits correctly the first time. For most Camry owners, this tier offers the best balance of price and quality.

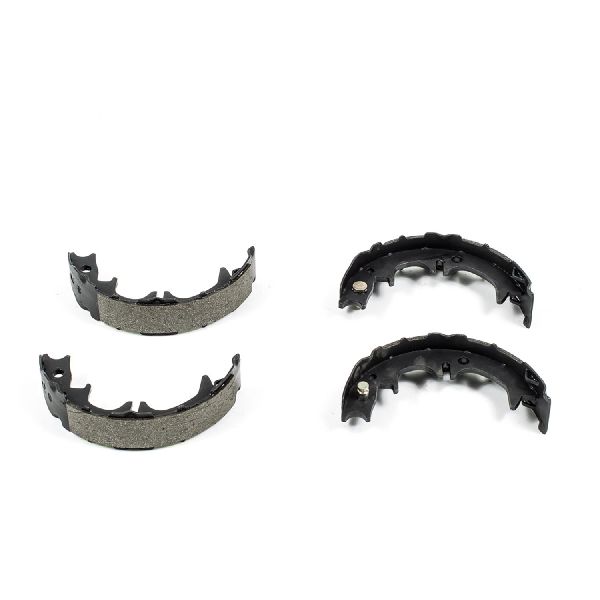

- Performance (Best/Overkill): Powerstop is known for its performance brake kits. While they make parking brake shoes, their reputation is built on pads and rotors for stopping power. For a parking brake shoe, their quality is good, but you may be paying a premium for a brand name that is overkill for this specific part. Some users of their main brake products report more noise or dust, though this is less of a concern for parking brakes.
Pro Tip: Always Replace the Hardware
When you replace your parking brake shoes, it is highly recommended to also replace the springs and clips that hold them in place. These parts are exposed to heat and can lose their tension over time, leading to noise or improper operation. Most quality aftermarket shoe sets come with new hardware, but if not, purchase a hardware kit separately.
Estimated Replacement Costs
The cost to replace parking brake shoes can vary based on your location and whether you do the work yourself. The shoes themselves are affordable.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Parking Brake Shoe Set | $48 - $61 |
| New OEM Parking Brake Shoe Set | $70 - $100 |
| Shop Labor | $150 - $250 |
| Total Professional Installation | $200 - $310 |
Frequently Asked Questions (FAQ)
Can I replace just the parking brake shoes?
Yes. The parking brake shoes are a separate system from your main rear brake pads. You can replace them on their own. However, since the job requires removing the brake caliper and rotor to access them, many owners choose to replace their rear pads and rotors at the same time if they are also worn.
Is this a difficult job to do myself?
This is a moderately difficult job for a DIYer. It requires safely jacking up and supporting the vehicle, removing the rear wheels, calipers, and rotors. The trickiest part is working with the small springs and clips that hold the shoes in place. It can be frustrating without the right tools, like needle-nose pliers and a brake spring tool. There are many helpful video guides online for this generation of Camry.
Do I need to adjust the new parking brake shoes?
Yes, adjustment is a critical step. After installing the new shoes, you must use the star wheel adjuster to set the proper clearance between the shoes and the drum. The goal is to have a very slight drag when you spin the rotor by hand. If they are too loose, the brake won't hold. If they are too tight, they will drag and overheat. Final adjustment is also done at the handbrake lever or pedal inside the car.
My Camry has rear drum brakes, not discs. Is this guide for me?
This guide is specifically for the more common 1988-1996 Camry models equipped with rear disc brakes, which use a "drum-in-hat" parking brake. Some base models, particularly in the earlier years of this range, may have full drum brakes in the rear. In that case, the brake shoes serve as both the main service brake and the parking brake. The replacement process is similar but not identical.
Technical Specifications
OEM Part Numbers: 46540-20060 46550-33020 46590-33010 46590-20060 46550-07010
Drum-in-Hat Style Parking Brake Shoe
