Mazda MX-6 Fuel Injector Guide: 1988-1997 Replacement and Symptoms
Keep your MX-6 engine running smoothly with the right set of new fuel injectors.
- Verify your engine (2.2L I4, 2.0L I4, or 2.5L V6) before buying, as injectors are not interchangeable.
- Replacing injectors as a full set is highly recommended for balanced engine performance.
- New aftermarket injectors from brands like Standard Ignition offer a good balance of quality and price for a daily driver.
- Always replace the small rubber O-rings and seals when installing new injectors to prevent dangerous fuel leaks.
Is Your Mazda MX-6 Fuel Injector Failing?
A bad fuel injector can cause problems that range from annoying to serious. Because these cars span two different generations with different engines, symptoms can sometimes vary, but the core issues are similar. Contaminants in fuel are a common cause of clogged injectors, while internal electrical components can fail from heat and age.
Common Symptoms of Failure:
- Rough Idle: The engine may shake or vibrate when stopped. This is often one of the first signs of an uneven fuel supply from a failing injector.
- Engine Misfires: You might feel the car jerking or hesitating during acceleration. A misfire means one cylinder isn't firing correctly, often due to a bad air/fuel mixture. For 1996-1997 models, this will likely trigger a Check Engine Light with codes like P0300-P0306.
- Poor Fuel Economy: If you're filling up your tank more often, a leaking or inefficient injector could be dumping too much fuel into the engine.
- Hard Starting: A clogged injector can prevent enough fuel from reaching the cylinder, making the engine difficult to start. A badly leaking injector can also cause starting issues.
- Gasoline Smell: A strong fuel smell from the engine bay could indicate an injector is leaking externally from a cracked body or bad O-ring seal. This is a serious fire hazard.
Choosing the Right Aftermarket Fuel Injector
When replacing injectors on an older car like the MX-6, you have several options. While OEM injectors from Mazda are often discontinued or very expensive, the aftermarket offers good alternatives. It's critical to buy injectors that match your specific engine (e.g., 2.2L I4, 2.0L I4, or 2.5L V6), as they are not interchangeable.
Aftermarket Brand Tiers for Mazda MX-6
| Brand Tier | Our Brands | Quality & Performance Assessment |
|---|---|---|
| New Aftermarket | Standard Ignition (SMP) | Standard Motor Products is a well-known brand that produces new fuel injectors designed to match original performance. Owner reviews are generally positive, though occasional out-of-box failures have been reported. They are a reliable choice for a daily driver and are considered a step up from remanufactured parts in terms of consistency. |

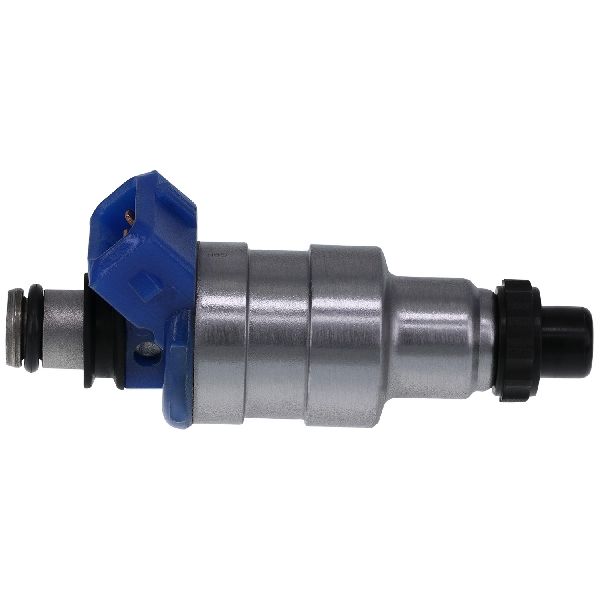

| Remanufactured | GBR Fuel Injection | GB Remanufacturing offers a more budget-friendly option by rebuilding original injector cores. While cost-effective, remanufactured parts can have a higher chance of inconsistency in flow rate or spray pattern compared to new units. They are a viable option if budget is the primary concern, but new injectors are recommended for better long-term reliability. |
Cost of Replacing Mazda MX-6 Fuel Injectors
The cost can vary significantly based on your engine and whether you buy a single injector or a full set. For the V6 engine, labor costs are higher due to the need to remove the intake manifold.
| Part or Service | Estimated Cost |
|---|---|
| Shop Labor | $200 - $450 |
| New OEM Injector (Single) | $150 - $250+ (if available) |
| New Aftermarket Injector (Single) | $56 - $90 |
| Remanufactured Injector (Single) | $30 - $60 |
| New Aftermarket Injector (Set of 4 or 6) | $220 - $360 |
Frequently Asked Questions (FAQ)
Is replacing the fuel injectors a DIY job?
For an experienced DIY mechanic, yes. However, it can be challenging, especially on the 2.5L V6 engine, which requires removing the upper intake plenum for access. You must also safely depressurize the fuel system before starting. If you are not comfortable with this level of work, it's best to leave it to a professional.
Should I replace one injector or the whole set?
It is highly recommended to replace all fuel injectors at the same time. They have all been subjected to the same amount of wear and mileage. Replacing them as a set ensures that each cylinder receives a balanced and equal amount of fuel, which is crucial for a smooth-running engine. An imbalanced set can cause persistent performance issues.
Are there differences between 1st gen (1988-92) and 2nd gen (1993-97) injectors?
Yes, they are completely different. The first-generation MX-6 used a 2.2L four-cylinder engine (F2/F2T), while the second generation offered a 2.0L four-cylinder (FS) and a 2.5L V6 (KL-DE). The injectors are specific to each engine type and are not interchangeable. Always confirm your vehicle's year and engine before ordering.
I heard you can use injectors from a Mazda Millenia. Is that true?
For the second-generation 2.5L V6 (KL-DE) engine, injectors from a Mazda Millenia S are a popular drop-in upgrade for performance enthusiasts. These injectors have a higher flow rate than the stock MX-6 V6 injectors. However, for a stock vehicle, this is unnecessary and could potentially cause the engine to run rich without a proper engine tune. For standard repairs, stick with direct-replacement injectors.
Are there any recalls for the 1988-1997 MX-6 fuel injectors?
No, there have been no recalls issued by the NHTSA for fuel injectors on any 1988-1997 Mazda MX-6 models.
Technical Specifications
OEM Part Numbers: FS01-13-250A INP-480 195500-2390
The 1988-1997 Mazda MX-6 uses high-impedance, top-feed style fuel injectors. The specific flow rate (measured in cc/min) and connector type vary between the 1st generation 2.2L I4, 2nd generation 2.0L I4, and 2nd generation 2.5L V6 engines. For example, the stock 2.5L V6 (KL-DE) injectors are rated at approximately 220cc/min. A resistance test should show 12-16 ohms.
