Guide to Replacing the Door Lock Kit on a 1988-1998 GMC K3500
Fix failing power locks and restore security and convenience to your GMT400 truck.
- The most common cause of power lock failure on a 1988-1998 K3500 is a worn-out door lock actuator.
- Before replacing parts, check the fuse/breaker and the wiring harness between the door and the truck body for breaks.
- Replacement is a DIY-friendly job that requires removing the door panel and drilling out the old actuator's rivets.
- Both ACDelco and Standard Ignition are reputable aftermarket brands for this part.
Is Your GMC K3500's Door Lock Acting Up?
For owners of the classic 1988-1998 GMC K3500, a failing power door lock is a common headache. Usually, the problem isn't with the entire system, but with a specific component: the door lock actuator. These small motors work hard over the decades and eventually wear out. Symptoms often start small, like slow or weak locking, and can progress to complete failure. Fortunately, replacing the door lock kit is a straightforward job that can be done with basic tools.
Symptoms of a Failing Door Lock Actuator
- Inconsistent Operation: The locks work sometimes but not others. This can be worse in very hot or cold weather.
- Slow or Weak Locking/Unlocking: The lock plunger moves slowly or doesn't have enough force to fully engage or disengage.
- Buzzing or Clicking Noises: You hear a noise from inside the door when you press the switch, but the lock doesn't move. This often means the motor is trying to work but a gear or the mechanism is stripped or broken.
- One Door Fails: Only one door fails to lock or unlock while the others work fine. This almost always points to the actuator in the non-working door.
- Blown Fuses or Breakers: A shorted actuator can cause the circuit breaker for the power locks to overheat and trip, causing all locks to stop working until it cools down.
Check Your Wiring First
Before ordering parts, it's a good idea to check for simple electrical issues. The wiring that passes from the truck body into the door can become brittle and break after years of opening and closing the door. Also, check for corroded battery terminals 🎬 Watch how battery issues can cause door locks to act crazy., as poor connections can cause a range of strange electrical problems, including with the door locks.
Choosing the Right Aftermarket Door Lock Kit
For a vehicle of this age, original GM parts are often discontinued and hard to find. Aftermarket parts are the most practical and affordable solution. The good news is that for a common platform like the GMT400, aftermarket quality is generally very reliable. The main components are the door lock actuators.
Brand Options
- ACDelco: Often considered the original equipment (OE) supplier for GM, ACDelco parts are a top-tier choice. While they might be manufactured by other companies and rebranded, they are made to GM's specifications. If you want the closest thing to the original part, ACDelco is a trusted option.
- Standard Ignition (Standard Motor Products): A well-respected aftermarket brand that produces a wide range of reliable electronic parts. Their door lock actuators are a quality replacement and a dependable alternative to ACDelco, often at a slightly lower price point.
For this repair, both ACDelco and Standard Ignition are excellent choices. Since the labor to replace the part is the same regardless of brand, choosing a reputable name ensures you won't have to open up the door panel again anytime soon.
Cost of Replacing a Door Lock Kit (1988-1998 GMC K3500)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Door Lock Kit (Actuator) | $26.98 - $71.61 |
| Shop Labor | $100 - $180 |
Frequently Asked Questions
Do I need to replace the whole kit or just the actuator?
Most "kits" for this truck are just the door lock actuator itself, as it is the most common failure point. The connecting rods and clips are usually reused unless they are visibly broken.
Is replacing the door lock actuator a DIY job?
Yes, this is a very DIY-friendly repair for someone with basic mechanical skills. It involves removing the door panel, drilling out the original rivets holding the actuator, and then bolting the new one in place 🎬 See a step-by-step guide on replacing your door lock actuator.. You will need common hand tools, a drill, and trim removal tools to avoid damaging the door panel.
My door won't open from the inside or outside. Is it the actuator?
This is more likely a mechanical issue with the door latch mechanism itself, not the electronic actuator. The latch can get stuck in the closed position. This requires getting the door panel off while the door is closed, which can be difficult, to manually release the latch 🎬 Learn how to open a door that is stuck shut..
Do I need a special tool to remove the door panel?
While you can use a flathead screwdriver, using a plastic trim removal tool set is highly recommended to pry off the door panel and switch bezels without scratching or breaking the old plastic.
The new actuator is installed with bolts instead of rivets. Is that okay?
Yes, it is common practice to use small bolts with nuts to install the new actuator instead of trying to use new rivets. This makes the installation easier and has no effect on the part's function.

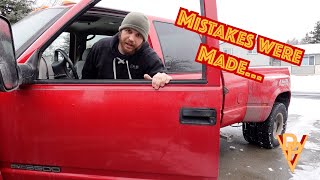

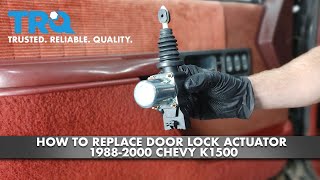

Helpful Videos
Technical Specifications
OEM Part Numbers: 15690211 15690210 22062740 22062741
The kit typically includes one door lock actuator. The original part is held in by rivets, which must be drilled out for removal. The replacement is usually secured with bolts and nuts.
