A Guide to the Electric Fuel Pump for the 1988-1999 Chevrolet K1500
Keep your classic Chevy truck running strong by understanding its fuel pump needs and choosing the right replacement part.
- Verify your engine type before ordering: 1988-1995 TBI engines use a low-pressure pump, while 1996-1999 Vortec engines need a high-pressure pump.
- Invest in a quality brand like ACDelco or Delphi; the labor to replace the pump is too difficult to risk using a cheap part that might fail early.
- Plan to replace the entire fuel pump module, not just the motor, to also fix common fuel gauge problems.
- Always replace the fuel filter at the same time to protect your new pump from debris.
Is Your K1500 Fuel Pump Failing?
A failing fuel pump doesn't usually quit without warning. It will give you signs that it's getting tired. Ignoring them can leave you stranded. The most common issue is simply age and wear. The electric motor inside the pump wears out after thousands of hours of use.
Key Failure Symptoms:
- Loud Whining Noise: A loud, high-pitched whine from the fuel tank area is a classic sign of a struggling pump motor.
- Hard Starting: The engine cranks for a long time before it finally starts. This happens because a weak pump takes longer to build up enough fuel pressure.
- Stalling Engine: The truck may start fine but stall after a few minutes, especially when it gets warm. It might restart after it cools down.
- Hesitation or Power Loss: When you accelerate, tow, or go up a hill, the truck may sputter or lose power because the pump can't keep up with the engine's demand for fuel.
- Engine Won't Start: The final stage of failure is a no-start condition. You may hear a click when you turn the key, but the pump won't make its usual humming sound. 🎬 Watch this diagnostic walkthrough for a truck that won't start.
A Critical Ordering Mistake: TBI vs. Vortec
The 1988-1999 production run covers two different fuel systems. Ordering the wrong pump is a common and costly error.

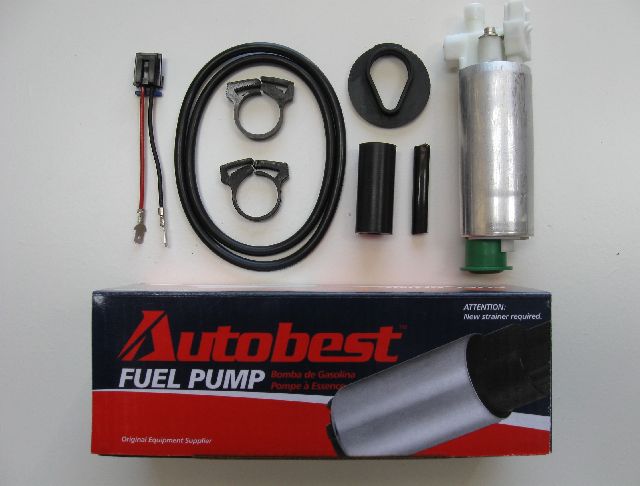

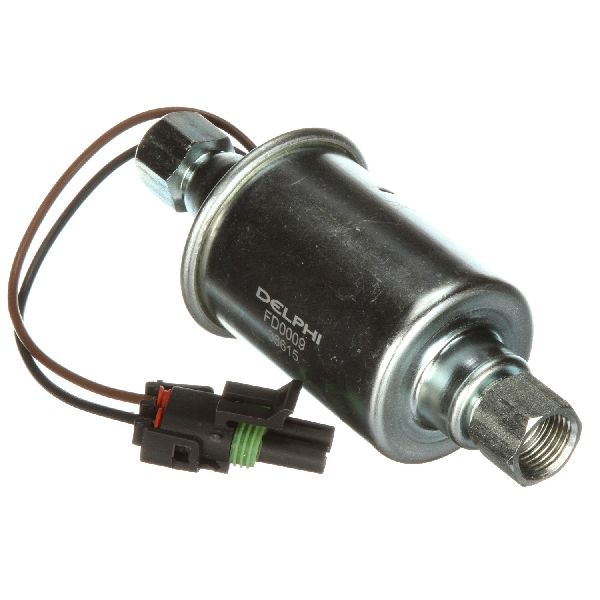

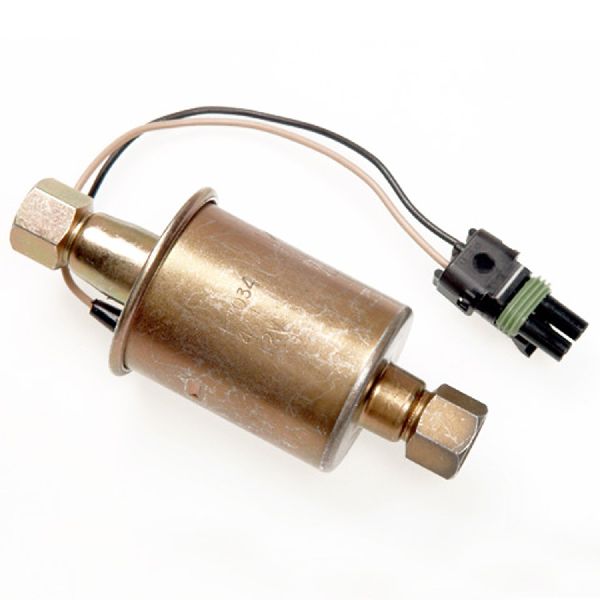

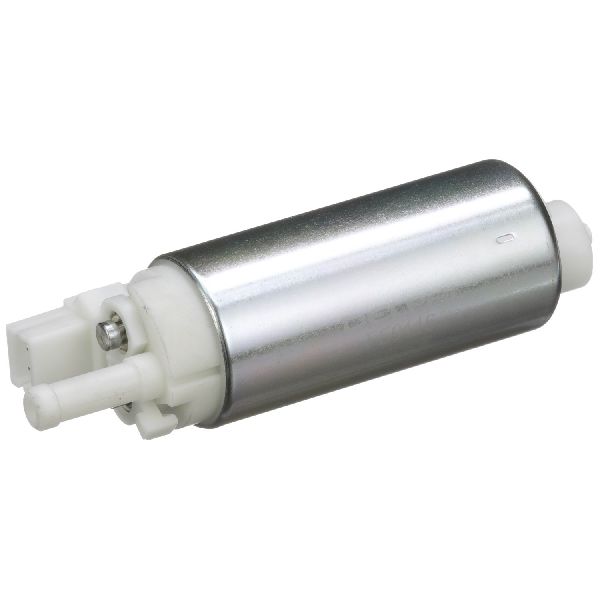

- 1988-1995 (TBI): These trucks use a low-pressure fuel pump (around 9-13 PSI).

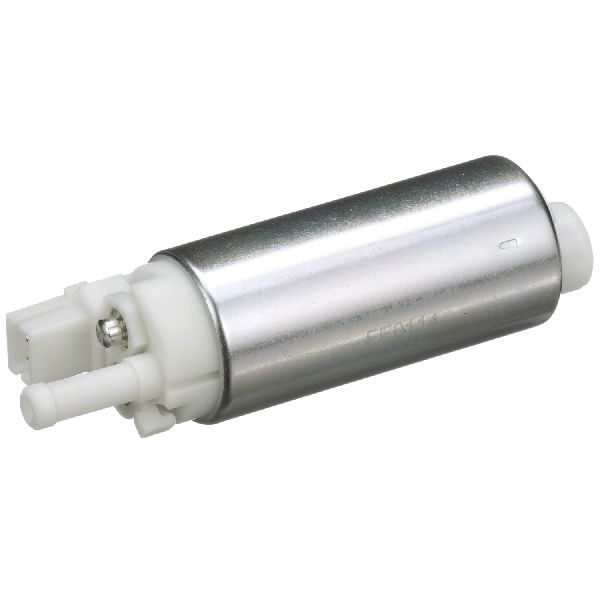

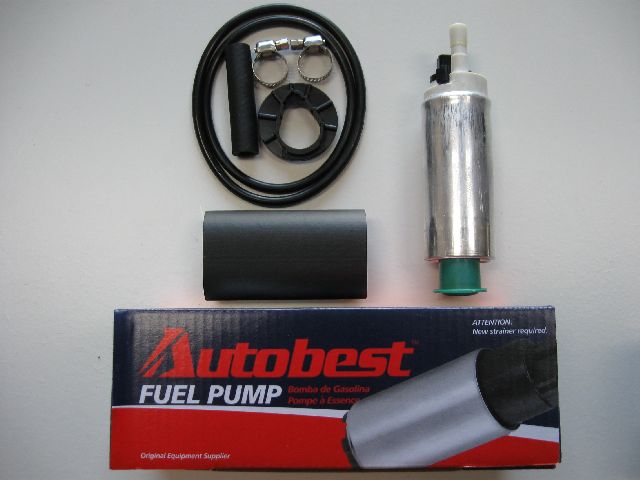

- 1996-1999 (Vortec): These trucks use a high-pressure fuel pump (around 60 PSI) for their Central Port Injection (CPI) systems.
The pumps may look similar, but they are not interchangeable. A high-pressure pump will overwhelm a TBI system, and a low-pressure pump won't run a Vortec engine. Always confirm your truck's year and engine 🎬 Watch how to test for a bad pump on TBI models. before ordering.
Choosing the Right Aftermarket Fuel Pump
Replacing the fuel pump is a big job that requires dropping the fuel tank or lifting the truck bed. Because the labor is so intensive, it's wise to invest in a quality part to avoid doing the job twice.
Brand Quality Tiers
Based on owner experiences and mechanic recommendations, aftermarket brands for the K1500 can be grouped into tiers.
- Premium (OEM-Equivalent): ACDelco & Delphi
These are the original equipment manufacturers for General Motors. They are widely considered the most reliable and durable choices. Many mechanics and long-time owners will only use these two brands, as they are designed to meet the original factory specifications. While manufacturing locations may have changed over the years, they are still seen as the top-tier option. - Performance: Holley & Edelbrock
These brands are known for high-performance parts. If your truck is heavily modified with a different engine or power adders, you might consider a high-flow pump from one of these brands. For a stock or lightly modified truck, they are usually not necessary. - Standard / Economy: AutoBest, US Motor Works, and Store Brands
These brands offer a more budget-friendly price point. While tempting, many experienced owners advise against using economy pumps for this specific repair. The risk of premature failure is higher, and the cost of re-doing the labor far outweighs the initial savings on the part.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database and other technical resources did not find any widespread fuel pump recalls or Technical Service Bulletins (TSBs) specifically for the 1988-1999 Chevrolet K1500. Most issues with the fuel pump on these trucks are related to normal wear and age.
Cost to Replace a Chevrolet K1500 Fuel Pump
The cost can vary based on your truck's year (TBI vs. Vortec) and local labor rates.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump Assembly | $40 - $205 |
| Shop Labor | $250 - $400 |
| Total Estimated Cost (Parts + Labor) | $300 - $605+ |
Note: Total cost estimates from national sources like Kelley Blue Book range from $611 to $894, showing how much labor rates can affect the final price.
Frequently Asked Questions
Do I have to drop the fuel tank to replace the pump?
Yes, you must access the top of the fuel tank. The two methods are to either drop the entire tank from under the truck or to unbolt and lift the truck bed. Dropping the tank is more common, but lifting the bed can be easier if you have help and the right equipment, especially if the tank is full of fuel.
🎬 See a comparison of the two ways to access the pump.Should I replace just the pump motor or the whole assembly?
It is highly recommended to replace the entire fuel pump module assembly. The assembly includes the pump, strainer, sending unit (for the fuel gauge), and float. The fuel level sending unit is a common failure point, causing an erratic or incorrect fuel gauge reading. Replacing the whole module ensures all components are new and saves you from having to do the job again if the sender fails later.
What is the difference between a TBI and a Vortec fuel pump?
The main difference is pressure. TBI pumps (pre-1996) operate at a low pressure of about 9-13 PSI. Vortec pumps (1996+) operate at a high pressure of about 60 PSI. They are not interchangeable. Using the wrong one will either cause your engine not to run or damage other fuel system components.
Can I do this replacement myself?
This is a difficult job for a DIY mechanic, but it is possible. It requires safely lifting the vehicle, handling gasoline, and dealing with potentially rusty bolts and fuel lines. You will need a good set of tools, including potentially a special lock-ring tool. If you are not comfortable with these steps, professional installation is recommended.
Helpful Videos
Technical Specifications
Pressure specifications are critical. TBI systems require approximately 9-13 PSI. Vortec (CPI/CSFI) systems require approximately 60 PSI. The pump is located in the fuel tank and is sold as a module including the pump, strainer, and fuel level sending unit.
