GMC K1500 (1988-1999) Engine Timing Set Replacement and Information
Keep your classic GMC truck's engine in sync with the right timing set.
- Verify your engine type (TBI vs. Vortec) before buying, as parts like the timing cover are different for 1996+ models.
- A rattling noise from the front of the engine is a classic sign of a worn timing chain.
- Upgrading to a double-roller timing set from a brand like Cloyes or Melling is a durable, cost-effective improvement.
- It is highly recommended to replace the water pump and timing cover gaskets at the same time to save on future labor.
Is It Time to Replace Your K1500's Timing Set?
The Small Block Chevy V8 engines (5.0L, 5.7L) and the 4.3L V6 found in the 1988-1999 GMC K1500 are known for their durability, but the timing chain is a component that wears over time. A stretched chain can cause the timing between the crankshaft and camshaft to become inaccurate. This can lead to poor engine performance, rough idling, and even engine stalling. If the chain breaks or jumps a tooth, it can cause serious internal engine damage, especially in interference engines.
Key Vehicle-Specific Information
The 1988-1999 K1500 generation spans two major engine updates: the early Throttle Body Injection (TBI) engines (approx. 1988-1995) and the later Vortec engines (approx. 1996-1999). While the basic timing set architecture is similar, there are differences. Vortec engines, for example, use a plastic timing cover that is prone to leaking and a crankshaft position sensor that is part of the timing system. 🎬 See this step-by-step timing chain replacement walkthrough. Always verify the correct part for your specific year and engine before ordering.
Symptoms of a Failing Timing Chain
- Rattling Noise: A common sign is a rattling or clattering sound from the front of the engine, especially at idle or on startup. This is the sound of the loose chain slapping against the timing cover. 🎬 Watch: See and hear common bad timing chain symptoms.
- Engine Misfires and Rough Idle: When the chain stretches, cam timing becomes retarded, leading to a rough idle, misfires, and poor performance.
- Check Engine Light: On later Vortec models (1996+), a stretched chain can cause a disagreement between the cam and crank sensors, triggering a Check Engine Light with codes like P1345 (Cam/Crank Correlation).
- Metal Shavings in Oil: During an oil change, finding small metal shavings in the drained oil or on the magnetic drain plug can be a sign that the timing chain and gears are wearing down.
Choosing the Right Aftermarket Timing Set
For a vehicle of this age, a quality aftermarket timing set is often a smart choice, providing excellent durability and value. The brands available offer different levels of performance and durability.
Good (Standard Replacement):
- Melling: A well-respected name in engine parts, Melling offers reliable, stock-style replacement timing sets that are a great choice for daily drivers and stock rebuilds. They are known for solid construction and are a dependable OEM-quality alternative.
- INA: While often associated with European vehicles, INA is a major OEM supplier of valvetrain components. If an INA set is available for your K1500, it will meet or exceed OEM specifications for a standard replacement.
Better (Heavy-Duty & Performance):
- Cloyes: Cloyes is a very popular brand for timing components and has supplied parts to OEMs. They offer both standard and heavy-duty sets, often featuring double-roller chains for increased strength and timing accuracy, which is a good upgrade for trucks that work hard. Some users report quality can vary based on country of origin, so it's worth checking recent reviews.
- Melling Select Performance: This is Melling's upgraded line. These sets often feature double-roller chains and multi-keyway sprockets, allowing for timing adjustments (advance/retard) for performance-tuned engines.
Best (High-Performance):
- Edelbrock: Known for high-performance parts, Edelbrock timing sets are typically true double-roller designs made with high-quality materials like billet steel for the crank sprocket. These are ideal for high-mileage, high-performance, or heavy-towing applications where maximum durability is required.
Pro Tip: Double Roller vs. Single Roller
Many aftermarket sets are "double roller" chains. This design is stronger and more stable than the original single roller or link-belt style chains, reducing chain stretch over time. For the small difference in price, upgrading to a double roller set from a brand like Cloyes or Melling is a worthwhile investment for longevity, even on a stock engine.
Cost of Replacing a Timing Set on a GMC K1500
| Part Category | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $24 - $175 |
| Shop Labor | $400 - $700 |
| Total Professional Replacement | $424 - $875 |
Note: Costs are estimates and can vary based on location, specific parts chosen, and the condition of the vehicle. The job also requires replacing coolant and various gaskets, which will add to the total cost.
Frequently Asked Questions
Do I need special tools to replace the timing set?
Yes. Besides a good set of sockets and wrenches, you will need a harmonic balancer puller, a gear puller for the crank sprocket, and a torque wrench. A fan clutch tool may also be necessary. For Vortec engines, a scan tool is needed to check and adjust cam retard (P1345) after installation.
Should I replace the water pump at the same time?
Yes, it is highly recommended. The timing chain replacement requires removing the water pump to access the timing cover. Since you have already done most of the labor, installing a new water pump at the same time is cost-effective and prevents having to do the job twice.
My truck is a 1996 Vortec. Is there anything special I need to know?
Yes. The 1996-1999 Vortec engines use a plastic timing cover that can become brittle and is a common source of oil leaks. Many owners upgrade to a Dorman or similar aftermarket cover. You must also be careful with the crankshaft position sensor located in the cover. After replacement, you must use a capable scan tool to check the Camshaft Position Retard offset to ensure it's within spec (typically 0° +/- 2°), otherwise, you may set a P1345 code.
🎬 Watch: How to fix the P1345 cam/crank correlation code.What else should I inspect or replace during the job?
Inspect the timing cover for cracks or damage and check the cover's seal. On Vortec engines, this is a good time to replace the plastic cover. You will need a new timing cover gasket set and a new front main seal. It's also wise to replace the coolant and consider a new serpentine belt and tensioner if they are old.
Helpful Videos

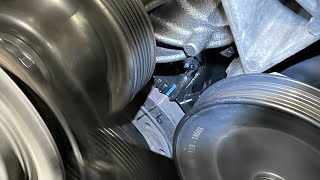

![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
The primary specifications involve the type of chain (standard link-belt, single roller, or double roller) and whether the sprockets are standard or have multiple keyways for timing adjustments. The 1988-1995 TBI engines and 1996-1999 Vortec engines have different timing cover designs and sensor considerations.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
