Chevrolet C3500 A/C Compressor Cut-Off Switch Guide (1988-2000)
Is your C3500's air conditioning not working? The A/C cut-off switch is a common and easy-to-fix problem.
- A non-working A/C is more often caused by a refrigerant leak than a bad switch; the switch is just doing its job.
- The switch is located on the A/C accumulator on the passenger side and can be replaced without special tools or evacuating the system.
- You can test the circuit by briefly jumping the connector's two pins with a paperclip to see if the compressor engages.
- For this part, an aftermarket brand like Four Seasons or Global Parts is a cost-effective and reasonable choice.
Is Your C3500's A/C Blowing Hot Air?
If the air conditioning in your 1988-2000 Chevrolet C3500 isn't working, a faulty A/C compressor cut-off switch is a possible cause. This switch is a critical safety device that protects your A/C compressor. On these GMT400 trucks, it's usually a simple and inexpensive part to replace yourself.
Symptoms of a Bad A/C Cut-Off Switch

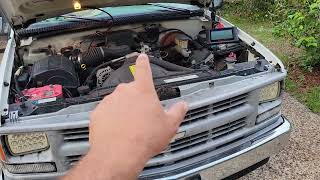

When this switch fails, it can create several noticeable problems with your truck's climate control system. 🎬 See a detailed explanation of the GMT400 A/C electrical system. Look out for these common signs:
- A/C Compressor Won't Turn On: The most common symptom is an A/C compressor that won't engage. You won't hear the typical 'click' from the engine bay when you turn on the A/C.
- Intermittent Cooling: The A/C might work for a while and then suddenly stop blowing cold air, only to start working again later.
- A/C Blows Only Warm Air: If the switch has completely failed in the 'open' position, it will prevent the compressor from ever turning on, resulting in only warm air from the vents.
Warning: Check for Leaks First!
More often than not, the A/C switch is doing its job correctly by shutting off the compressor because the system is low on refrigerant. On these Chevy trucks, a common leak point is the Schrader valve that the pressure switch screws onto. Before replacing the switch, it's wise to have the A/C system's pressure checked by a professional. Replacing the switch will not fix a refrigerant leak.
Choosing the Right Aftermarket Switch
For a simple electronic part like an A/C switch on a GMT400-era truck, an aftermarket part offers good value. The difference in technology and materials between OEM and a quality aftermarket switch is minimal for this component. Brands like Four Seasons and Global Parts are common, affordable options.
- Tier 1 (OEM): An AC Delco switch is the original part. It offers a guaranteed fit and quality but at a higher price. A possible AC Delco part number for this application is 15-5715.
- Tier 2 (Aftermarket): Brands like Four Seasons and Global Parts are well-known in the A/C parts industry. While some online forums have mixed reviews on complex parts like compressors, these brands are generally considered reliable for simple switches and sensors. Given the low cost and ease of replacement, they are a practical choice for most owners.
Pro Tip: Test Before You Replace
You can quickly test if the switch is the problem. Locate the switch on the A/C accumulator (a silver can on the passenger side firewall). Unplug the electrical connector. Use a small paperclip or wire to carefully jump the two terminals inside the connector. With the truck running and A/C on, the compressor should click on. If it does, the switch is likely bad. Do not leave the jumper in for more than a few seconds, as this bypasses the system's safety features and can damage the compressor.
🎬 Watch a demonstration on how to test your pressure switch.Typical Replacement Costs
Replacing the A/C cut-off switch is an inexpensive repair, especially if you do it yourself.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $22.39 - $54.11 |
| New OEM (AC Delco) Switch | $60 - $120 |
| Shop Labor | $50 - $120 |
| DIY Total | $22.39 - $54.11 |
| Shop Total | $72 - $175 |
Frequently Asked Questions (FAQ)
Where is the A/C cut-off switch located on my C3500?
The low-pressure cut-off switch is located on the A/C accumulator (also called the receiver/drier). This is a metal canister found on the passenger side of the engine bay, near the firewall.
Do I need to empty the A/C system to replace this switch?
No. The switch screws onto a Schrader valve, which is like the valve on a tire. When you unscrew the old switch, the valve will seal the system, preventing the refrigerant from escaping. You may hear a small hiss as a tiny amount of trapped gas is released, which is normal.
What tools do I need to replace the switch?
You typically only need a wrench to unscrew the old switch. A 16mm open-ended wrench or a small adjustable wrench usually works. The job is very simple: unplug the electrical connector, unscrew the old switch, screw the new one on (with its new o-ring), and plug the connector back in.
🎬 Watch this step-by-step walkthrough of the switch replacement process.My A/C still doesn't work after replacing the switch. What now?
If a new switch doesn't solve the problem, your A/C system is likely low on refrigerant due to a leak. Other possibilities include a blown fuse, a bad A/C relay, a faulty compressor clutch, or an issue with the climate control unit inside the cab.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15-5715
This part is a low-pressure cut-off switch, also known as a cycling switch. It is typically mounted on the A/C accumulator/drier and uses a 2-pin electrical connector. It threads onto a Schrader valve port.
