Chevrolet C3500 Ignition Switch Guide for 1988-2000 Models
Having trouble starting your truck or dealing with weird electrical issues? Your ignition switch might be the culprit.
- Verify if your truck is a 1988-1994 or 1995-2000 model and if it has a tilt steering column to ensure you buy the correct part.
- Symptoms often mimic a bad battery or starter; check simple things like battery terminals first.
- A failing switch can cause the engine to stall while driving, which is a serious safety risk.
- This is a manageable DIY repair for those comfortable working under the dash, and no programming is required.
Is Your C3500 Ignition Switch Failing?
The ignition switch in the 1988-2000 Chevy C3500 is a mechanical part that sees a lot of use. Over thousands of key cycles, the internal contacts wear out. This can cause a range of strange and frustrating electrical problems. Unlike some parts that fail suddenly, an ignition switch often fails intermittently, making it tricky to diagnose. You might notice problems are worse in very cold weather or when going over bumps.
Generation and Model Year Differences
It is critical to get the right switch for your truck's specific year and options. The GMT400 platform saw a major interior update in 1995.
- 1988-1994 Models: These trucks use a different ignition switch than later models. You must also know if you have a tilt or non-tilt steering column, as the parts are different. 🎬 See this 88-98 Chevy GMT400 ignition switch replacement walkthrough
- 1995-2000 Models: These trucks use a newer style of switch. While there are fewer variations, some parts are still listed specifically for tilt or non-tilt columns, so it's important to verify fitment.
Common Ordering Mistake
Do not confuse the ignition switch with the ignition lock cylinder. The lock cylinder is the part your key slides into. The ignition switch is the electronic component mounted further down the steering column that the lock cylinder activates. If your key is physically hard to turn or getting stuck, you may need a lock cylinder, but if you have electrical problems, the switch is the more likely cause.
Choosing the Right Aftermarket Ignition Switch
For a vehicle of this age, aftermarket parts offer excellent value. There are no widespread recalls or TSBs for the original switches on these trucks, so a quality aftermarket part is a reliable choice.
Brand Tiers
- Premium Brands (OEM Equivalent): ACDelco is the original equipment manufacturer for GM. Choosing ACDelco ensures you are getting a part built to the original factory specifications and is the top choice for a direct replacement.
- Quality Aftermarket Brands: Standard Ignition (Standard Motor Products) is a well-respected brand known for producing reliable electronic components that meet or exceed OEM quality. They are a solid choice if ACDelco is not available or if you're looking for a balance of quality and price.
- Economy Brands: Brands like Replacement, True Tech, and Rostra offer budget-friendly options. These are suitable for getting a truck back on the road affordably, but may not offer the same long-term durability as premium brands.
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $125 - $225 |
| New Aftermarket | $20 - $262 |
| Used OEM | Varies, but not common due to low cost of new parts. |
| Shop Labor | $140 - $210 |
Pro Tip: Check the Basics First
The symptoms of a bad ignition switch can mimic other problems. Before replacing the switch, check your battery connections for looseness or corrosion, and inspect the main fusible links and fuses. A simple wiggle test of the key in the 'ON' position can sometimes reveal a faulty switch; if the dash lights flicker or the engine stalls, the switch is likely the problem.
🎬 Watch: How to diagnose a bad GM truck ignition switchFrequently Asked Questions (FAQ)
Will a bad ignition switch cause a check engine light or error codes?
A failing ignition switch itself does not have a specific trouble code (like a P-code). However, by cutting power unexpectedly to the engine computer, sensors, or transmission, it can cause a variety of communication errors (U-codes) or other seemingly unrelated codes to be stored. If you have a no-start condition along with multiple, confusing error codes, a faulty ignition switch is a possible root cause.
Can I replace the ignition switch myself?
Yes, this is a DIY-feasible job for someone comfortable with working under the dashboard and around the steering column. The job involves removing lower dash panels and two nuts that allow the steering column to drop down for access. You do not typically need to remove the steering wheel itself. You will need basic hand tools, including sockets and Torx drivers.

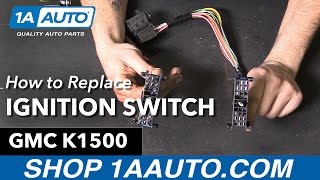

🎬 Watch: How to replace the ignition switch in 95-98 modelsWhat is the difference between the ignition switch and the lock cylinder?
The ignition lock cylinder is the mechanical tumbler assembly that your key slides into. The ignition switch is a separate electronic part that the lock cylinder controls via a connecting rod. If your key is worn or hard to turn, the lock cylinder may be the issue. If you are experiencing electrical problems like stalling or a no-crank condition where the dash lights go out, the ignition switch is the more likely problem.
Does a new ignition switch need to be programmed?
No. For the 1988-2000 Chevrolet C3500, the ignition switch is a direct electrical component and does not require any computer programming or key relearn procedures. This is different from newer GM trucks which may have anti-theft systems (PassLock) integrated with the switch that require a relearn procedure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 26075995 26061331 1990110 1990090 26036311
Mounts to the steering column, activated by a rod from the ignition lock cylinder. Features multiple electrical contacts to power accessory, run, and start circuits. Part design varies significantly between the 1988-1994 and 1995-2000 model year ranges.
