Engine Water Pump Replacement Guide for 1988-2000 Chevrolet K3500
Keep your classic Chevy workhorse from overheating by choosing the right replacement water pump for your specific engine.
- Verify your K3500's specific engine (5.7L, 7.4L, or 6.5L Diesel) before ordering, as the water pumps are not interchangeable.
- Confirm whether you need a standard rotation (for V-belts) or reverse rotation (for serpentine belts) pump to prevent cooling issues.
- For stock applications, a premium aftermarket brand like ACDelco Professional or Gates provides OEM-like reliability.
- It is highly recommended to also replace the thermostat, coolant, and inspect hoses and belts during the job.
Symptoms of a Failing Water Pump
A bad water pump will almost always give you a warning sign before it fails completely. Ignoring these signs can lead to severe engine damage, like a warped cylinder head or blown head gasket. Be on the lookout for these common symptoms:
- Coolant Leaks: This is the most common sign. You may see puddles of green, orange, or pink fluid under the front of your truck. The leak often comes from the pump's "weep hole," a small hole on the bottom designed to leak when the internal seals are failing. You might also see dried coolant trails on the engine.
- Engine Overheating: If your temperature gauge starts climbing into the red, the water pump may not be circulating coolant effectively. If you see the temperature spike, pull over as soon as it's safe and shut off the engine to let it cool down.
- Whining or Grinding Noise: A high-pitched whining or grinding sound from the front of the engine that changes with engine speed often points to a bad bearing inside the water pump. This could also be caused by a loose pulley.
- Wobbly Fan Pulley: If you can physically wiggle the water pump pulley back and forth, the internal bearing is shot and the pump needs to be replaced immediately.
Crucial: Check Engine and Rotation Before You Buy

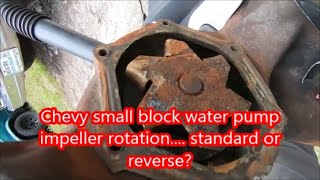

The single biggest mistake when ordering a water pump for a 1988-2000 K3500 is getting the wrong one for your engine and belt system. Always verify your engine size (5.7L V8, 7.4L V8, or 6.5L Diesel) as the pumps are different. Additionally, you must know if you need a standard or reverse rotation pump. 🎬 Learn how to identify your water pump's impeller rotation direction. Trucks with older V-belt systems typically use a standard rotation pump, while newer models with a single serpentine belt require a reverse rotation pump. Check the belt routing diagram under your hood; if the smooth side of the belt runs on the water pump pulley, you need a reverse rotation pump.
Choosing the Right Aftermarket Water Pump
While a dealership OEM part is an option, quality aftermarket pumps can offer similar performance and durability for less money. Here’s a breakdown of available brands:
- Premium Aftermarket (OEM-Equivalent): Brands like ACDelco (Professional line) and Gates are well-regarded choices for daily drivers and work trucks. ACDelco is the original parts supplier for GM, so their professional-grade parts are a reliable bet for fit and function. Gates is a trusted name in cooling systems, though some forum users note that quality can vary depending on the specific part's manufacturing origin.
- Quality Standard Aftermarket: Brands such as GMB, Dayco, and US Motor Works offer a good balance of price and quality. GMB is often cited as a reliable choice, especially if the part is made in Japan.
- Performance/Heavy-Duty: For modified trucks or those used for heavy towing, brands like Edelbrock and Frostbite offer high-flow aluminum water pumps designed for better cooling efficiency. For the 6.5L Diesel, upgrading to a later model year pump (2000+) is a known trick to improve coolant flow and balance between cylinder banks.
Pro Tip: Replace More Than Just the Pump
Since you'll have the cooling system drained and partially disassembled, it's a smart and cost-effective move to replace other wear items at the same time. This includes the thermostat, radiator hoses, heater hoses, and the serpentine belt if it shows signs of cracking or wear. Always refill the system with fresh, new coolant mixed to the correct ratio.
Cost of Replacing a K3500 Water Pump
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Water Pump | $53 - $295 |
| New OEM Water Pump | $250 - $400+ |
| Shop Labor | $200 - $450 |
| Total Professional Replacement | $253 - $745+ |
Frequently Asked Questions
What is the difference between standard and reverse rotation?
Standard rotation water pumps spin in the same direction as the engine's crankshaft, typically driven by the inside (grooved) surface of a V-belt. Reverse rotation pumps spin in the opposite direction, driven by the outside (smooth) surface of a serpentine belt. Using the wrong one will cause the engine to overheat quickly.
Should I get a cast iron or aluminum water pump?
Most OEM and standard replacement pumps for the K3500 are cast iron, which is durable and effective. Performance brands like Edelbrock often use aluminum to save weight and sometimes improve flow with custom impeller designs. For most users, a quality cast iron pump is perfectly adequate.
Do I need a heavy-duty or high-flow water pump?
For a stock K3500 used for daily driving or light towing, a standard replacement pump is sufficient. If you frequently tow heavy loads, live in a hot climate, or have a modified engine, a high-flow pump can provide an extra margin of cooling performance. Owners of the 6.5L Diesel, known for cooling system weaknesses, often upgrade to a higher-flow pump from a 2000+ model year for better reliability.
How difficult is it to replace the water pump myself?
For a GMT400 truck like the K3500, replacing the water pump is a moderately difficult job that a mechanically experienced DIYer can handle. It requires draining the coolant, removing the fan shroud, fan clutch, and belt. Access is generally good. You will need basic hand tools and a torque wrench.

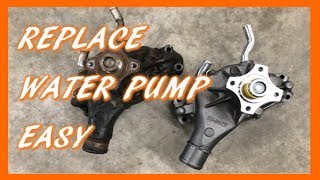

🎬 Follow this step-by-step guide to replace your truck's water pump.Helpful Videos

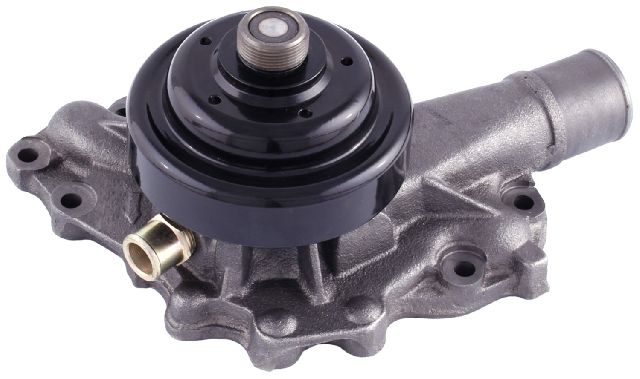

Technical Specifications
OEM Part Numbers: 89060527 12532528 89017748 10238199 12528917 12532526
Fitment is dependent on engine type (5.7L V8, 7.4L V8, 6.5L Diesel) and belt configuration, which determines standard (clockwise) or reverse (counter-clockwise) rotation. Most replacements are made of cast iron, with some performance options in aluminum. Gaskets are typically included with new pumps.
