GMC C3500 Back Up Light Switch Guide for 1988-2000 Models
Having trouble with your reverse lights? This guide will help you diagnose and choose the right replacement back up light switch for your truck.
- The location and type of switch are different for manual vs. automatic transmissions and changed around 1995 for automatics.
- Symptoms include lights not working, staying on, or working intermittently when the shifter is wiggled.
- For automatic models, this switch is often integrated with the neutral safety switch, which can cause a no-start condition if it fails.
- Replacement is a feasible DIY job for most owners and aftermarket parts from brands like Standard Ignition offer reliable, affordable solutions.
Is Your GMC C3500 Back Up Light Switch Failing?
On a workhorse truck like the 1988-2000 GMC C3500, electrical parts can wear out. The back up light switch is a common failure point due to age and use. Symptoms are usually straightforward, making it an easy part to diagnose for most owners.
Key Failure Symptoms
- Reverse Lights Don't Turn On: This is the most obvious sign. If the bulbs and fuse are good, the switch is the next likely culprit. 🎬 Watch this guide to troubleshoot why your reverse lights aren't working.
- Lights Don't Turn Off: A switch stuck in the 'on' position will keep your reverse lights lit, draining your battery.
- Intermittent Operation: You might have to wiggle the shifter to get the lights to work. This often points to a worn or misadjusted switch, especially on automatic models with the column-mounted switch.
Automatic vs. Manual Transmission: A Critical Difference
It is crucial to know which switch your truck needs. The part is different depending on your transmission type and model year.
- 1988-1994 Automatics: The switch is a crescent-shaped unit mounted on the steering column, down by the floor. 🎬 See how to fix reverse lights on 1988-1994 models. It often requires adjustment after installation.
- 1995-2000 Automatics: The switch is a larger, black plastic unit mounted on the driver's side of the transmission where the shift linkage connects. This is often called a Neutral Safety Switch or Park/Neutral Position Switch.
- Manual Transmissions: The switch is a simple, screw-in type located directly on the transmission case.
Choosing an Aftermarket Back Up Light Switch
For a vehicle of this age, aftermarket parts offer a great balance of quality and value. OEM parts can be difficult to find and are often more expensive without providing a significant benefit for a simple switch.
Brand Tiers
- Standard Ignition: A well-regarded aftermarket brand known for producing reliable electronic parts that meet or exceed original specifications. They often use quality materials like copper alloy conductors for better performance and longevity. For many professional mechanics, Standard is a trusted choice.
- Replacement (Store Brands): These are generic or store-brand options. They are typically the most affordable and can be a good choice for a simple part like a back up light switch. While they may not have the same brand recognition as Standard, they are designed to be direct-fit replacements and function correctly.
Given the low cost and critical safety function of this part, if you suspect your switch is failing, it's best to replace it. The narrow price range between available brands means you can choose a trusted name like Standard Ignition without a major cost penalty.
| Part Type | Estimated Price |
|---|---|
| New Aftermarket | $26.16 - $31.75 |
| New OEM (GM Genuine) | $75 - $120 |
| Shop Labor for Installation | $75 - $150 |
Frequently Asked Questions
Where is the back up light switch located on my C3500?
It depends on the year and transmission. For 1988-1994 automatic models, it's on the steering column inside the cab, near the firewall. For 1995-2000 automatic models, it's on the driver's side of the transmission. For manual transmission trucks, it's screwed into the side of the transmission case.
Is this a difficult part to replace myself?
For most DIY mechanics, this is a manageable job. The manual transmission switch is the easiest. The switch on the side of the automatic transmission (1995+) is also fairly accessible. The column-mounted switch (pre-1995) can be awkward to reach under the dash but requires basic tools. Always disconnect the battery before starting any electrical work.
My reverse lights flicker or only work if I hold the shifter. Is the switch bad?
Yes, this is a classic symptom of a failing or misadjusted switch. On the early column-mounted switches, they can slip out of adjustment over time. While you can try to readjust it, the teeth on the switch may be worn, and replacement is often the permanent solution.
Are there any recalls for the back up light switch on my truck?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the back up light switch or neutral safety switch on the 1988-2000 GMC C3500. Recalls for this truck generation typically focus on other issues.
What's the difference between a back up light switch and a neutral safety switch?
A back up light switch only controls the reverse lights. A neutral safety switch prevents the engine from starting in gear. On many automatic GMC C3500s, these two functions are combined into one part, often called a Neutral Safety and Back Up Light Switch.

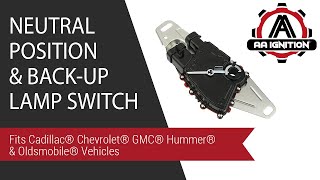

🎬 Learn more about the combined neutral safety and back-up lamp switch.Helpful Videos
Technical Specifications
OEM Part Numbers: 12450016 24229422
Varies by transmission type and model year. Automatic transmission switches are larger multi-function units, while manual transmission switches are simple two-pin, screw-in types.
