A Guide to the Idle Air Control Valve for the 1988-2000 GMC K2500
If your classic GMC K2500 is stalling or idling rough, the Idle Air Control valve is a likely suspect.
- A bad IAC valve is a very common cause of rough idle, stalling, and hard starting on 1988-2000 K2500s.
- Before replacing the part, try cleaning the IAC valve and its port on the throttle body with throttle body cleaner.
- For replacement, Standard Motor Products is a reliable aftermarket choice, while budget brands like URO Parts should be avoided for this critical component.
- Always check for vacuum leaks, as they can cause identical symptoms and are a common issue on these trucks.
Is Your K2500's Idle Unpredictable?
A failing Idle Air Control (IAC) valve can make your reliable GMC K2500 frustrating to drive. This component is known to fail from electrical issues or get clogged with carbon buildup over time. When it goes bad, it can't properly regulate the air your engine needs at idle, leading to a handful of noticeable problems.
Symptoms of a Failing IAC Valve
- Rough or Bouncing Idle: The most common symptom is an engine idle that is erratic, jumping up and down, or is consistently too high or too low. 🎬 Watch: Troubleshooting a rough or hunting idle on TBI engines
- Engine Stalling: The engine may stall when you come to a stop, put the truck in gear, or when using accessories like the A/C.
- Hard Starting: A bad IAC can make it difficult to start the engine, especially when cold. It might crank but fail to start, or start and then immediately die.
- Check Engine Light: A malfunctioning IAC valve can trigger the Check Engine Light. A common trouble code associated with this part is P0505 (Idle Control System Malfunction).
Check Other Causes First
Idle problems on these trucks can also be caused by other issues. Before replacing the IAC, check for vacuum leaks (especially around the TBI base gasket), a dirty throttle body, or a bad coolant temperature sensor, as these can cause similar symptoms.
Choosing the Right Aftermarket IAC Valve
The original ACDelco part is the benchmark for quality, but several aftermarket options are available. For a truck of this vintage, a quality aftermarket part often provides a good balance of price and performance. Here’s a breakdown of the available brands.
Brand Quality Tiers
- Premium Aftermarket (Good): Brands like Standard Motor Products (Standard Ignition) are generally considered a top-tier aftermarket choice. They have a reputation for good quality and reliability, though they often cost more than budget options.
- Mid-Grade (Use With Caution): Holstein presents itself as a quality supplier with a low failure rate, but owner reviews are mixed. One forum user described the brand as "PURE JUNK," suggesting quality may be inconsistent.
- Economy / High-Risk (Avoid): URO Parts has a widespread negative reputation in online forums for being a low-quality, budget brand. While suitable for simple, non-critical parts, it is not recommended for an electronic component like an IAC valve. True Tech falls into this category as a budget-friendly option with little available brand reputation data.
Pro Tip: Try Cleaning It First
Sometimes, the IAC valve isn't broken, just dirty. Carbon can build up in the valve's passage and on its pintle (plunger), causing it to stick. Removing the IAC and cleaning the port and valve with throttle body cleaner can sometimes restore function and save you the cost of a new part. Do not use brake cleaner.

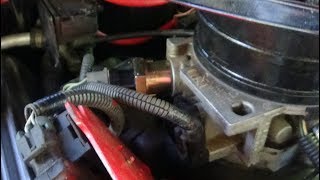

🎬 See how to properly clean your IAC valve and portCost of Replacing a GMC K2500 IAC Valve
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $30 - $80 |
| New OEM (ACDelco) | $80 - $150 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I just clean my old IAC valve?
Yes, and it's often a good first step. If the valve is just stuck from carbon buildup, cleaning it and the throttle body passage may solve your idle issue. If the valve's internal motor has failed, cleaning won't help and you will need a replacement.
Is the IAC valve different for TBI and Vortec engines?
Yes, the physical design can differ. Earlier TBI models often use a larger, screw-in style IAC valve, while later Vortec engines use a smaller valve held in by two bolts. Their function is the same, but they are not interchangeable. Ensure you order the correct part for your specific year and engine.
Do I need to reset the computer after installing a new IAC?
It is recommended. After installing the new valve, you can disconnect the negative battery terminal for about 15 minutes to clear the computer's memory. When you restart the truck, the computer will begin a relearning process for the new valve. Driving for a few minutes can help this process.
Is it hard to replace the IAC valve myself?
No, this is a very easy DIY job for a home mechanic. It is located on the throttle body under the air cleaner and is typically held on by two small bolts or it screws into place. Basic hand tools are all that's required, and the job can usually be done in under 30 minutes.

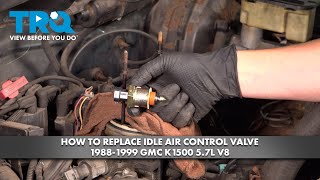

🎬 Watch this step-by-step IAC replacement for 1996-1999 Vortec modelsHelpful Videos
Technical Specifications
OEM Part Numbers: 17113209 19236095 217-435
Located on the throttle body, either screw-in or 2-bolt mount depending on year/engine. Features a 4-pin oval electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
