GMC K3500 1988-2000 4WD Front Axle Actuator: A Comprehensive Guide
If your 1988-2000 GMC K3500's four-wheel drive isn't engaging, the front axle actuator is the most likely culprit.
- The original thermal 4WD actuator is a common failure point, known for slow engagement, especially in the cold.
- Upgrading to a modern electric actuator is a popular, reliable, and highly recommended fix.
- Replacement is a simple DIY job, but you must verify your actuator type (thermal vs. electric) before ordering.
- For maximum durability, consider a manual cable-operated Posi-Lok system to eliminate the actuator completely.
Understanding the 4WD Actuator in Your 1988-2000 GMC K3500
If you own a GMT400-era GMC K3500, you know it's a tough truck. But one of its most common weak points is the four-wheel-drive engagement system, specifically the front axle actuator. Many of these trucks originally came with a thermal actuator, which uses a wax element that heats up to engage the front axle. This design is known for being slow, especially in cold weather, and prone to failure over time.

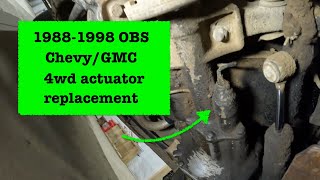

🎬 Watch a comparison test between thermal and electric actuator designs.The Thermal vs. Electric Actuator Upgrade

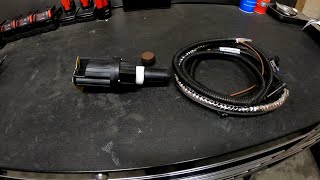

The original thermal actuators are a known issue. They can take a long time to engage or fail to engage at all, leaving you without 4WD when you need it most. Because of this, a very common and highly recommended upgrade is to replace the old thermal style with a modern electric motor actuator. These electric units are faster, more reliable, and not affected by temperature. Many aftermarket kits, like those from Dorman, are designed specifically for this upgrade and include the necessary wiring harness adapter.
Symptoms of a Failing 4WD Actuator
A bad actuator will usually give you clear signs. The most common symptom is that the 4WD will not engage, and the indicator light on the dash may blink or not light up at all. You might hear a clicking sound from the front differential area, or you might get no response whatsoever. 🎬 Check out this diagnostic tip for troubleshooting your front axle actuator. In colder weather, a failing thermal actuator will take longer and longer to engage until it stops working completely.
Common Ordering Mistake
The biggest issue is ordering the wrong part. The 1988-2000 model years saw a transition from thermal to electric actuators. Before ordering, check if your truck has the original 2-pin thermal unit or if it has been upgraded to a different connector style. If you are upgrading from thermal to electric, you will need a conversion harness (like Dorman 600-600) and the corresponding electric actuator (like Dorman 600-101). Note that for some heavy-duty models (over 8500# GVW) from 1988-1993, a TSB states the electric upgrade cannot be installed and the thermal unit remains the service part.
Choosing the Right Aftermarket 4WD Actuator
When replacing your actuator, you have several good aftermarket options. You don't necessarily need to pay for a genuine OEM part, as many aftermarket brands offer reliable, and often improved, solutions.
- ACDelco: Often the original equipment supplier for GM, ACDelco parts are a trusted, high-quality choice that meets or exceeds OEM specifications. They offer both original-style thermal replacements and newer electric designs.
- Dorman: Dorman is well-known for providing aftermarket solutions that often improve on the original design. They are a very popular choice for the electric actuator upgrade, offering complete kits with the actuator and wiring harness.
- Standard Ignition (SMP): A long-standing, reputable brand in the aftermarket, Standard Ignition offers quality replacement actuators that are a dependable choice for this repair.
- Replacement / Store Brands: These are typically the most budget-friendly options. While they can get the job done, quality can be inconsistent compared to more established brands.
Pro Tip: The Posi-Lok Alternative
For owners who want ultimate reliability and control, and to eliminate electronic or thermal failure points entirely, a 4x4 Posi-Lok system is a popular modification. This system replaces the actuator with a manually operated cable that you pull from inside the cab to engage the front axle. This gives you direct, positive engagement every time.
Installation Notes
Replacing the 4WD actuator is a straightforward job that most DIY mechanics can handle in under an hour. It is located on the front of the differential and simply threads into the housing.
- Safely raise and support the front of the vehicle.
- Locate the actuator on the front differential and disconnect the electrical connector.
- Using a large wrench, unscrew the old actuator from the axle housing.
- If upgrading to an electric actuator, install the small spacer that comes with the kit into the axle tube first.
- Thread the new actuator in until it is snug.
- Connect the new wiring harness adapter if required, and plug it in. Be sure to waterproof any new wire connections. 🎬 Follow this step-by-step video guide to replace your 4WD actuator.
Important: Do not test the new actuator by plugging it in and letting it hang by the wires. Operating it without being installed can cause it to over-extend and break the new part. Always install it fully in the axle housing before testing.
Frequently Asked Questions
Why does my 4WD take so long to engage in the cold?
This is the classic symptom of an aging thermal actuator. The wax inside becomes less efficient over time, requiring more heat and more time to engage the front axle. Replacing it with a new thermal unit or upgrading to an electric actuator will solve the problem.
My truck has a floor shifter for 4WD. Does it still have an actuator?
Yes. Whether you have a floor shifter or push-button 4WD, the system on these trucks still uses an actuator on the front axle to engage the front wheels. The shifter or button only engages the transfer case; the actuator is responsible for the final step of locking the front axle.
Can I just leave the front axle engaged all the time?
Some products exist to permanently lock the front axle. While this ensures the front axle is always ready, it will cause increased wear on front drivetrain components like the CV axles and front driveshaft, and may slightly decrease fuel economy. It is generally not recommended for vehicles that spend most of their time on paved roads.
Are there any recalls for the 4WD actuator on my K3500?
No specific recalls were found for the 4WD actuator on the 1988-2000 GMC K3500. However, GM did issue a Technical Service Bulletin (TSB #76-43-01A) detailing the slow engagement issue with the original thermal actuators and outlining the procedure to replace them with the newer, faster electric motor type.
Helpful Videos
Technical Specifications
OEM Part Numbers: 26013495 26060073 88959465
Location: Front Differential Housing. Types: Thermal (early models), Electric (late models/upgrades). Common Connectors: 2-Pin Round (Thermal), various multi-pin for electric.
