Chevrolet C1500 Instrument Panel Dimmer Switch Guide (1988-2001)
If your dash lights are flickering or dead, the dimmer switch is a likely culprit on your C1500.
- Failure of the dimmer switch is a very common problem on 1988-2001 C1500s, causing flickering or dead dash lights.
- The replacement is an easy, beginner-friendly DIY job that takes less than 30 minutes.
- Before buying a new part, check the fuse and look for corrosion on the switch's electrical connector.
- If a new switch doesn't fix it, the problem is likely a bad ground, a common issue on GMT400 trucks.
Is Your C1500's Dash Dim or Dead?
A common point of failure on the 1988-2001 (GMT400) Chevy C1500 is the instrument panel dimmer switch. Over time, the internal components can wear out, corrode, or the circuit board can crack, leading to a host of electrical gremlins. Symptoms often start as an annoyance, like flickering dash lights, but can progress to a complete loss of instrument illumination, making it difficult to see your speed at night.
Common Failure Symptoms
- Instrument panel lights flicker or work intermittently.
- Dash lights do not turn on at all.
- Dimmer wheel no longer adjusts the brightness.
- A burning smell comes from the switch area.
- Dome light stays on or won't turn on when using the switch.
- In some cases, it can be related to parking light or headlight issues.
Choosing the Right Aftermarket Dimmer Switch
When your original dimmer switch fails, you have a few options. While you could try to find a used OEM switch from a junkyard, its remaining lifespan is a gamble. New aftermarket switches offer a reliable and affordable solution. The two main brands you'll encounter are Standard Ignition and True Tech.
Brand Quality: Standard Ignition vs. True Tech
Standard Ignition (Standard Motor Products): Often considered a premium aftermarket brand, Standard has been around for over 100 years. They are known for producing parts that meet or exceed original equipment (OE) specifications. Their switches often feature copper alloy conductors for better conductivity and are rigorously tested for performance. For an older truck like the C1500, a Standard part is a solid choice for reliability and longevity.
True Tech: This brand is positioned as a reliable and honest service provider, often associated with NAPA Auto Care Centers. While there is less specific information available about "True Tech" as a parts manufacturer versus a service center name, parts sold under this banner are generally seen as dependable, quality replacements for daily drivers. They provide a cost-effective alternative to premium brands while still delivering good performance.
Pro Tip: Before replacing the switch, it's wise to check the fuse first and inspect the wiring connector for any signs of melting or corrosion, which is a common issue. Sometimes, the problem is a bad ground connection elsewhere on the truck, a known quirk of the GMT400 platform.
Estimated Costs for a New Dimmer Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., True Tech, Duralast) | $49.98 - $90.00 |
| New Premium Aftermarket (e.g., Standard Ignition) | $90.00 - $141.33 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions
Is replacing the dimmer switch hard to do myself?
No, this is a very DIY-friendly job for most C1500 owners. It typically involves removing the plastic dash bezel that surrounds the instrument cluster, which is held in by clips. Once the bezel is off, the switch can be unclipped from the back, the electrical connector removed, and the new switch installed. The entire process usually takes less than 30 minutes.
🎬 Watch this easy step-by-step guide to repairing your dimmer switch.Are there any recalls for the C1500 dimmer switch?
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the instrument panel dimmer switch on the 1988-2001 Chevrolet C1500. There were major GM recalls for ignition switches in other vehicles around 2014, but these did not apply to the C1500's dimmer switch.
My new switch didn't fix the problem. What now?
If a new switch doesn't solve your lighting issue, the problem is likely in the wiring. GMT400 trucks are known for having grounding issues. Check the ground wire for the dash harness. You may also have a corroded pin in the connector that plugs into the switch. In some cases, the circuit board on the instrument cluster itself can have cracked solder joints.

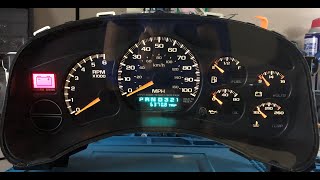

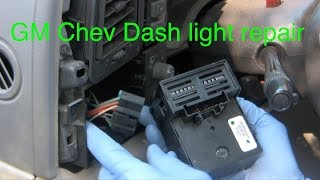

🎬 Learn how to fix a dark instrument panel and radio.Why do my dash lights flicker when I hit a bump?
This classic symptom almost always points to a loose connection. It could be a poor connection inside the dimmer switch itself, a loose electrical connector plug on the back of the switch, or a faulty ground wire. Replacing the switch often resolves this, as the internal contacts are the most common wear point.
🎬 See why your dashboard lights flicker while you are driving.Helpful Videos
Technical Specifications
The dimmer switch for the 1988-1994 models is distinct from the 1995-2001 models. The earlier switch is a more rectangular unit, while the later models use a multi-function switch assembly. Always verify the correct part for your specific year.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
