Chevrolet C1500 Starter Motor Guide for 1988-2001 Models
Solve common starting problems on your GMT400 truck, including heat soak, with the right aftermarket starter.
- A common failure on the C1500 is 'heat soak,' where the starter won't work when hot.
- Symptoms of a bad starter include clicking, grinding, slow cranking, or no crank at all.
- An aftermarket gear-reduction or 'mini-starter' is a popular upgrade to solve heat soak and improve cranking power.
- Always disconnect the battery before beginning the replacement to prevent electrical shorts.
Is Your C1500 Starter Failing?
If you turn the key and hear a single, sharp click, a rapid clicking sound, or a grinding noise, your starter is likely the problem. Other signs include the engine cranking over very slowly, or the dashboard lights coming on but the engine doing nothing at all. Sometimes, these issues can be intermittent, working one day and failing the next, which often points to a starter that's about to fail completely. A weak or dead battery can cause similar symptoms, so it's always best to make sure your battery is fully charged and the terminals are clean before replacing the starter.
A Common Problem: Starter Heat Soak
A very common issue on 1988-2001 C1500 trucks is "heat soak." This happens when the starter gets hot from the nearby exhaust manifold. The extra heat increases electrical resistance inside the starter's solenoid, preventing it from working. You'll notice this if your truck starts fine when cold, but after a drive, it refuses to crank until it has cooled down for 15-30 minutes. 🎬 Watch this quick video on fixing starter heat soak issues. This can be frustrating and leave you stranded.
Choosing the Right Aftermarket Starter
For an older truck like the GMT400, aftermarket starters are an excellent choice. They are widely available, affordable, and often feature designs that solve common factory problems like heat soak. The original starters were large and heavy; many modern aftermarket options are smaller, lighter, and more powerful gear-reduction units.
Brand Tiers for Your C1500
Your choice depends on your budget and needs. Here’s a breakdown of available brands:
- Performance / Problem-Solvers (Powermaster, Proform): These brands specialize in high-torque, gear-reduction starters. They are often smaller, lighter, and provide more cranking power, making them an excellent upgrade to combat heat soak and turn over modified engines. Powermaster has a strong reputation for reliability and power. Proform is a more budget-friendly performance option, but some users report mixed long-term reliability.
- OEM-Quality Replacement (ACDelco): ACDelco is GM's own parts brand and is considered the original equipment standard. They offer different product lines, with the "Gold" (formerly "Professional") series being the top-tier choice for fit and reliability. While excellent, they can be more expensive and may still be susceptible to heat soak without a proper heat shield.
- Standard Aftermarket (MPA): Motor Parts of America (MPA) is a major supplier of new and remanufactured starters. They are a solid, budget-friendly choice for a standard replacement that meets original specifications. 🎬 See how to replace or upgrade your Chevy 350 starter.
Pro Tip: To permanently solve heat soak issues, choose a gear-reduction mini-starter (like those from Powermaster or Proform) and consider adding a heat shield or exhaust wrap for extra protection. Many owners find this combination completely eliminates hot-start problems.
| Part Type | Price Range |
|---|---|
| New Aftermarket | $85.51 - $433.59 |
| New OEM (GM Genuine/ACDelco) | $140 - $350+ |
| Remanufactured Aftermarket | $75 - $200 |
| Shop Labor | $100 - $250 |
Frequently Asked Questions (FAQ)
How do I know if it's the starter or just a bad battery?
If you can jump-start the truck and it runs fine, the problem is likely your battery or alternator. If you hear a distinct clicking or grinding sound when you turn the key, but a jump-start doesn't help, the starter is the primary suspect. Also, if the dashboard lights are bright but the engine won't crank, it points more toward the starter.
What are starter shims and will I need them?
Starter shims are thin metal plates used to adjust the distance between the starter gear and the engine's flywheel. An incorrect gap can cause grinding noises or damage. While not always needed, it's a good idea to check the clearance during installation. Many performance starters include shims and instructions.
Is a high-torque or mini-starter worth it for my stock truck?
Yes, for the 1988-2001 C1500, it's often a worthwhile upgrade even for a stock engine. The smaller size makes installation easier, and the gear-reduction design provides faster cranking and is the best solution for the common heat soak problem.

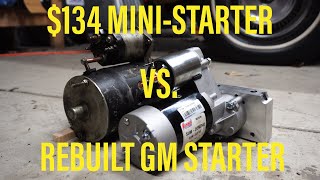

🎬 Compare a high-torque mini-starter against a standard rebuilt unit.Were there any recalls or TSBs for the C1500 starter?
No recalls were found for the starter motor on the 1988-2001 Chevrolet C1500. While some General Motors service bulletins exist for starter-related noises or fuse issues on other models, none specifically target this truck's common failure modes like heat soak. The heat soak issue is a widely known design-related problem among owners.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455065 19136232 10465389 88877115
The 1988-2001 C1500 used several starter designs, including large direct-drive units and later, smaller gear-reduction starters on Vortec engines. Most are secured by two bolts and feature a solenoid mounted on the starter body. Aftermarket options often feature a gear-reduction design for higher torque and may require shims for proper flywheel engagement.
