Throttle Position Sensor Guide for 1988-2001 Chevrolet C1500
Solving hesitation, stalling, and poor performance on your GMT400 truck starts with understanding this critical sensor.
- A bad TPS on a C1500 commonly causes hesitation, rough idle, and poor shifting.
- Replacement is a simple, DIY-friendly job requiring only a Torx screwdriver and less than 30 minutes.
- For best results and longevity, choose an OEM-equivalent brand like ACDelco or Delphi.
- There are no open recalls or relevant TSBs for the TPS on this specific vehicle range.
Is a Failing Throttle Position Sensor Causing Your Truck's Problems?
If your 1988-2001 Chevrolet C1500 is hesitating, stalling, or just not running right, a bad Throttle Position Sensor (TPS) could be the culprit. This sensor is a common failure point on these GMT400 trucks, but it's also straightforward to diagnose and replace. A faulty TPS can cause a range of frustrating issues, from a simple Check Engine Light to poor acceleration and rough shifting.
Common Symptoms of a Bad TPS on a C1500
- Hesitation or Stumbling: The truck may bog down or hesitate when you press the gas pedal.
- Poor or Unstable Idle: The engine might idle roughly, surge, or stall completely.
- Check Engine Light: A bad TPS will often trigger the Check Engine Light with codes like P0121, P0122, or P0123.
- Lack of Power: The truck may feel sluggish and won't accelerate properly.
- Transmission Shifting Problems: Since the computer uses the TPS signal for shifting, you might experience harsh or erratic gear changes. 🎬 Watch how to diagnose and test for a failed sensor.
Choosing the Right Aftermarket TPS: Brand Quality Matters
When replacing the TPS on your C1500, you have several aftermarket options. While OEM parts are a benchmark, high-quality aftermarket brands can offer similar performance and reliability, often at a better price. For electronic parts like a TPS, it's wise to avoid the cheapest options, as they can be inconsistent and fail prematurely.
Tier 1: OEM & OEM-Equivalent Brands
- ACDelco: As the original equipment supplier for GM, ACDelco is often the go-to choice. However, be aware that ACDelco has different product lines; the "Professional" or "GM Original Equipment" lines are generally preferred over their budget "Advantage" line for critical sensors.
- Delphi: Delphi was once a part of GM and manufactured many of the original components. They are widely considered a top-tier choice for sensors and electronics, offering OEM quality. In many cases, a Delphi part may be identical to the ACDelco part, just in a different box.
Tier 2: Reputable Aftermarket Brands
- Standard Motor Products (Standard Ignition): A long-standing and respected brand in the aftermarket that produces reliable sensors.
- NGK/NTK: Known for their ignition components and oxygen sensors, NTK has expanded into a full line of technical sensors and is a reputable choice.
- Walker Products: A well-known aftermarket manufacturer that provides a wide range of engine management components.
Tier 3: Budget & Store Brands
- Dorman, True Tech, Replacement: These brands offer a more budget-friendly option. While they can be a viable choice, especially for a quick repair, some forum discussions mention a higher chance of premature failure or out-of-box issues compared to Tier 1 brands. For a sensor that is critical to drivability, spending a little more for a higher-tier brand is often recommended.
Pro Tip: The TPS on these trucks is a simple, non-adjustable sensor held on by two Torx screws. Some early models or tight engine bays might make access tricky, but it's generally a very DIY-friendly job that takes less than 30 minutes.
🎬 See a step-by-step guide to replacing your C1500's TPS.Cost of Replacing a C1500 Throttle Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket TPS | $25 - $75 |
| New OEM (ACDelco) TPS | $60 - $90 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Do I need to adjust the new TPS after installation?
No, the Throttle Position Sensors for the 1988-2001 C1500 are not adjustable. They are designed to be bolted on, plugged in, and are ready to go. The mounting holes are fixed.
🎬 Learn more about the TPS on TBI small block engines.Can a bad TPS cause my truck not to start?
While it's more common for a bad TPS to cause poor running conditions, a completely failed sensor sending a false wide-open-throttle signal could potentially cause a no-start or hard-start flood condition.
What tools do I need to replace the TPS?
You will typically only need a T20 or T25 Torx bit screwdriver or socket to remove the two mounting screws. In some cases, you may need a small wrench or pliers if access is tight.
Are there any recalls for the TPS on my C1500?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the throttle position sensor on the 1988-2001 Chevrolet C1500. Any related TSBs or special coverage programs for TPS issues apply to much newer model years.

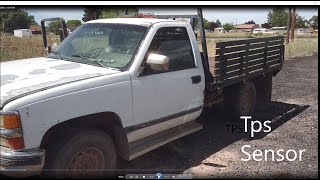

Helpful Videos
Technical Specifications
OEM Part Numbers: ACDelco 213-4668 ACDelco 213-3859
3-pin connector, spring-loaded, mounts to the side of the throttle body with two Torx screws. Operates on a 5-volt reference signal.
