Chevrolet S10 Windshield Washer Pump Replacement Guide (1988-2005)
A complete guide for Chevrolet S10 owners needing to diagnose and replace a failing windshield washer pump.
- Diagnose first: Listen for the pump motor's hum. No sound points to an electrical issue (check the fuse), while a hum with no fluid suggests a clog or empty tank.
- For 1988-1998 models, a faulty wiper motor circuit board can cut power to the washer pump, mimicking a pump failure.
- Replacement is a simple, beginner-friendly DIY task that takes less than an hour with basic tools.
- Both ACDelco (OEM-quality) and Trico (standard aftermarket) are reliable replacement options for the S10.
Is Your S10 Washer Pump Failing?
A broken windshield washer pump can be a safety issue, especially in bad weather. Luckily, the signs of failure are usually obvious. The first step is to determine if the pump itself is the problem or if it's something simpler like a fuse or clogged nozzle.
Common Symptoms of a Bad Washer Pump:
- No Sound, No Fluid: You press the washer button and hear nothing. This often points to a dead pump or an electrical problem, like a blown fuse. Always check the fuse for the washer system first.
- Pump Hums, No Fluid: You can hear the pump motor running, but no fluid comes out. This could mean the reservoir is empty, the hoses are clogged or disconnected, or the pump's internal parts have failed.
- Weak or Uneven Spray: The fluid barely reaches the windshield or sprays unevenly. This can be caused by clogged nozzles or a weak pump that can no longer create enough pressure.
- Leaking Fluid: You notice a puddle of blue washer fluid under the front of your truck. The rubber grommet that seals the pump to the reservoir is a common failure point and can cause leaks.
Known Issue for 1988-1998 S10 Models
On earlier S10s, a problem with the windshield wiper motor circuit board is common. Cracked solder joints on this board can interrupt power to the washer pump, even if the pump itself is good. If you have checked the fuse and the pump and still have no power, this circuit board is the next place to look.
🎬 See how to identify and fix a failing wiper circuit board.Choosing the Right Aftermarket Pump
For the 1988-2005 S10, you don't need to buy an expensive part from a dealership. Quality aftermarket pumps are reliable and affordable. The pump is located on the washer fluid reservoir, which is typically found in the engine bay on the driver's side, sometimes requiring removal of the air intake box for access.
Brand Quality: ACDelco vs. Trico
Two common aftermarket brands for your S10 are ACDelco and Trico. Both are solid choices, but they fit into slightly different tiers.
- ACDelco (OEM-Quality Aftermarket): ACDelco is General Motors' own parts brand. Their pumps are considered original equipment (OE) replacements, meaning they are manufactured to the same specifications for fit and performance as the part your S10 came with from the factory. Owners often choose ACDelco for its reputation of durability and perfect fitment.
- Trico (Standard Aftermarket): Trico is a well-respected brand, famous for its wiper blades, that also produces quality replacement washer pumps. These pumps are designed to match OEM specs for a straightforward installation and offer reliable performance at a budget-friendly price.
Pro Tip: A Simple DIY Job
Replacing the washer pump on an S10 is a great job for a beginner. It's usually held in place by a simple rubber grommet. The process involves siphoning the fluid from the reservoir, disconnecting one electrical plug and one hose, prying the old pump out, and pressing the new one in. The entire job can often be done in under 30 minutes with basic hand tools.

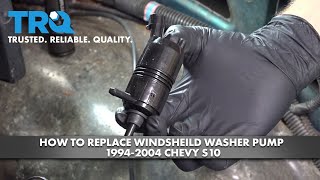

🎬 Watch this step-by-step guide to replacing your S10 washer pump.Cost of Replacing an S10 Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Trico, etc.) | $29.34 - $40.14 |
| New OEM-Quality (ACDelco) | $36 - $75 |
| Shop Labor | $49 - $72 |
| Total Professional Replacement | $85 - $203 |
Frequently Asked Questions
Can I replace the washer pump myself?
Yes, this is a very DIY-friendly repair. 🎬 Follow this DIY walkthrough for a quick washer pump replacement. The pump is easily accessible on the reservoir. You will need basic tools to potentially remove the airbox for better access, a container to catch washer fluid, and perhaps a small pry tool to remove the old pump from its grommet.
What is the most common mistake when ordering?
While the pump is largely the same across the 1988-2005 range, it's always wise to visually inspect your current setup. Confirm you have a reservoir-mounted electric pump. Some very early GM trucks used a different mechanical pump system attached to the wiper motor, though this is less common on the S10.
Do I need to replace the grommet too?
Yes. Most new pumps come with a new rubber grommet, and you should always use it. The old grommet can become hard and brittle, leading to leaks even with a new pump.
My new pump is installed but still doesn't work. What now?
First, re-check the fuse. Second, use a multimeter to confirm you are getting 12-volt power at the pump's electrical connector when the washer switch is pressed. If there is no power, the problem lies in the switch, wiring, or the wiper motor circuit board on 1988-1998 models.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89001126
The windshield washer pump for the 1988-2005 Chevrolet S10 is a 12V electric pump that press-fits into the side or bottom of the washer fluid reservoir. It uses a single electrical connector and has one outlet port for the washer hose.
