A Guide to the Engine Timing Chain Guide for the 1988-2005 Pontiac Grand Am
Don't let a rattling noise turn into a catastrophic engine failure; here's what you need to know about your Grand Am's timing chain guides.
- Do not ignore a rattling engine noise; it is a direct warning of a failing timing chain guide which can lead to catastrophic engine failure.
- The 4-cylinder engines (2.3L, 2.4L, 2.2L) are much more likely to have timing chain guide issues than the V6 engines.
- Always replace the guides as part of a complete timing kit (chain, sprockets, tensioner) to ensure a lasting repair.
- This is a complex and labor-intensive job (5/5 difficulty) that is not recommended for a DIY mechanic; professional installation is strongly advised.
Understanding Timing Chain Issues in Your Grand Am
All engines used in the 1988-2005 Pontiac Grand Am—from the early 2.3L Quad 4 to the later 2.2L Ecotec and 3.4L V6—use a timing chain, not a timing belt. While chains are built to last longer than belts, the plastic guides that keep them in place are a common failure point. Over time, these guides can become brittle from heat and age, then crack or break apart. When a guide fails, the timing chain loses its tension, which is the start of serious problems.
Interference Engines Mean High Stakes
All Grand Am engines from this era are interference engines. This means that if the timing chain breaks or jumps time, the pistons will collide with the open valves. This causes catastrophic, and often engine-ending, damage. Addressing symptoms early is not just recommended; it's critical to saving your engine.
Engine-Specific Problems
Not all Grand Am engines share the same risk level for timing chain guide failure. The 4-cylinder models are significantly more prone to issues.
- 2.3L Quad 4 (1988-1994) & 2.4L Twin Cam (1995-2002): These engines are well-known for timing chain problems. The plastic guides become brittle and break, and the tensioners can fail, causing a slapping or rattling noise 🎬 Watch: Diagnostic video of a rattling Ecotec timing chain from the passenger side of the engine. Some 1992-1993 models were also subject to a technical service bulletin (TSB) for a whining noise related to the crankshaft gear design.
- 2.2L Ecotec (2002-2005): These engines, particularly pre-2005 models, had issues with the original timing chain tensioner design. A GM technical service bulletin (TSB #03-06-01-017) was released detailing a new, higher-flow timing chain oiler nozzle to improve lubrication at low RPMs, which helps the new guides and tensioner last longer.
- 3.1L V6 (1994-1998) & 3.4L V6 (1999-2005): The V6 engines have a more robust timing system. Failures are less common but can still occur at very high mileage, usually presenting as a stretched chain causing noise.
Choosing the Right Aftermarket Timing Chain Guide
When a timing chain guide fails, it's essential to replace the entire timing kit, which includes the chain(s), sprockets, tensioner(s), and all the guides. Just replacing one broken guide is a temporary fix that ignores the stretched chain and worn sprockets that likely caused the failure.
Brand Quality Tiers
- Premium Aftermarket (Cloyes, Melling): Cloyes is a long-standing, reputable brand in timing components, often considered an OEM-equivalent or even an upgrade. Many of their kits replace original plastic parts with more durable metal ones. Melling is another well-regarded American brand, known for quality timing sets and oil pumps. 🎬 See this step-by-step Cloyes timing kit installation guide For the GM Ecotec engine, Melling provides detailed replacement guides and quality kits. You can confidently choose either brand for a reliable, long-lasting repair.
- OEM-Equivalent (INA): INA, part of the Schaeffler Group, is a major OEM supplier for many European and some domestic automakers. While less commonly discussed in Grand Am forums, their parts are manufactured to high, OEM-level standards. If you find an INA kit for your engine, it should provide quality and reliability comparable to the original parts.
Pro Tip: Replace the Water Pump

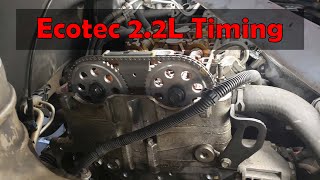

On the 4-cylinder Quad 4, Twin Cam, and Ecotec engines, the water pump is driven by the timing system. Since replacing the timing chain requires extensive labor to open up the front of the engine, you will already have easy access to the water pump. Replacing it at the same time is a smart, preventative measure that can save you from paying for the same labor 🎬 Watch: Full walkthrough of timing chain and water pump replacement all over again in the near future.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Kit (Guides, Chain, Sprockets, Tensioner) | $70 - $190 |
| New OEM Timing Kit | $150 - $600 |
| Shop Labor | $560 - $1200+ |
| Total Professional Replacement (Aftermarket Parts) | $630 - $1400+ |
Frequently Asked Questions
Can I just replace the one broken timing chain guide?
This is not recommended. A broken guide is usually a symptom of a larger problem, like a stretched chain or failed tensioner. Replacing only the guide without addressing the root cause will lead to another failure in a short time. Always replace the complete timing kit.
What causes the timing chain guides to fail?
The primary causes are age and heat cycles, which make the original plastic guides brittle. Failure of the hydraulic tensioner, often due to infrequent oil changes or low oil levels, can also cause the chain to slap against the guides and break them.
Are there any recalls for the Grand Am timing chain?
No, there have not been any specific safety recalls issued by the National Highway Traffic Safety Administration (NHTSA) for timing chain failures on the 1988-2005 Pontiac Grand Am.
What does the P0016 code mean?
The trouble code P0016 (and the related P0017) indicates a "Crankshaft Position - Camshaft Position Correlation" error. The engine's computer has detected that the crankshaft and camshaft(s) are not in sync. This is a classic sign of a stretched or jumped timing chain and should be treated as a serious warning of potential engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90537337 22538542
Component materials vary by brand and engine. Guides are typically made of high-density plastic, sometimes with a metal backing. Chains are steel. Sprockets are powdered or cast metal. Aftermarket kits from brands like Cloyes may feature all-metal components for increased durability over the OEM plastic parts.
