Chevrolet V3500 Distributor Guide: Choosing the Right Part for 1989-1991
If your heavy-duty Chevy is running rough, stalling, or won't start, the distributor could be the problem.
- A failing distributor can cause a no-start, rough idle, or misfires. Often the internal electronics (ICM or pickup coil) are the cause.
- Replacing the distributor requires setting the engine to Top Dead Center and using a timing light to set base timing to 0 degrees afterward.
- Be wary of the cheapest generic distributors, as they have a reputation for poor quality and premature failure.
- A special angled distributor wrench (9/16") makes the job significantly easier by allowing access to the hold-down bolt.
Is Your V3500's Distributor Failing?
The distributor in the 1989-1991 V3500 is a common failure point, often due to its internal parts wearing out. The Ignition Control Module (ICM) and the pickup coil, which are housed inside the distributor, are frequent culprits. When these parts fail, they can leave you stranded. Symptoms often start small, like a rough idle or occasional stumble, but can quickly lead to a no-start condition.
Symptoms of a Bad Distributor
- Engine Won't Start: This is a critical symptom. A failed pickup coil or ignition module inside the distributor can prevent spark entirely. 🎬 Watch this diagnostic guide for no-start and no-spark issues.
- Rough Idle and Stalling: The engine may shake, stumble, or die when you're stopped. This can be caused by an erratic signal from a failing pickup coil.
- Engine Misfires: You might feel the engine hesitate or jerk while driving. This can be due to cracks in the distributor cap or a worn rotor not delivering spark reliably.
- Check Engine Light: The computer can detect problems with the signals coming from the distributor, triggering a light on your dash.
- Backfiring: Incorrect spark timing can cause fuel to ignite in the exhaust, leading to loud popping sounds.
Choosing Your Aftermarket Distributor: Brand Quality
When shopping for a new distributor, you'll find a wide range of prices and brands. For a workhorse truck like the V3500, reliability is key. OEM parts are hard to find new, so the aftermarket is your main source.
| Brand Tier | Brands | Our Take |
|---|---|---|
| Performance / High-End | MSD, FAST, Pertronix, Performance Distributors | Brands like MSD offer billet aluminum housings and high-output components. However, forum users report mixed long-term reliability, with some experiencing early failures of expensive ignition boxes. For a stock or lightly modified truck, these can be overkill. Performance Distributors makes a well-regarded, but pricey, DUI distributor. |
| Standard Replacement | Cardone, Accel, MSD Street Fire | These brands aim for OEM-level performance. MSD's "Street Fire" line is their more budget-friendly option and is generally seen as a reliable stock-style replacement. Accel has a mixed reputation in forums, with some users reporting issues with older products. Cardone is a long-standing brand in the aftermarket for new and remanufactured parts. |
| Economy / Budget | Replacement, and other unbranded parts | These are the most affordable options and are widely available. Be cautious with the cheapest distributors. Forum and user reviews show these can have manufacturing defects, use low-quality internal components that fail quickly, and may cause running issues right out of the box. If you use one, it's wise to inspect it carefully before installation. |
Pro Tip: The "Guts" Matter Most
Often, it's not the distributor housing or gear that fails, but the Ignition Control Module (ICM) or pickup coil inside. Some mechanics prefer to buy a budget-friendly complete distributor and immediately install a high-quality, name-brand ICM and pickup coil into it. This can sometimes be more cost-effective than buying a high-end distributor assembly.
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the distributor?
Yes, a 9/16" distributor wrench is highly recommended. It has a specific angle that makes it much easier to reach the hold-down clamp bolt at the back of the engine.
Do I have to set the ignition timing after replacing it?
Yes, this is a critical step. You must use a timing light to set the base timing to 0 degrees Top Dead Center (TDC). To do this, you first have to disconnect the electronic spark timing wire, which is a single tan wire with a black stripe located near the firewall. 🎬 See how to properly disconnect the wire and set timing. Failure to set the timing correctly will result in poor performance and potential engine damage.
Can I just replace the cap and rotor?
If your only issue is a worn cap or rotor (visible cracks, carbon tracking, or corrosion), then yes, you can replace just those parts. However, if you have a no-start or intermittent stalling issue, the problem is more likely the internal pickup coil or ignition module, which requires removing the whole distributor to service.
What is the most common mistake when installing a distributor?

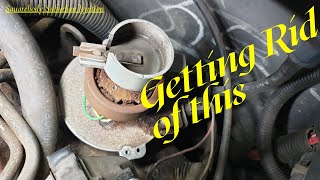

The most common mistake is not getting the engine to Top Dead Center (TDC) on the compression stroke for cylinder #1 before removing the old distributor. The second is failing to properly align the oil pump driveshaft. Before you pull the old unit out, mark the position of the rotor and the distributor housing relative to the engine. 🎬 Watch this step-by-step walkthrough of a V3500 distributor replacement. This gives you a reference to get the new one installed correctly.
Helpful Videos
Technical Specifications
Small Cap, Computer Controlled HEI style with 2-wire and 4-wire connectors for Throttle Body Injection (TBI) engines. Drives the oil pump via a steel gear.
