Dodge D250 Mechanical Fuel Lift Pump: A Guide for 1989-1993 Cummins Owners
Hard starting and low power in your 1st Gen Cummins could be a failing mechanical fuel pump.
- The mechanical fuel pump is also called a 'lift pump' and is a common failure point on 1st Gen Cummins engines.
- Hard starting and loss of power when towing are the most common symptoms of a failing lift pump.
- Replacement is a simple DIY job that can be done in under two hours with basic tools.
- Aftermarket pumps from brands like Delphi are an affordable and effective solution for stock trucks.
Is Your 1st Gen Cummins Fuel Pump Failing?
The mechanical lift pump on the 1989-1993 Dodge D250 is a common wear item. When it starts to fail, it usually doesn't die suddenly. Instead, it gives you signs that it's getting weak. The most common issue is a worn internal diaphragm or check valve, which allows fuel to drain back to the tank and lets air into the fuel lines. This leads to problems that can seem serious but are often just caused by this simple, easy-to-replace part.
Common Failure Symptoms
If your truck is showing these signs, your lift pump is the first part to check:
- Hard Starts or Long Cranking: This is the number one symptom. The engine has to crank for a long time before it fires up, especially after sitting overnight. This happens because the pump has lost its prime and needs to pull fuel all the way from the tank again.
- Loss of Power Under Load: Your truck might drive fine around town, but when you tow a trailer, climb a hill, or accelerate hard, it feels weak or sluggish. The failing pump can't supply enough fuel for the engine's demands.
- Engine Starts, Then Stalls: The engine may fire up for a few seconds and then die. This indicates an unstable fuel supply.
- Losing Prime When Parked Uphill: If you park your truck facing uphill and it won't start later, it's a classic sign that the check valve in the lift pump has failed, allowing fuel to drain back into the tank.
- Visible Fuel Weeping: You might see diesel fuel leaking from a small weep hole on the bottom of the pump. This means the internal diaphragm has a hole in it and the pump must be replaced.
A Note on Recalls
There are no major recalls for the mechanical lift pump on these trucks. However, there was a safety recall for the separate, high-pressure VE injection pump on some 1991-1993 models for an issue that could cause a full-throttle failure. It is a different part, but it's good to be aware of your truck's fuel system history.
Choosing the Right Aftermarket Fuel Pump
For a stock or lightly modified truck, a standard aftermarket mechanical lift pump is a reliable and affordable choice. OEM Cummins pumps are available but cost significantly more. Most aftermarket brands will restore factory performance and solve common failure symptoms.

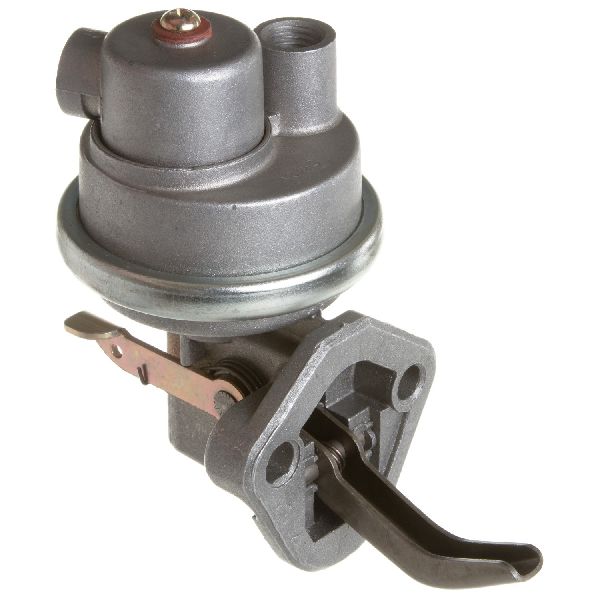

- Good Tier (Delphi): Delphi is a well-known OEM and aftermarket supplier. Owners in forums report good experiences with Delphi lift pumps, considering them a reliable replacement that works well.

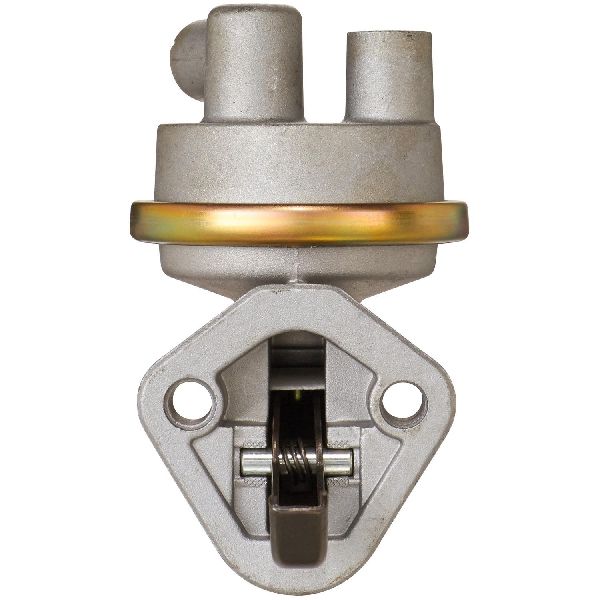

- Standard Tier (Spectra, GMB): Brands like Spectra and GMB offer direct-fit replacements that meet original specifications. While there is less specific owner feedback for these brands on the 1st Gen Cummins, they are established aftermarket manufacturers. The general consensus for many aftermarket parts is that quality can sometimes be inconsistent.
Pro Tip: Check Your Fuel Lines
While you're replacing the pump, it's a great time to inspect your fuel lines. The original rubber lines can become old, cracked, and brittle. A small crack can suck in air, causing the same symptoms as a bad lift pump. Replacing old hoses is cheap insurance against future problems.
Aftermarket Mechanical Fuel Pump Cost (1989-1993 Dodge D250)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Mechanical Fuel Pump | $61 - $99 |
| New OEM (Cummins) Mechanical Fuel Pump | $200 - $230 |
| Shop Labor for Installation | $150 - $300 |
Frequently Asked Questions
Is this a DIY-friendly repair?

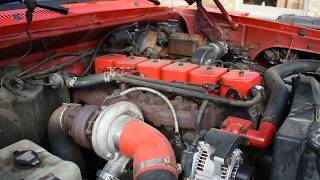

Yes, this is a very DIY-friendly job. Many owners report the replacement is "dead easy." Access is best achieved by removing the driver's side front wheel. 🎬 Watch: Step-by-step guide to replacing a worn lift pump. The pump is held on by two bolts, and there are two fuel line connections. The entire job can usually be done in 1-2 hours with basic hand tools.
🎬 See this walkthrough for a 12V Cummins lift pump install.Do I need special tools to replace the fuel pump?
No special tools are required. You will need basic metric wrenches (like 10mm and 17mm) and a socket set. You will also need a drain pan to catch a small amount of spilled fuel. After installation, you will need to prime the system, which is done by hand using the small plunger on the new pump.
What does 'priming the fuel system' mean?
Priming means removing the air from the fuel lines and filling them with fuel before you start the engine. After installing the new pump, you loosen the top banjo bolt on the fuel filter housing slightly. Then, you pump the small plunger on the side of the new lift pump by hand until you see solid fuel (with no air bubbles) coming out from around the loosened bolt. Once you see fuel, you tighten the bolt and pump a few more times. The truck should then start easily.

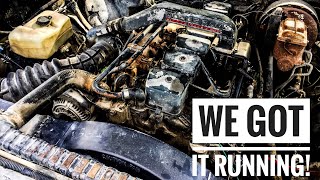

🎬 Watch: How to properly prime and bleed your fuel system.Can I upgrade to a better fuel pump?
Yes, many owners with modified engines upgrade to high-performance electric lift pump systems like FASS or AirDog. These systems provide higher, more consistent fuel pressure, which is important for engines with performance upgrades. For a stock truck, a standard mechanical pump is perfectly adequate.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3904374 4983584
Camshaft-driven, low-pressure diaphragm pump. Supplies fuel at approximately 7-15 PSI to the VE injection pump.
