A Comprehensive Guide to Universal Joints for the 1989-1993 Dodge W250
Eliminate drivetrain clunks and vibrations by choosing the correct, durable U-joints for your first-generation Dodge W250.
- Prioritize Dana/Spicer brand U-joints for this truck; they are the OEM supplier and offer the best durability.
- Your 4x4 W250 has U-joints in both driveshafts and the front axle shafts; inspect all of them for wear.
- You must measure your old U-joints before ordering, as multiple sizes were used on these trucks.
- Address vibrations or clunking noises immediately to prevent a complete U-joint failure, which can cause loss of control or severe damage.
Symptoms of a Failing Universal Joint
A worn-out U-joint is not just noisy; it's a safety concern. If a U-joint fails completely, the driveshaft can detach, leading to a loss of power and potentially causing significant damage to the underside of your truck. Listen and feel for these common symptoms:
- Clunking Noise: A distinct “clunk” or ringing sound when you shift from park into drive or reverse is a classic sign of a worn U-joint with excessive play.
- Vibration While Driving: A vibration that you can feel through the seat or floor, which often starts at a certain speed (like 40 mph) and gets worse as you accelerate, points to a U-joint that is binding or has play.
- Squeaking or Chirping: A rhythmic squeak that is noticeable at low speeds (under 10 mph) and changes with your speed is often the first sign of a dry, failing U-joint bearing. 🎬 Watch: How to diagnose and replace failing universal joints
Choosing the Right Aftermarket U-Joint
When it comes to a heavy-duty truck like the W250, the quality of your replacement U-joint matters. Forum discussions among owners consistently show that choosing a premium part saves time and money by preventing premature failures. Aftermarket brands can be grouped into tiers based on quality and owner feedback.
Tier 1: OEM Grade / Premium
Dana Spicer Chassis: Dana was the original equipment manufacturer (OEM) for the axles and driveshafts on these trucks. For this reason, Spicer U-joints are widely considered the best choice for durability and fit. Many owners specifically recommend the non-greasable "Spicer Life" series, which are sealed like the originals and are considered stronger because the cross body is solid, not hollowed out for grease channels.
Tier 2: Quality Aftermarket
Moog & SKF: These brands are well-known in the aftermarket and are generally considered reliable replacements. They often feature a greasable design, which allows you to flush out contaminants and add fresh grease during maintenance. While many users have good experiences, some forum members note that Moog's quality can be inconsistent, so it's best to ensure you are getting their premium or "Super Strength" line.
Tier 3: Economy Brands
GMB, Crown Automotive, and various store brands: These brands offer a budget-friendly option for getting your truck back on the road. However, owners of these heavy-duty Dodge trucks have reported significantly shorter lifespans with cheaper, often Chinese-made, U-joints, sometimes leading to failure in as little as a year or two. For a work truck, investing in a higher-tier joint is often the more cost-effective choice in the long run.
Common Ordering Mistake: Know Your U-Joint Size!
The 1989-1993 W250 used several different U-joint sizes depending on the year, engine, and specific driveshaft (front or rear). There is no single part number that fits all applications. Before ordering, you must measure the bearing cap diameter and the overall width of your existing U-joint to ensure you get the correct part. Failure to do so is the most common reason for getting the wrong part.
Estimated Costs for Universal Joint Replacement
| Part | Estimated Cost |
|---|---|
| New Aftermarket Universal Joint | $17.14 - $120.06 (per joint) |
| Shop Labor | $150 - $300 (per driveshaft) |
Pro Tip: Greasable vs. Non-Greasable
Non-greasable (sealed) U-joints, like the OEM Spicer parts, are generally stronger because the cross is solid steel. Greasable joints are slightly weaker due to being drilled for grease passages but have the advantage of being serviceable. For maximum strength and longevity in a high-torque application like a Cummins-powered W250, many experts and owners prefer the non-greasable Spicer joints.
Frequently Asked Questions
How many U-joints does my W250 have?

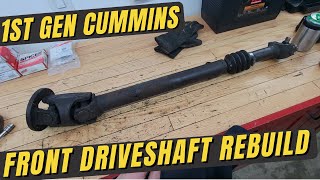

Your 4x4 W250 has multiple U-joints. You will have two on the front axle shafts (one at each steering knuckle). You will also have at least two on the rear driveshaft and two or three on the front driveshaft (some front shafts use a double-cardan joint near the transfer case which contains two U-joints). 🎬 Watch: Step-by-step guide to rebuilding a front driveshaft Long-wheelbase models may also have a two-piece rear driveshaft with a center support bearing and a third U-joint. It is best to count them before ordering.
🎬 See this walkthrough for replacing center bearings and U-jointsCan I replace just one bad U-joint?
Yes, but it is often recommended to replace all the U-joints on a single driveshaft at the same time. If one has failed due to age and mileage, the others are likely near the end of their service life as well. This saves you from having to remove the driveshaft again in the near future.
What tools are needed for the replacement?
Replacing U-joints requires some heavy-duty tools. You will need sockets and wrenches to remove the driveshaft. To press the old joints out and the new ones in, you will need a large bench vise, a ball joint press, or a hydraulic shop press. Using a hammer and sockets is possible but increases the risk of damaging the driveshaft yoke or the new U-joint caps.
Should I replace the driveshaft straps or bolts?
Yes. It is highly recommended to use new straps and bolts when you reinstall the driveshaft. The original hardware can stretch and fatigue over time, and new hardware is inexpensive insurance against the yoke coming loose.
Helpful Videos
Technical Specifications
Common U-joint series used include 1350 and 1410. The front axle shafts in the Dana 60 axle typically use a Spicer SPL55-3X or equivalent. Measurement of existing parts is required for positive identification.
