A Home Mechanic's Guide to the 1989-1993 Pontiac Firebird Engine Timing Set
Learn how to spot a failing timing chain and choose the right replacement for your Firebird's V6 or V8 engine.
- The engines in 1989-1993 Firebirds are interference engines; a broken timing chain will likely cause catastrophic engine failure.
- A rattling noise from the front of the engine is a critical warning sign that the timing chain is loose and needs immediate attention.
- For a reliable replacement, consider a heavy-duty set from a reputable brand like Melling, which is well-regarded in owner communities.
- On high-mileage vehicles (over 100,000 miles), replacing the timing set is a wise preventative maintenance job to avoid future engine damage.
Is Your Firebird's Timing Chain Failing?
A timing chain is a wear item. Over many miles, the chain stretches and the gear teeth wear down. For the 1989-1993 Pontiac Firebird, which can be equipped with a 3.1L V6, 5.0L V8, or 5.7L V8, the symptoms of a worn timing set are consistent and should not be ignored.
Key Symptoms of a Bad Timing Set
- Engine Rattle: The most common sign is a rattling or scraping noise from the front of the engine, especially noticeable at idle or during startup. This is the sound of the loose chain slapping against the inside of the timing cover. 🎬 Watch: See how a loose chain sounds and looks during replacement.
- Poor Engine Performance: A stretched chain can slip, throwing off your engine's timing. This can cause the engine to run rough, misfire, lose power, or hesitate during acceleration.
- Check Engine Light: While these cars use an older diagnostic system (OBD-I), erratic timing can sometimes trigger a check engine light. A loose chain can even cause false knock sensor readings.
- Metal Shavings in Oil: During an oil change, you might see tiny metallic particles in the drained oil. This can be a sign that the chain and sprockets are grinding themselves away.
Choosing the Right Aftermarket Timing Set
Since these vehicles are classics, new OEM timing sets are generally not available. The aftermarket offers a wide selection of new parts that meet or exceed original quality. Some original GM timing gears used nylon-coated teeth that can become brittle and break; most aftermarket sets are an upgrade to all-metal construction. Your choice depends on your budget and performance goals.
Brand Quality Tiers
- Good (Standard Replacement): Brands like INA and standard-level Cloyes kits offer a reliable, budget-friendly option for a daily driver or stock restoration. INA is a known OEM supplier for many automakers, and their quality is generally well-regarded. These kits are a solid choice for the V6 and standard V8 engines. 🎬 Watch this detailed guide for installing a timing set on the 3.1L V6.
- Better (Heavy-Duty): For a small price increase, brands like Melling offer excellent quality and are highly recommended on owner forums. They are known for tight tolerances and durability. Higher-end Cloyes sets also fall into this category. These are a great all-around choice for any Firebird engine, providing extra peace of mind.
- Best (Performance): For high-performance builds or V8s with engine modifications, a "double roller" timing set is the top choice. These sets have two rows of chain rollers, making them stronger and more stable at high RPMs. Brands like Melling, Cloyes, and others offer robust double roller kits for the 5.0L and 5.7L V8s.
Pro Tip: While you are replacing the timing set, it is highly recommended to also replace the water pump, timing cover gasket, and front crankshaft seal. Accessing these parts requires removing the same components, so you will save significant time and labor by doing it all at once.
What Does a Timing Set Replacement Cost?
The cost can be broken down into parts and labor. While the parts are affordable, the job is labor-intensive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $35 - $170 |
| Shop Labor (5-6 hours) | $500 - $900 |
| Total Estimated Cost | $535 - $1,070 |
Cost estimates are for reference only and can vary based on location, shop rates, and the specific parts chosen.
Frequently Asked Questions
Are there any recalls for the Firebird timing set?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls for the engine timing set on 1989-1993 Pontiac Firebirds.
Is this a DIY job?
For an experienced home mechanic, yes. The job is time-consuming but straightforward. It requires draining the coolant and removing the radiator, serpentine belt, water pump, and harmonic balancer. You will need a harmonic balancer puller tool. 🎬 Follow this step-by-step DIY video to install your new timing kit. For a novice, this job is likely too complex and should be left to a professional.
Should I get a standard or double roller chain for my V8?
For a stock or lightly modified 5.0L or 5.7L V8, a quality standard or heavy-duty single roller set from a brand like Melling is perfectly adequate. If you are building the engine for significant power, have a high-lift camshaft, or plan on high-RPM use, the added strength of a double roller chain is a worthwhile investment.
How long does a new timing chain last?
A quality aftermarket timing set should last for many years and tens of thousands of miles, often 100,000 miles or more, with proper engine maintenance. The most important factor for longevity is performing regular oil changes with quality oil.
Helpful Videos
Technical Specifications

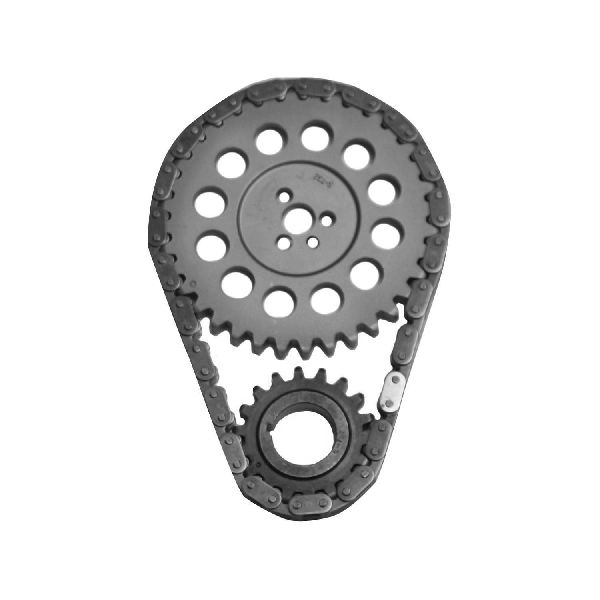

Specifications vary depending on the engine (3.1L V6, 5.0L V8, 5.7L V8). Sets consist of a timing chain, a camshaft sprocket, and a crankshaft sprocket. Performance V8 kits are often available as a 'double roller' chain design for increased strength.
