Audi 100 Windshield Washer Pump Replacement Guide (1989-1994)
Everything you need to know to fix your Audi 100's washer system and get a clear view of the road again.
- Always check the fuse and fluid level before buying a new pump.
- Replacement is a simple DIY job, accessible through the fender liner.
- Aftermarket pumps from brands like Vemo, Trico, and URO are cost-effective alternatives to OEM.
- Be careful not to break the plastic spout on the old pump during removal.
Is Your Windshield Washer Pump Failing?
When your washer pump starts to go, the signs are usually obvious. Before assuming the pump is bad, always check two things first: make sure the washer fluid reservoir is full and check the fuse for the washer system. If those are fine, you likely have a pump problem.
Common Symptoms:
- Pump Motor is Silent: You pull the lever, the wipers move, but you don't hear the familiar buzz or hum of the washer pump motor. This points to a dead pump or an electrical issue.
- No Fluid Spray: The most common symptom. The wipers activate, but no washer fluid sprays onto the glass.
- Weak or Sputtering Spray: If the spray is weak or inconsistent, the pump's internal impeller might be worn out or the system could have a clog.
- Leaking Fluid: Puddles of blue, green, or orange fluid under the front of your car can indicate a cracked pump housing or a bad seal where the pump enters the reservoir.
Pro Tip: Check for Clogs First
Sometimes, debris can clog the small filter at the pump's intake or the nozzles on the hood. Disconnect the hose from the pump to see if fluid comes out. If it does, your clog is further down the line. If not, the pump is the likely culprit.
Choosing the Right Aftermarket Pump
For a vehicle like the 1989-1994 Audi 100, you don't need to pay high dealer prices for an OEM part. Aftermarket pumps are affordable and get the job done. The key difference between brands is often in the quality of materials and manufacturing tolerances.
Aftermarket Brand Tiers

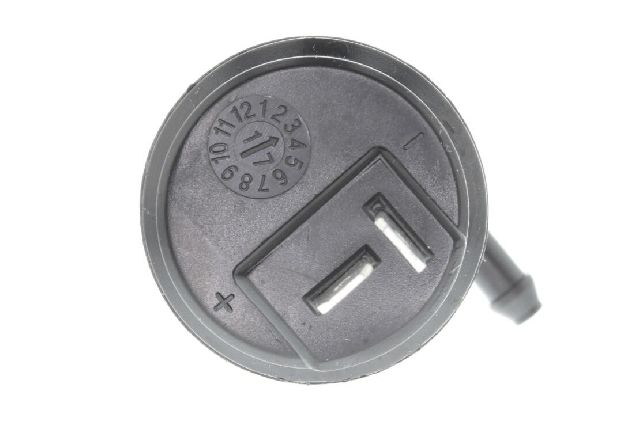

- Vemo: Often considered a higher-quality aftermarket brand. Vemo parts can sometimes be original equipment suppliers for German brands, and they offer a good balance of price and reliability.
- Trico: A well-known brand, famous for wiper blades, that also produces washer pumps. Trico is a solid, standard replacement choice known for easy installation.

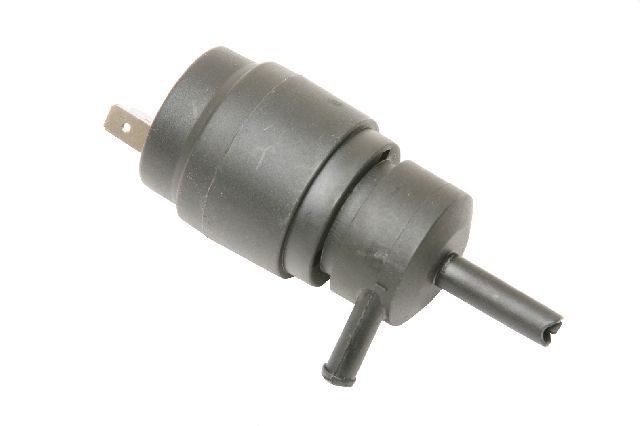

- URO Parts: URO Parts is a budget-friendly option. While their quality has improved over the years, they are generally considered an economy choice. For a simple part like a washer pump, it can be a cost-effective solution, though longevity may not match premium brands.
Cost of Replacing Your Audi 100 Washer Pump
Replacing the washer pump is one of the more affordable repairs you can make. The parts are inexpensive, and if you do it yourself, you can save a lot on labor.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Pump | $11 - $36 |
| Shop Labor | $100 - $146 |
| Total Professional Replacement | $111 - $182 |
Note: Costs are estimates. Shop labor can vary by location. The total professional replacement cost is based on aftermarket part prices.
Is This a DIY Job?
Yes, absolutely. For most owners with basic tools, this is a straightforward job that takes less than an hour. The pump is located on the side of the washer fluid reservoir. Access is typically gained by turning the front wheel and removing a few screws from the plastic fender liner. The pump is just press-fit into the reservoir with a rubber grommet.
Frequently Asked Questions
Is the front and rear washer pump the same on an Audi 100 Avant?
Often, no. If your vehicle has a rear washer, it may use a separate, dedicated pump. It is crucial to order the correct pump for the front or rear position, as they can differ in design and outlet configuration.
Do I need to drain the washer fluid to replace the pump?
Yes. The pump is located at the bottom of the reservoir. When you pull the old pump out, all the fluid will drain out. Have a bucket ready to catch it. This is a good time to clean any sediment out of the bottom of your tank.
My new pump works, but the spray is still weak. What's wrong?
If the new pump is running, the problem is likely a blockage. Check for kinked hoses. If the hoses are clear, try cleaning the spray nozzles on the hood. You can often clear them by poking a small pin into the nozzle openings. Soaking the nozzles in a calcium-dissolving cleaner can also help.
Are there any recalls for the Audi 100 washer pump?
No, there are no specific recalls from Audi or NHTSA for the windshield washer pump on the 1989-1994 Audi 100.
Technical Specifications
OEM Part Numbers: 4A0955651A 4A0955651B
Typically a 12V, dual-outlet pump that press-fits into the washer reservoir with a rubber grommet. Some models may use single-outlet pumps, especially if dedicated pumps are used for rear windows or headlamps.
