A Comprehensive Guide to Universal Joints for the 1989-1994 Dodge B250
Don't let a bad U-joint leave your classic Dodge van stranded; here's how to choose the right replacement.
- Listen for squeaks and clunks; these are early warnings before a dangerous vibration starts.
- For maximum durability and reliability, choose a non-greaseable U-joint from a top-tier brand like Dana Spicer.
- Always replace all U-joints on the driveshaft at the same time to ensure even wear and prevent repeat repairs.
- Inspect your van to see if you have a one-piece or two-piece driveshaft before ordering to ensure you buy the correct number of joints.
Symptoms of a Failing U-Joint on Your B250
A failing U-joint gives several warning signs. Ignoring them can lead to a dangerous situation where the driveshaft detaches from the vehicle. Listen and feel for these common symptoms:
🎬 Watch: A mechanic demonstrates how to identify these failing U-joint sounds.- Squeaking or Chirping Noise: Often the first sign is a rhythmic squeak at low speeds (under 10 mph) that sounds like a bird chirping. This is caused by dry, worn-out bearings inside the U-joint.
- Clunking Sound: A loud “clunk” or ringing noise when you shift from Park into Drive or Reverse is a classic symptom. This indicates excessive play in the joint.
- Vibration: A vibration that you can feel through the floor or seat is a serious sign. This vibration often starts at a certain speed and gets worse as you go faster, indicating the driveshaft is out of balance due to the worn joint.
- Visible Grease or Rust: Look under your van at the driveshaft. If you see grease splattered around the U-joint, it means the seals have failed. You may also see rust dust around the bearing caps.
How to Choose the Right Aftermarket U-Joint
For a vehicle like the 1989-1994 B250, original Mopar parts are very hard to find and often expensive. Aftermarket parts offer excellent quality and value. The main choice you'll make is between greaseable and non-greaseable joints.
Greaseable vs. Non-Greaseable (Sealed) U-Joints
- Greaseable U-Joints: These have a small fitting (a zerk) that allows you to add new grease periodically. This maintenance pushes out old grease and contaminants. They are a good choice if you stick to a regular maintenance schedule. Failure to grease them is a top reason they fail.
- Non-Greaseable U-Joints: These are sealed from the factory and require no maintenance. Many mechanics prefer them because the cross body is solid steel, making them stronger than drilled-out greaseable joints. They also tend to have better seals to keep dirt and water out from the start.
Aftermarket Brand Tiers for Your B250
Not all aftermarket brands are created equal. Based on owner experiences and mechanic feedback, here’s a breakdown of the available brands:
- Top Tier (OEM Quality or Better): Dana Spicer Chassis is widely considered the original equipment manufacturer and the gold standard. If you want the best fit and longest life, Spicer is the top choice. Their non-greaseable joints are highly recommended for durability.
- Mid Tier (Reliable Aftermarket): SKF and GMB are solid mid-tier choices. They are known for producing quality bearings and drivetrain components that meet or exceed OEM standards. They offer a good balance of price and performance.
- Economy/Mixed Reputation: Moog has a strong brand name but a mixed reputation for U-joints in recent years. While some have no issues, many forum users report premature failures. Crown Automotive is well-known in the Jeep world and offers parts that claim OE fit, but has less of a track record for Dodge vans. These can be a budget-friendly option, but may not have the longevity of top-tier brands.
- Specialty: Yukon Gear & Axle is known for performance and heavy-duty applications, often a step up for vehicles that are heavily loaded or modified.
U-Joint Replacement Cost for 1989-1994 Dodge B250
The cost depends on whether you do the job yourself or hire a professional. Your van has at least two U-joints on the main driveshaft. It is highly recommended to replace them all at the same time.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (per part) | $17.14 - $107.89 |
| Shop Labor Cost | $200 - $450 |
| Total Professional Replacement | $250 - $650+ |
Frequently Asked Questions
How many U-joints does my Dodge B250 have?
Most 1989-1994 Dodge B250s have a one-piece driveshaft with two U-joints: one at the transmission and one at the rear axle. However, some long-wheelbase models may have a two-piece driveshaft with a center support bearing, which would have three U-joints in total. 🎬 See this guide on replacing U-joints and center bearings on Dodge trucks. It is critical to inspect your vehicle to confirm before ordering parts.
Can I replace a U-joint myself?

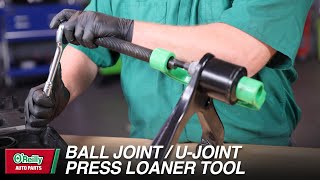

Yes, this is a DIY-feasible job for someone with mechanical experience. However, it requires tools to press the old joint out and the new one in. This can be done with a heavy-duty bench vise and a set of sockets, or a dedicated U-joint press tool. 🎬 Watch: How to use a press to swap out your U-joints. It can be difficult if the parts are rusted together.
Should I replace just the bad U-joint?
No. It is best practice to replace all the U-joints on the driveshaft at the same time. They have all experienced the same amount of wear and stress. If one has failed, the others are likely not far behind. Replacing them all at once saves you from having to do the same job again in the near future.
Do I need to get my driveshaft balanced after replacing the U-joints?
For a standard U-joint replacement, balancing is not usually required if you carefully mark the driveshaft's orientation before removal and reinstall it the same way. However, if you are chasing a persistent vibration problem, having the driveshaft professionally balanced after installing new joints is a good idea.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4720822
The 1989-1994 Dodge B250 uses external snap ring style U-joints. Common series sizes include 1310, 1330, and 1410, with some models using hybrid or combination joints. It is essential to measure your old joints or verify by application to ensure you purchase the correct size.
