Isuzu Pickup 1989-1995 Engine Oil Pressure Switch and Sender Guide
Don't let a faulty oil pressure switch turn a small fix into a major engine repair on your classic pickup.
- First, determine if your truck has a simple warning light (needs a 'switch') or a pressure gauge (needs a 'sending unit').
- Never ignore an oil pressure warning; it could signal a problem that can destroy your engine.
- Replacement is DIY-friendly, typically taking less than 30 minutes with a special socket.
- For this critical, low-cost part, choosing a reputable aftermarket brand like Standard Ignition or Walker Products is a wise investment in reliability.
Switch or Sending Unit? Know What Your Truck Needs
Before buying a replacement part, you must know what your Isuzu Pickup has. Look at your dashboard. Do you have a simple oil can warning light, or do you have a gauge with a needle that shows the pressure reading?

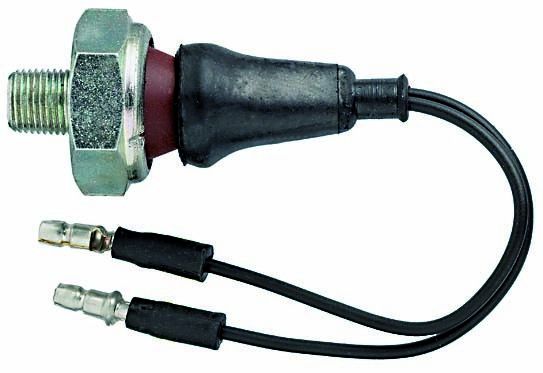

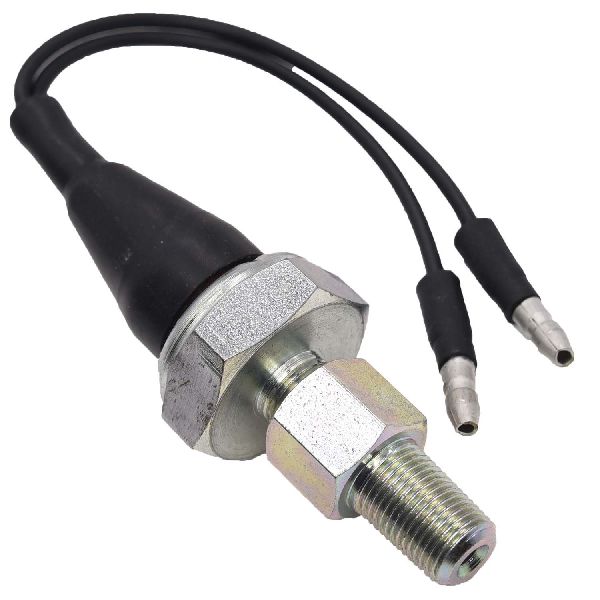

- Warning Light Only: Your truck uses an Engine Oil Pressure Switch. This is a simple on/off switch that triggers the light when pressure is too low.
- Pressure Gauge: Your truck uses an Engine Oil Pressure Sending Unit (or Sender). This is a more complex variable resistor that tells the gauge how much pressure to display.
Pro Tip: Some models may have both a sender for the gauge and a separate switch. It's always best to visually inspect the part on your engine before ordering. It is typically screwed into the side of the engine block, often near the oil filter.
Signs of a Failing Oil Pressure Switch
A bad oil pressure switch can either cause panic when there's no problem or, worse, provide no warning when there is one. Here are the common symptoms of failure:
- Oil Light Flashing or Staying On: The most obvious sign is the oil pressure light on your dash illuminating, especially if you've checked the oil level and it's full.
- Gauge Reads Zero or Acts Erratically: If you have a pressure gauge, a faulty sender can cause the needle to read zero, max out, or jump around wildly.
- Oil Leaks: The switch or sender itself can develop leaks over time. The seal can fail, causing oil to seep from the body of the sensor or its electrical connector.
Do Not Ignore the Oil Light
Never assume the warning light is just a bad sensor. If the oil light comes on, especially if you hear any new engine noises like ticking, knocking, or grinding, stop the vehicle immediately and check your oil level. Driving with low oil pressure can destroy your engine in minutes.
Choosing the Right Aftermarket Part
For a vehicle like the 1989-1995 Isuzu Pickup, aftermarket parts are often the only option. OEM parts can be difficult to find. Fortunately, brands like Standard Ignition and Walker Products are well-known manufacturers of quality replacement engine sensors.
- Premium Aftermarket (Standard Ignition, Walker Products): These brands engineer their parts to meet or exceed original specifications. They often use durable materials like high-temperature diaphragms to resist leaks and ensure accurate readings. For a critical part that is relatively inexpensive and labor-intensive to access, choosing a quality brand is a smart investment.
- Value-Priced Brands (Facet, Global Parts): These brands offer a more budget-friendly option. While they may meet the basic requirements, their long-term durability might not match that of premium brands. Given the low cost of even premium switches, spending a few extra dollars for better reliability is often recommended.
Replacement Cost
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch/Sender | $7.85 - $85.88 |
| Shop Labor | $50 - $120 |
| Total Professional Replacement | $58 - $206 |
Frequently Asked Questions
Where is the oil pressure switch located on my Isuzu Pickup?
The oil pressure switch or sender is almost always located on the engine block, typically near the oil filter housing. You will be looking for a small, can-shaped sensor with an electrical connector on the end, screwed directly into the engine.
Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job. It usually requires a special deep socket designed for oil pressure switches. The most difficult part is often just reaching the sensor. You do not need to drain the engine oil, but expect a small amount to spill out when you remove the old sensor.
My oil light is on, but my oil level is full. What should I do?
This is a classic symptom of a failed oil pressure switch. However, it can also indicate a more serious problem like a failing oil pump or clogged oil passages. The safest first step is to stop the engine and verify the issue. A mechanic can test the actual oil pressure with a mechanical gauge to confirm if the problem is the switch or internal to the engine.
Are there any recalls for the oil pressure switch on the 1989-1995 Isuzu Pickup?
Searches of the NHTSA database did not find any specific recalls for the engine oil pressure switch on the 1989-1995 Isuzu Pickup. Any issues would be considered general maintenance or repair items.
Technical Specifications
OEM Part Numbers: 8942321152 8101376470 8942321151 8944456451 8944456452
The primary distinction is whether the part is a simple on/off switch for a warning light or a variable resistor sending unit for a pressure gauge. The correct part must be selected based on the vehicle's instrument cluster. The switch is typically located on the engine block near the oil filter.
