Mazda RX-7 Electric Fuel Pump: A Guide for the 1989-1995 Models
Keep your rotary engine properly fed by understanding the signs of a failing fuel pump and how to choose the right replacement.
- A failing fuel pump will cause hard starting, hesitation, and stalling.
- The original wiring is a known weak point; check for voltage drop at the pump and consider a wiring upgrade for reliability.
- Always replace the fuel filter and the tank gasket with the pump to ensure longevity and prevent leaks.
- For a stock car, a standard replacement like Delphi is adequate, but the RX-7 community strongly favors higher-quality Denso or performance pumps like Walbro for long-term reliability.
Signs of a Failing Fuel Pump in Your RX-7
A weak or failing fuel pump can cause problems that are sometimes mistaken for ignition issues. If your RX-7 is experiencing any of these symptoms, your fuel pump might be the culprit.
- Hard Starting or No Start: The most common sign is an engine that cranks but refuses to start. You may notice it takes longer than usual for the engine to fire up, especially after sitting overnight.
- Engine Hesitation or Stalling: Under acceleration, the car may feel like it's "hitting a brick wall." It can also stall unexpectedly, particularly at lower speeds.
- Rough or Bouncing Idle: A failing pump can cause the idle to fluctuate wildly, sometimes between 0 and 500 RPM, making the car lurch.
- Loss of Power: You may feel a general lack of power, and the car might run lean.
- No Priming Sound: When you turn the key to the 'ON' position (without starting), you should hear a faint hum or whine from the rear of the car for about two seconds. If it's silent, the pump may have failed completely.
Pro Tip: The Diagnostic Port Test
You can force the fuel pump to run for a test. Locate the small black diagnostic connector in the engine bay, usually near the driver's side shock tower. Use a small wire to jump the 'F/P' and 'GND' terminals. With the key in the 'ON' position, you should clearly hear the fuel pump running. If you hear nothing, the pump or its wiring is likely faulty.
Choosing the Right Aftermarket Fuel Pump
The original fuel pumps in these cars are old, and the wiring can be too. Many owners, even on stock engines, choose to upgrade to a higher-flow pump for reliability and to support future modifications. When choosing a replacement, it's important to understand the different tiers of quality.
Performance Brands (Not in Standard Inventory)
For context, the RX-7 community heavily favors high-flow pumps like the Walbro 255 LPH (now made by TI Automotive) or the Aeromotive 340 LPH. These pumps provide more fuel than the stock engine needs, offering a large safety margin. However, they often require wiring upgrades and may overwhelm the stock fuel pressure regulator, making an adjustable one necessary.
Standard Replacement Brands
For a direct, stock-level replacement, you have several options. The original OEM supplier was typically Denso, which is known for being quiet and reliable.
- Delphi: Delphi is a well-known aftermarket brand. In some cases, their parts are identical to the original equipment. However, owner reviews can be very mixed, with some reporting premature failures in other applications. Given the sensitivity of the rotary engine, Delphi is best considered a standard or economy choice.
- Holley: Holley pumps are generally high-quality but are almost always external pumps designed for carbureted applications. They are not a direct-fit, in-tank replacement for the 1989-1995 EFI RX-7 and should be avoided for a standard repair.

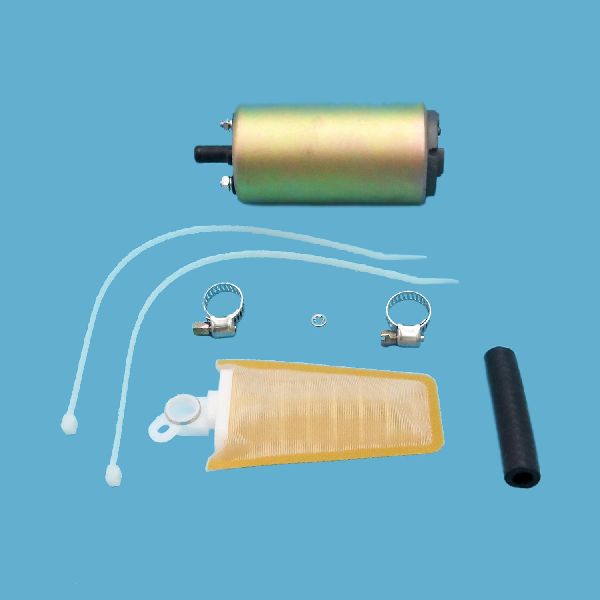

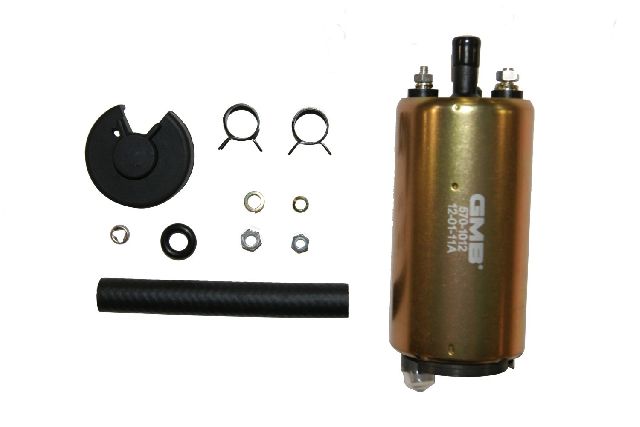

- GMB & US Motor Works: These brands fall into the general aftermarket category. While they offer a cost-effective solution, there is very little specific feedback from RX-7 owners about their long-term reliability. They are a budget-friendly option if getting the car running is the only priority.
- AutoBest: Similar to GMB and US Motor Works, AutoBest is a budget-friendly aftermarket brand without a strong track record specifically within the RX-7 community.
A Note on Wiring
The wiring on the FC and FD RX-7 is known to degrade over time, causing a voltage drop at the fuel pump. A pump receiving 10 volts instead of 12-14 volts will have significantly reduced output. Regardless of which pump you choose, it is highly recommended to check the voltage at the pump connector and consider running a new, thicker wire with a relay directly from the battery to ensure consistent performance.
Estimated Replacement Costs
The cost to replace your fuel pump will vary based on the part you choose and whether you do the work yourself.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $48.54 - $162.17 |
| New OEM (Denso) | $200 - $300+ |
| Shop Labor | $200 - $350 |
Frequently Asked Questions
Do I need to replace the fuel filter at the same time?
Yes. It is critical to replace your fuel filter when you install a new fuel pump. A clogged filter can restrict flow, putting a strain on the new pump and causing it to fail prematurely. It's a cheap and essential part of the job.
Is replacing the RX-7 fuel pump a DIY job?
Yes, for a mechanically inclined owner. The pump is accessed through a panel in the trunk area. However, it involves working with gasoline, which is dangerous. You must disconnect the battery, relieve fuel system pressure, and work in a well-ventilated area away from any sparks or flames. The screws holding the assembly can be stubborn, so be prepared.
Are there any recalls for the 1989-1995 RX-7 fuel pump?
No. While Mazda has issued fuel pump-related recalls for other models like the RX-8 and newer Mazda3/CX-5 cars, there are no active recalls from the NHTSA for the fuel pump on the 1989-1995 RX-7.
What is the difference between an FC and FD fuel pump?
The second-generation (FC, 1989-1992) and third-generation (FD, 1993-1995) RX-7s use different fuel pump assemblies and hangers. While the internal pump motor might be similar in size, the complete unit is not interchangeable. Ensure you are ordering the correct part for your specific model year.
Technical Specifications
In-tank electric fuel pump. The system operates at approximately 36-38 PSI. The physical pump and hanger assembly differ between the FC (1989-1992) and FD (1993-1995) generations.
