Brake Light Switch Guide for 1989-1996 BMW 525i (E34)
Having brake light or cruise control issues on your E34 525i? The brake light switch is the most likely cause.
- A faulty brake light switch is a very common and dangerous failure on the E34 525i.
- Symptoms include no brake lights, lights stuck on, cruise control failure, and a "BRAKE LIGHT CIRCUIT" dash warning.
- A recall was issued for this part; if the original is still in the car, it needs to be replaced.
- Replacement is an easy DIY job, and quality aftermarket brands like Hella or Standard offer excellent value.
Is Your E34 Brake Light Switch Failing?
The brake light switch on the E34 5-Series is a known weak point that fails with age and use. The internal plastic parts and electrical contacts simply wear out. A failure is not just an inconvenience; it's a serious safety hazard. Driving without functioning brake lights is illegal and dramatically increases your risk of being rear-ended.
Key Failure Symptoms
- No Brake Lights: The most dangerous symptom. The switch fails to activate the lights when you press the pedal.
- Brake Lights Stuck On: The switch can get stuck in the 'on' position, confusing other drivers and draining your battery.
- "BRAKE LIGHT CIRCUIT" Warning: Your dashboard's check control panel will display this specific message. This is a clear sign the switch itself has an internal fault.
- Cruise Control Not Working: If the switch is faulty, it may prevent the cruise control from engaging or cause it to shut off unexpectedly.
Recall Information for E34 Models
There was a recall in the mid-1990s for the brake light switch on 1990-1994 BMW 525i models. The original switch could develop a fault causing the brake lights to either stay on permanently or not work at all. If your car has never had the switch replaced, it is highly likely to fail. The replacement parts use an improved contact system to prevent this issue.
Choosing the Right Aftermarket Switch
You don't need to buy a Genuine BMW part from the dealer to fix this problem. Several quality aftermarket brands offer reliable replacements, often made by the same companies that supply BMW. For a simple part like this, an aftermarket switch provides the best value.
| Brand Tier | Brands | Our Assessment |
|---|---|---|
| OEM Supplier / Premium | Hella, Vemo | Hella is a well-known original equipment manufacturer for many German cars. Vemo is also a reputable German brand. These are top-tier choices that meet or exceed original quality. |
| Quality Aftermarket | Standard Ignition, Facet | These are trusted aftermarket brands known for producing reliable replacement parts. They offer a great balance of quality and price and are a solid choice for this repair. |
| Budget-Friendly | URO Parts | URO Parts is a budget-friendly option. While some owners use them for non-critical parts without issue, forum discussions suggest quality can be inconsistent compared to premium brands. For a safety-critical part like a brake light switch, we recommend choosing from the tiers above if your budget allows. |
Installation Tips

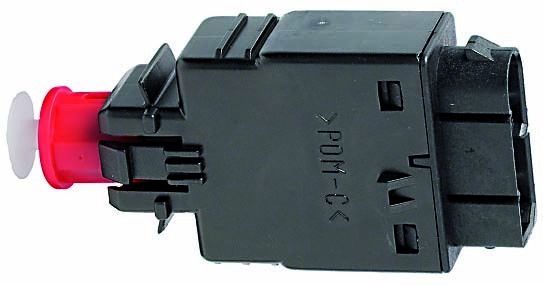

DIY Feasibility: High. Replacing the brake light switch is a straightforward job for a DIYer with basic tools. The main challenge is the awkward position, working in the driver's footwell. The switch is located above the brake pedal, mounted to the pedal bracket. You will need to remove the lower dash panel to get access. 🎬 Watch this step-by-step walkthrough of the switch replacement process. The switch itself is held in by clips and has a red locking tab. It's often easier to break the old switch to remove it than to try and release the clips perfectly.
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the brake light switch?
No special tools are required. You'll need basic tools like a Phillips head screwdriver to remove the lower dash panel and possibly a small pick or flathead screwdriver to help release the old switch. Some people use pliers to break the old switch for easier removal.
My car has a 4-pin switch. Do all these brands fit?

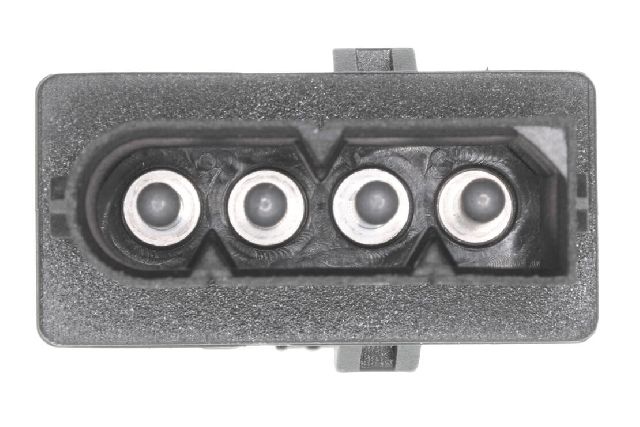

Yes, the 1989-1996 E34 525i uses a 4-pin switch. It's important to confirm you are ordering the correct 4-pin version, as BMW used a 2-pin switch on other models. All the brands listed offer the correct 4-pin replacement for your vehicle.
Why does the "BRAKE LIGHT CIRCUIT" message appear?
This message appears because the switch has two internal circuits. One operates the brake lights, and the other is a self-check circuit that reports to the car's computer. When the computer sees a mismatch between these two circuits (e.g., one closes but the other doesn't), it triggers the warning message. It's a very common problem and almost always means the switch is bad.
🎬 See how to diagnose the brake circuit warning and failure.Can a bad brake light switch cause other warning lights like ABS?
Yes, it's possible. While the most common warning is the specific "BRAKE LIGHT CIRCUIT" message, a faulty brake light switch can sometimes cause ABS or traction control (ASC) lights to illuminate on various cars because these systems rely on the brake signal to function correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 61318360417 61311382385
4-Pin Connector, Clip-in Mounting Type
