Cadillac Eldorado Vehicle Speed Sensor Guide (1989-1996)
Understanding the cause of your Eldorado's erratic speedometer and harsh shifting, and how to choose the right replacement part.
- A bad VSS is the most likely cause of an erratic speedometer and harsh shifting on your Eldorado.
- For maximum reliability, choose an OEM-quality brand like ACDelco or Delphi, as they were original suppliers for GM.
- Before replacing the sensor, always inspect the wiring and connector for damage, as this can mimic sensor failure on an older vehicle.
- Replacement is a DIY-friendly job, typically requiring less than an hour and basic tools.
Is Your Eldorado's Speedometer Acting Up?
A failing Vehicle Speed Sensor (VSS) on the 1989-1996 Cadillac Eldorado causes very specific and noticeable problems. Because the VSS provides data for the speedometer, transmission, and cruise control, its failure will impact all these systems. You will likely experience one or more of the following issues.
🎬 Watch this guide on testing for a failed speed sensor.Choosing the Right Aftermarket Speed Sensor
When replacing the VSS, you have several aftermarket brands to choose from. For a critical electronic part like this, brand quality matters. Sticking with brands that have a history as Original Equipment Manufacturers (OEM) for General Motors is a safe bet for reliability and fit.
Check the Wiring First
On older vehicles like the 1989-1996 Eldorado, wiring and connectors can become brittle or corroded. Before buying a new sensor, inspect the wiring harness and connector leading to the VSS. Sometimes, a simple wiring repair can solve the problem without needing to replace the sensor itself.
🎬 Learn how to tell if your speed sensor is bad.Aftermarket Brand Tiers
| Tier | Brands | General Assessment |
|---|---|---|
| Top Tier / OEM-Grade | ACDelco, Delphi | Both ACDelco and Delphi are or were original equipment suppliers to General Motors. Choosing these brands gives you the highest confidence in fit, function, and longevity, closely matching the part your Eldorado was built with. |
| Mid-Tier / Professional Grade | Standard Ignition (SMP), Walker Products | These are reputable aftermarket brands known for producing reliable electronic components. They offer a good balance of quality and cost, making them a solid choice for most repairs. |
| Value Tier | Dorman, Global Parts | Dorman provides a wide range of aftermarket solutions and is often a budget-friendly option. While they can be a good value, forum discussions sometimes mention inconsistent quality compared to OEM-grade brands. These are best for owners on a tight budget. |
Known Issues, Recalls, and TSBs
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls for the Vehicle Speed Sensor on the 1989-1996 Cadillac Eldorado. However, a safety recall (95V224000, later updated) was issued for 1995-1996 models related to cracking fuel rails, which is an unrelated issue. There are no widespread Technical Service Bulletins (TSBs) for VSS failure on this model, indicating that failures are typically due to normal wear and age rather than a specific manufacturing defect.
Frequently Asked Questions (FAQ)
Where is the Vehicle Speed Sensor located on the 1989-1996 Eldorado?
The VSS is located on the automatic transaxle (transmission). For these front-wheel-drive models, you can typically access it by removing the passenger-side front wheel. The sensor is mounted on the transmission housing, often near where the axle shaft enters. It is usually held in place by a single 10mm bolt.
Can I replace the VSS myself?
Yes, this is a DIY-friendly job for many owners with basic hand tools. The process involves safely raising and supporting the vehicle, removing the passenger-side wheel, locating the sensor on the transmission, disconnecting the electrical connector, and removing a single bolt. The job can typically be completed in under an hour.
🎬 See a step-by-step video on vehicle speed sensor installation.What happens if I don't replace a bad VSS?
Driving with a bad VSS is not recommended. You will experience continued harsh and unpredictable shifting, which can cause premature wear and damage to internal transmission components. Additionally, driving without a working speedometer is unsafe and may be illegal in some areas.
Is the Vehicle Speed Sensor the same as an ABS sensor?
No. The VSS measures transmission output speed for the speedometer and shift control. ABS (Anti-lock Brake System) sensors, also called wheel speed sensors, are located at each wheel and measure individual wheel rotation for the ABS and traction control systems. While they both measure speed, they are different parts with different functions.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10456034 24239526 24206074

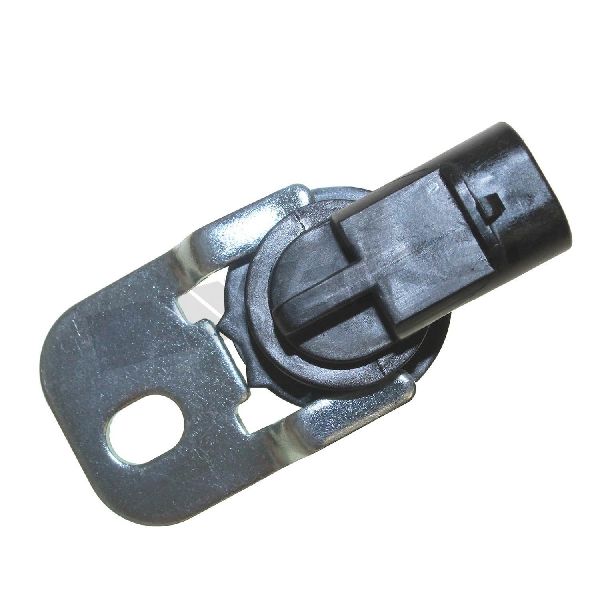

Located on the transaxle housing, typically held by a single 10mm bolt. The sensor uses a 2-pin connector and generates a signal based on the rotation of a reluctor wheel inside the transmission.
