Your Guide to the 1989-1996 Eagle Summit Engine Oil Pressure Switch
That little red oil light on your dash is the most important warning you should never ignore.
- First, confirm if your Summit needs a 'switch' (for a warning light) or a 'sender' (for a gauge) before purchasing.
- Never ignore an oil pressure warning light; always stop and check your oil level immediately.
- For this vehicle, quality aftermarket brands like Hella, Standard Ignition, and Holstein are reliable and affordable.
- Replacement is a fast, easy, and inexpensive DIY job for most owners.
Is Your Eagle Summit's Oil Pressure Switch Failing?
Because the Eagle Summit is a durable, long-lasting car, its sensors can eventually wear out. An oil pressure switch failure can be confusing. It can make you think you have a major engine problem when you don't, or worse, it could fail to warn you when you actually do. Here are the most common signs of a bad switch:
- Flickering or Constant Oil Light: The most common symptom is the oil pressure light on your dash flickering, especially at idle, or staying on even when you know the oil level is correct. This can be caused by a faulty switch sending false signals.
- Incorrect Gauge Reading: If your Summit has an oil pressure gauge instead of just a light, a bad sending unit (a different type of switch) can cause the needle to be stuck at zero, maxed out, or jump around erratically.
- Visible Oil Leak: The switch itself can develop leaks. Over time, the plastic housing can crack or the seal can fail, causing oil to seep out from the sensor itself. You might see oily residue on the switch or drips under the car.
Warning: Switch vs. Sender
Before buying, you MUST know if your Summit has an oil pressure warning light or a physical pressure gauge. A warning light uses a simple on/off "switch." A gauge uses a variable "sending unit" or "sender." They look similar but are not interchangeable. An eBay listing for the 1989-1996 Summit shows options for both "Light" and "Gauge," confirming that both types were used during this period. Installing the wrong one will result in the light or gauge not working at all.
Choosing the Right Aftermarket Switch
For a vehicle of this age, finding an original OEM part is nearly impossible and unnecessary. The aftermarket offers excellent, affordable options. Given the low cost of the part, it's worth choosing a brand with a good reputation for quality control.
Brand Quality Tiers
- Tier 1 - Established Quality (Hella, Standard Ignition): These brands are well-known in the industry for producing parts that meet or exceed OEM standards. Hella is a German company known for precision, while Standard Ignition (SMP) manufactures many of its parts in the US and has a long history of reliability. For peace of mind, these are excellent choices.
- Tier 2 - High-Value (Holstein): Holstein positions itself as an OE-quality manufacturer at a more competitive price. They claim a very low failure rate (under 1%) and offer a strong 3-year/36,000-mile warranty, making them a compelling value option.
- Tier 3 - Standard Replacement (Facet, Global Parts, Rostra Powertrain): These brands provide functional, budget-friendly replacements that will get the job done. Facet, for example, promotes its testing and design process and offers a good warranty. They are reliable choices for the price point.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Switch/Sender | $7.46 - $13.35 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $57 - $114 |
Pro Tip: Check Your Oil First!
If your oil light comes on, always check your oil level with the dipstick immediately. If the level is low, the light is doing its job. If the oil level is full but the light is still on (and you don't hear any loud engine noises like knocking or ticking), the problem is very likely just the inexpensive switch.
Frequently Asked Questions
Can I drive my Eagle Summit with the oil pressure light on?
No. You should pull over and shut off the engine as soon as it is safe to do so. The light indicates either a bad sensor or a true lack of oil pressure. Driving without oil pressure can destroy your engine in minutes. It is not worth the risk.
Is replacing the oil pressure switch a DIY job?
Yes, for most home mechanics this is a very easy job. The switch is typically located on the engine block near the oil filter, making it accessible from under the car. It requires basic tools, like a socket wrench, and takes less than an hour.
Why are the aftermarket parts so cheap? Is the quality bad?
The part is inexpensive because it is a very simple switch with only a few components. Reputable aftermarket brands like Hella, Standard, and Holstein produce high-quality sensors that are reliable and affordable. The low price does not necessarily mean low quality for this specific part.
Were there any recalls for the Eagle Summit oil pressure switch?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically related to the engine oil pressure switch for the 1989-1996 Eagle Summit.
Technical Specifications

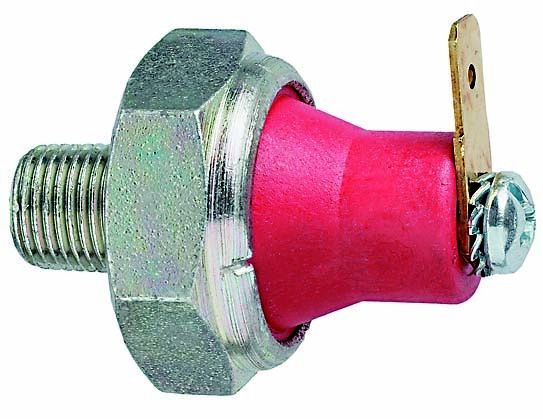

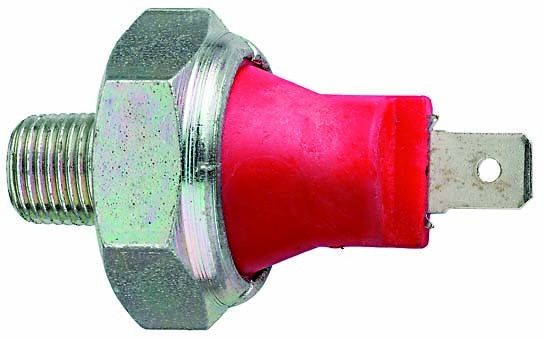

Typically features a single-blade male terminal and a threaded body for engine block installation.
